Overview
Overview

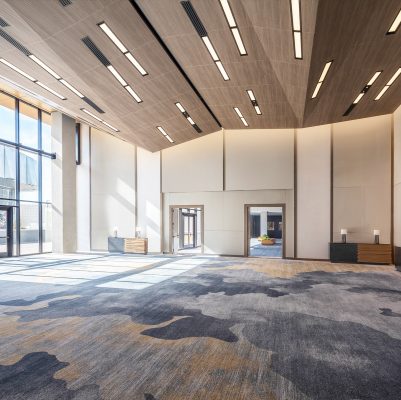

Planx™ linear metal ceilings are precision formed - adding strength and a cleaner appearance. Planx™ opens up wood veneer opportunities to linear wood ceilings that weigh less and are available in an increased range of sizes.
Scale
Create the environment desired without restrictions due to the size and spacing your project requires
Finishes
A virtually unlimited spectrum of metal and painted finishes are available to create your space.
Sustainability
Our ceilings are free of the urea formaldehyde found in particle board cores.
Finishes
Finishes
Raise the limits on ceiling design to change the atmosphere of a room, bringing movement and emotion to your ceiling.
Saranté®
S-11 Créme Ovang Saranté
S-21 Blond Teak Saranté
S-31 Golden Oak Saranté
S-12N Valley Maple Saranté
S-32 CP Maple Saranté
S-33N2 Honey Anigre Saranté
S-23N Golden Birch Saranté
S-13 Red Birch Saranté
S-14N Cinnamon Cherry Saranté
S-22 Oak Line Saranté
S-17 Dark Oak Saranté
S-24N Grey Cedar Saranté
S-25 Natural Ovang Saranté
S-26 Earth Rosewood Saranté
S-27 Forest Walnut Saranté
S-18 Sable Walnut Saranté
S-15 Blond Pear Saranté
S-16N Tan Sawn Oak Saranté
S-34 Cherry Anigre Saranté
S-36N European Cherry Saranté
S-37 Dark Jatoba Saranté
S-38 Natural Walnut Saranté
Metal
Kryolite™
Grau™
Sateen™
Paint
Silver Standard™
Blanco Mat®
Flat White
Perforations
Perforations
Partí™ parametric perforations create a distinctive, cohesive design pattern with multiple shapes and sizes to create unique and inspiring projects
Big Concepts
Partí™ is a one-stop solution for taking the BIG IDEA all the way from design through execution through a normalization process that achieves the designer’s vision while balancing economic and aesthetic demands.
Standard perforations
CD04004 (SD-6) 4.4% Open Area
CD05006 (SD-2) 6% Open Area
CD06310 (SD-7) 10% Open Area
CD09410 (SD-11) 10% Open Area
CD12510 (SD-17) 10% Open Area
CD18839 (SD-20/A188C) 39% Open Area
CD37515 (LT-27) 15% Open Area
CD37539 (LT-26) 39% Open Area
CD50039 (LT-33) 39% Open Area
CD62540 (ST-41) 40% Open Area
CE07814 (SD-8) 14% Open Area
CE09420 (SD-10) 20% Open Area
CE125031 (ST-27) 31% Open Area
CE12520 (SD-13) 20% Open Area
CE18820 (SD-14) 20% Open Area
CE37533 (LT-25) 33% Open Area
CE50020 (LT-31) 20% Open Area
CS04002 (SD-5) 2% Open Area
CS05003 (SD-3) 3% Open Area
CS06303 (SD-21) 3% Open Area
CS07814 (SD-9) 14% Open Area
CS09405 (SD-15) 5% Open Area
CS09420 (SD-12) 20% Open Area
CS125031 (ST-26) 31% Open Area
CS12505 (ST-14) 5% Open Area
CS12520 (ST-13) 20% Open Area
CS18806 (SD-19) 6% Open Area
CS18820 (SD-16) 20% Open Area
CS20106 (SD-25) 6% Open Area
CS20123 (SD-26) 23% Open Area
CS25020 (ST-20) 20% Open Area
CS37507 (LT-29) 7% Open Area
CS37520 (LT-28) 20% Open Area
CS50020 (LT-30) 20% Open Area
CS62520 (ST-40) 20% Open Area
CS75028 (LT-34) 28% Open Area
OD18827 (OB-19) 27% Open Area
OS06317 (OB-14) 17% Open Area
OS06333 (OB-15) 33% Open Area
OS12523 (OB-10) 23% Open Area
OS12537 (OB-20) 37% Open Area
OS18827 (OB-18) 27% Open Area
RS12518 (LT-39) 18% Open Area
RS12527 (LT-40) 27% Open Area
RS25021 (LT-42) 21% Open Area
RS25041 (LT-43) 41% Open Area
SS18814 (ST-21) 14% Open Area
SS25025 (ST-22) 25% Open Area
SS39415 (LT-20) 15% Open Area
SS39460 (LT-21) 60% Open Area
SS41334 (LT-22) 34% Open Area
SS50025 (LT-32) 25% Open Area
SS75036 (LT-36) 36% Open Area
Ceiling System
Ceiling System
Design with sustainability, acoustics, scale and access with aesthetics without compromising design
Specifications
Performance
- Fire Class Description Class A per ASTM E84, Zero Flame Spread, non-combustible aluminum core.
Physical Data
- Access Limited Snap-In, Interlocking Progressive Install
- Width Range 100 mm to 300 mm (4” to 12”)
- Approximate Weight 7.5 kg/m2 (1.5 psf) approximate
- Length Range 600 mm to 3050 mm (2’ to 10’)
Sustainability
- Wood Veneer Ask us about the availability of FSC® (FSC-C022109) certified.
- Recycled Content Description Aluminum: Up to 99% post consumer recycled content
Documents & Files
Data Sheets & Specifications
| Data/Submittal Sheet (English) | |
| Architectural Specification (English) | DOCX 104.8 KB |
Design Files
| CAD and Revit Files (English) |
SDS, Certifications & Reports
| VOC Emissions Certificate (English) | PDF 318.2 KB |
Sustainability
| VOC Emissions Certificate (English) | PDF 318.2 KB |
| HPD (English) |
