Donn® Brand Acoustical Suspension System Moldings
Use for standard ceiling perimeters.
Key Documents & Design Files
Overview
Overview

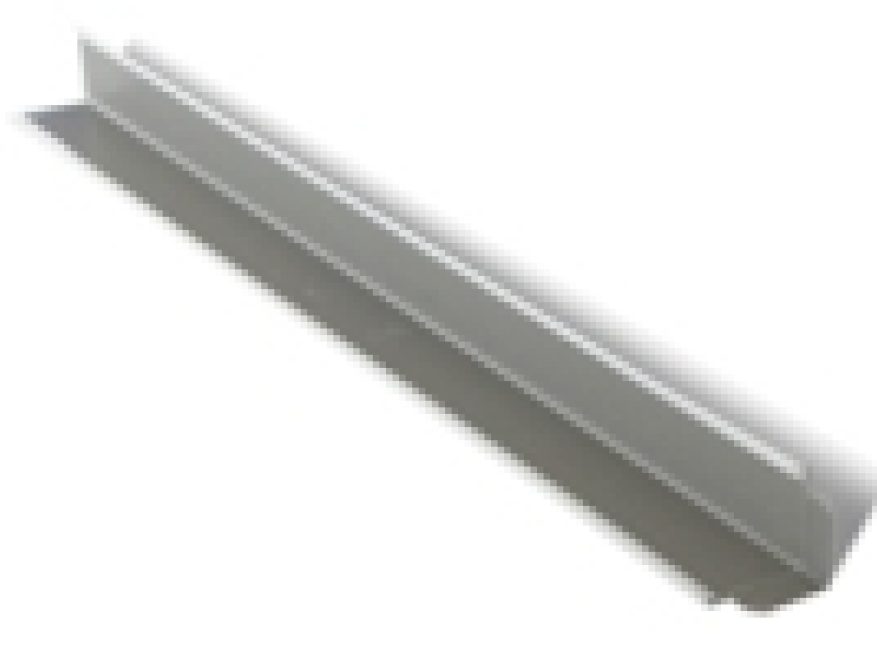

Angle Moldings: Basic molding used at the perimeter of a ceiling for economical installations.
Shadowline Moldings: Used for creating reveals at ceiling perimeters for an elegant visual, matches well with reveal edge tiles.
Channel Moldings: "U" shaped channels used at ceiling perimeters with tile hold down clips. Available with closed foam cell gaskets for clean room applications.
F Moldings: Used to create ceiling "breaks" at facias or similar ceiling elevation changes.
Main Features
Donn® Brand Acoustical Suspension System Angle Moldings include:- Angle Moldings: used at the perimeter of a ceiling,
- Shadowline Moldings: useful for creating reveals at ceiling perimeters, while hiding imperfections in drywall partitions and bulkheads,
- US Channel Moldings: "U" shaped channels used at ceiling perimeters that can be used with wall spring clips to hold down perimeter ceiling tiles,
- F Moldings: used tocreate ceiling "breaks" for soffits and changes in elevation.
Installation
Installation Guide PDF 822.1 KB
Documents & Files
Data Sheets & Specifications
| Data/Submittal Sheet (English) | PDF 1.7 MB |
| Architecturall Specification (English) | DOCX 131.1 KB |
White Papers
| Sell Sheet (English) | PDF 2.5 MB |
Catalogs & Brochures
| System Catalog (English) |
Installation & Technical Manuals
| Technical Guide (English) | |
| Installation Guide (English) | PDF 822.1 KB |
SDS, Certifications & Reports
| Evaluation Reports (English) |
Warranties
| Warranties (English) | PDF 147.7 KB |
