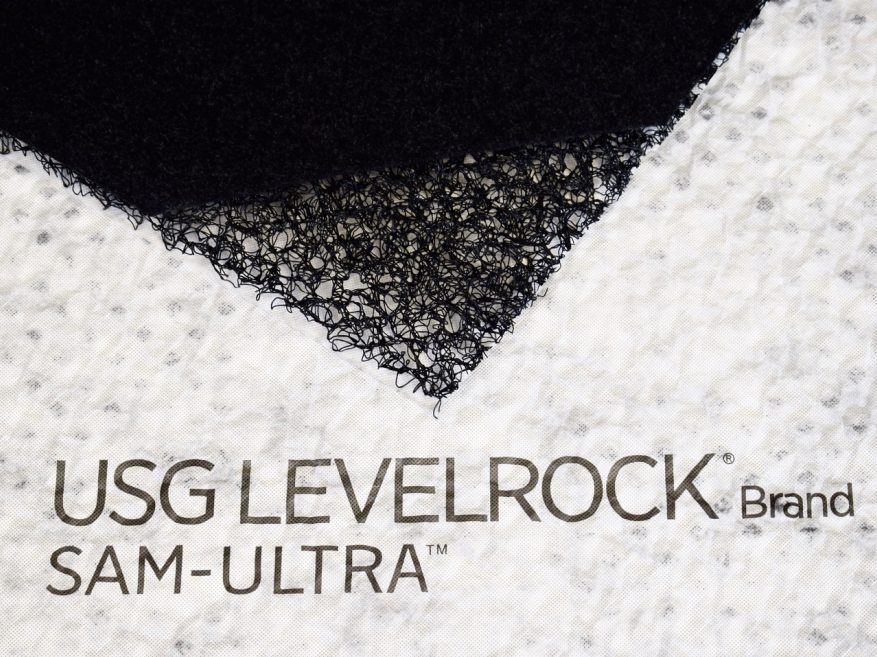

Levelrock® Brand SAM-N75™ Ultra Sound Attenuation Mat

A high-performing sound mat ideal for multifamily wood frame construction.

Key Documents & Design Files

Overview

Overview

Provides superior IIC ratings for demanding sound environments USG Levelrock® Brand SAM-N75™ Ultra Sound Attenuation Mat is a high performance solution for producing some of the highest IIC values in the industry.

Main Features

USG Levelrock® SAM-N75™ Ultra Sound Attenuation Mat can be installed over a variety of subfloors such as plywood, OSB, pre-cast concrete, concrete and corrugated steel deck. USG Levelrock SAM-N75 Ultra Sound Attenuation Mat requires a minimum 1-1/2 in. (38 mm) topping of USG Levelrock® engineered cementitious underlayment.
  • Three layers for a higher Delta performance
  • Ideal for multifamily wood frame construction
  • 11/16 in. (17 mm) profile
  • STC and IIC values exceed code requirements for sound attenuation
  • Installed by USG Levelrock authorized applicators

Specifications

Submittal Sheet PDF 439.3 KB

Physical Data

  • Substrate Type Plywood, OSB, Pre-Cast Concrete, Concrete, Corrugated Steel Deck
  • Sound Mat/Board Thickness 11/16 in. (17 mm)
  • Min. Underlayment Thickness 1-1/2 in. (38 mm)
