Micore® 160 Mineral Fiber Board

Versatile, high-performance mineral fiber board offering superior performance vs. particle board.

Key Documents & Design Files



Versatile, high-performance mineral fiber board offering superior performance vs. particle board. Used as a substrate or core, Micore® 160 Mineral Fiber Board is ideal for open space designs and applications such as offices, schools and commercial, institutional and industrial buildings.

Main Features

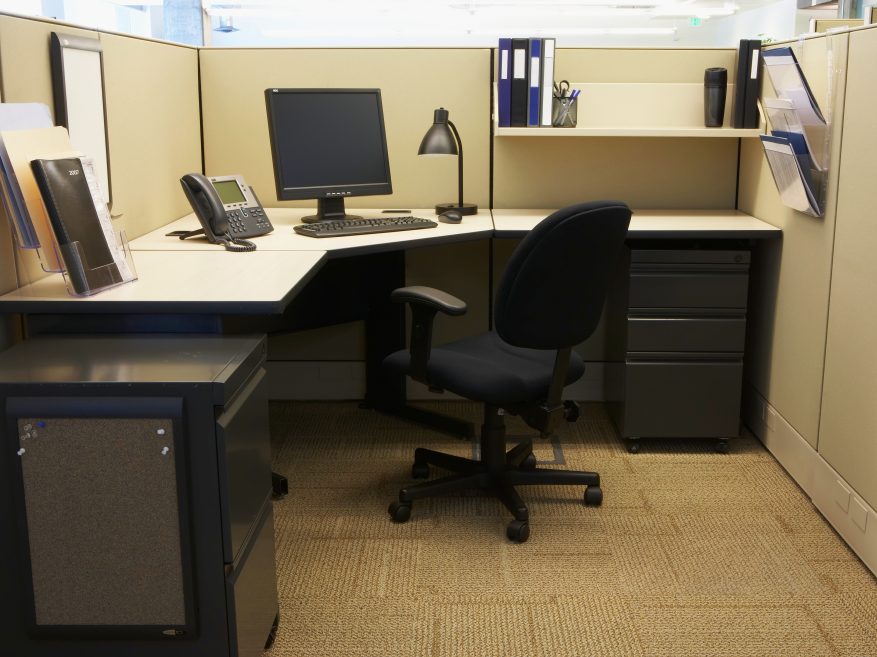

Micore® 160 Mineral Fiber Board enhances the quality and performance of open-plan partitions, office screens, dividers and tack boards, with its exceptional tackability and good sound control. Used as a substrate or core,Micore® 160 Mineral Fiber Board:
  • Offers superior dimensional stability, machinablity and tackability
  • Outperforms particle and other wood fiber boards for flame spread and sound absorption
  • Is nearly 50% lighter than particle board – allowing for easier handling and lower shipping rates
  • Cuts quickly and easily using standard equipment
  • Laminates easily to a variety of materials
  • Is available in four thicknesses — 3/8", 1/2", 5/8" and 3/4"
NOTE: STC ratings tested per ASTM E90 and NRC is tested in accordance with ASTM C423; classified in accordance with ASTM E413

Documents & Files

Data Sheets & Specifications

Data/Submittal Sheet (English) PDF 212.7 KB

Catalogs & Brochures

Brochure (English) PDF 862.9 KB

SDS, Certifications & Reports

SDS (English) PDF 170.7 KB


Greenguard Certificate (English) PDF 672.1 KB
EPD (English) PDF 468.8 KB

Ask a question

Our customer support team will get back to you as soon as possible.

Question Guidlines

  • Questions should relate to this product specifically.
  • For help with pricing, availability, or delivery, please call 800.874.4968 (Monday–Friday, 7am–6pm Central)
  • All questions and answers follow USG’s Terms & Conditions.
  • Your question and USG’s answer may be posted to this page in the future, but none of your personal info will be included.

q & a

  • Can I paint Micore® Mineral Fiber Board?

    No, the painting of Micore will impair acoustical and fire performance and will void all manufacturer warranties.

  • Can I install ceramic on Micore® Mineral Fiber Board?

    This is not something we recommend. Instead, wesuggest using USG Durock® Brand Cement Board for this type of situation.

  • What is the difference between Micore® 160 and Micore® 300?

    The major difference between the two is density, Micore® 300 is 23±3 lbs./cu. ft. and Micore® 160 is 18±2 lbs./cu. foot.

  • Have a question?

    Let us do the research. We'll get back to you as quickly as we can.

    Ask USG
  • Need help right away?

    Call our Technical Support team at 800-874-4968 (Monday-Friday, 7:30 am - 4 pm Central).
