Item: 8744

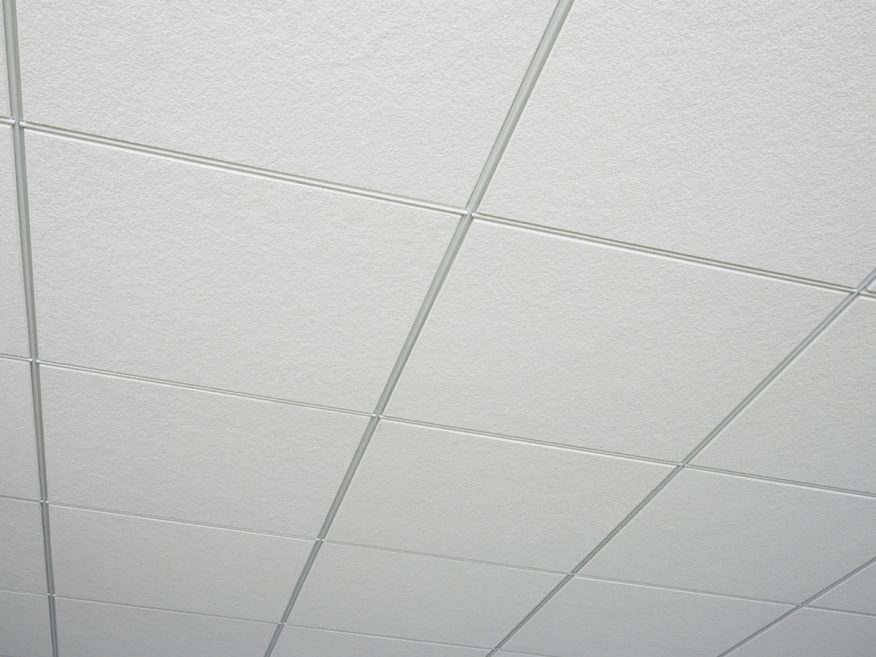

Astro® Illusion™ Acoustical Panels

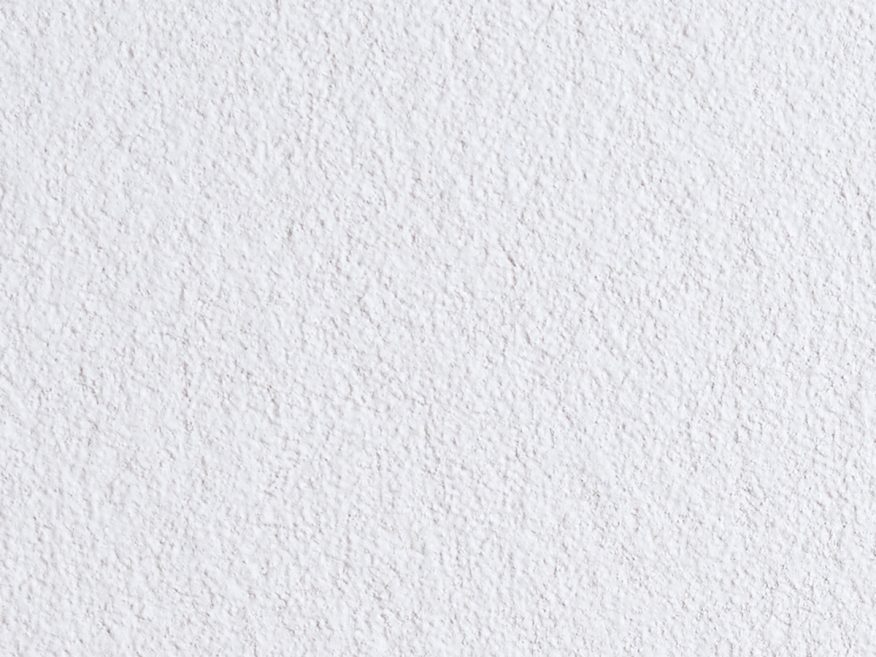

Fine-textured, unperforated and nonfissured appearance offers highly desired aesthetic with Illusion™ Two/24 face-cut pattern.

Explore Sizes & Options

Item: 8744

Acoustics: 0.55 NRC / 35 CAC

Size: 2' x 4'

Edge: Interline Tapered

Color:

Build a Submittal

Order a sample

Overview

With ClimaPlus™ Performance
Built to last, these sag-resistant panels also offer mold and mildew protection, as well as optional increased fire resistance. Astro® Illusion™ Acoustical Ceiling Panels are fine-textured, non-perforated and non-fissured panels that are designed for a high level of performance and aesthetics. They also offer mold and mildew resistance, sag-resistance and sound control.

Sound Absorption

0.55 NRC

Sound Attenuation

35 CAC

Light Reflectance

Up To 0.86

Recycled Content

69 %

Main Features

Astro® Illusion™ Acoustical Ceiling Panels offer outstanding stability and classical good looks.
  • Fine-textured, non-perforated, and non-fissured appearance offers highly desired aesthetic
  • ClimaPlus™ 30-year lifetime system warranty against visible sag, mold and mildew
  • Available with High Recycled Content (HRC)
  • Low-emitting product meets CA Specification 01350, California Department of Health Services Standard Practice for the testing of VOC emissions

Applications

  • Administrative Offices
  • Classrooms
  • Corridors and Hallways
  • Executive Areas, Conference Areas and Board Rooms
  • Lobbies and Reception Areas
  • Media Centers, Music Rooms and Libraries
  • Patient Rooms
  • Traditional Offices

Specifications

Data Sheet PDF 4.6 MB

Performance

  • Sound Absorption (NRC)
    NRC stands for Noise Reduction Coefficient. It is a measure of how much sound is absorbed by a given material. It is listed as a decimal and relates to percentage sound absorbed.
    0.55
  • Sound Attenuation (CAC) 35
  • Light Reflectance 0.86
  • Mold & Mildew Resistance
    Contains a broad-spectrum antimicrobial additive on the face and back of the panel that provides resistance against the growth of mold and mildew. Includes sag-resistance performance.
    Yes
  • Fire Resistance
    • Fire Rating Class A
  • ASTM E1264
    • astm-e1264-class III: Mineral base with painted finish, G: Smooth; K: Surface scored, Form 1: Nodular
  • ASTM E84
    • Flame Spread 25 or less
    • Smoke Developed 50 or less
    • Fire Rating Class A

Sustainability

  • GREENGUARD Certification
    GREENGUARD Certification helps consumers choose building materials with lower VOC (volatile organic compound) emissions, which improves indoor air quality.
    Yes
  • Recycled Content 69%
  • VOC Emissions Low-emitting

Physical Data

  • Thickness (in.) 3/4
  • Edge Interline Tapered
  • Panel Size 2' x 4'

Documents & Files

Data Sheets & Specifications

Data Sheet (English) PDF 4.6 MB
Architectural Specification (English) DOCX 76.0 KB

Catalogs & Brochures

System Catalog (English) PDF 29.3 MB
Brochure (English) PDF 1.9 MB

Installation & Technical Manuals

Technical Guide (English) PDF 807.8 KB

SDS, Certifications & Reports

SDS (English) PDF 122.2 KB

Sustainability

Product Attribute Report (English) PDF 941.8 KB
