Design Solutions - Illusions®
Design Solutions have been developed for you to create your own unique space while taking advantage of pre-engineered systems.
Contact Sales RepKey Documents & Design Files
Overview
Overview

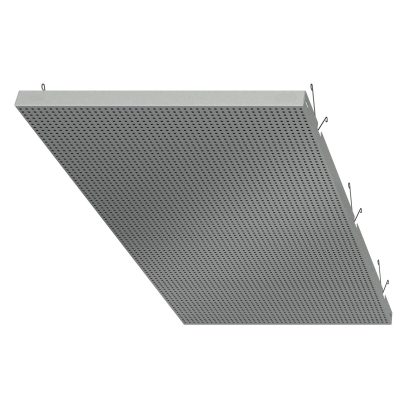

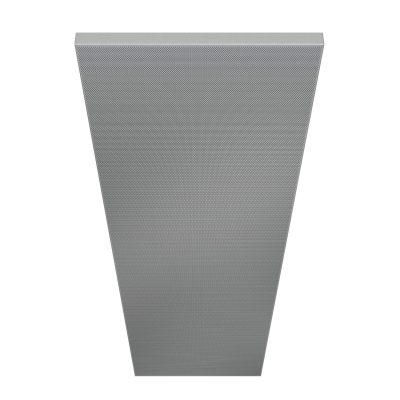

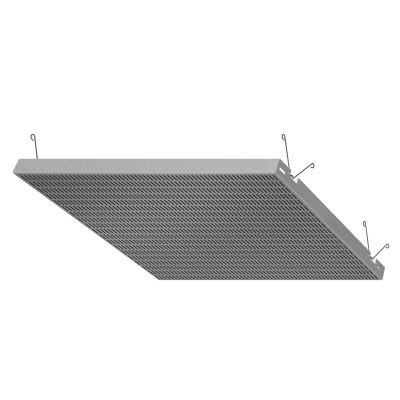

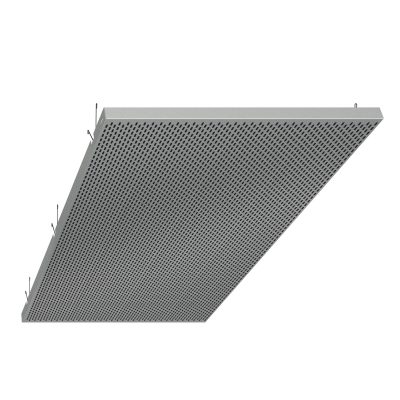

Design Solutions - Illusions® lets you choose from a variety of pre-engineered panels, and customize the finish and perforations for the perfect fit to your space. All without the custom price and lead time.
Finishes
Finishes
Raise the limits on ceiling design to change the atmosphere of a room, bringing movement and emotion to your ceiling.
finishes
Paint
Blanco Mat®
Silver Satin
Saranté®
S-37 Dark Jatoba Saranté
S-36N European Cherry Saranté
S-22 Oak Line Saranté
Perforations
Perforations
Standard and customizable perforatiosn are available to create visual patterns as well as helping with acoustical performance.

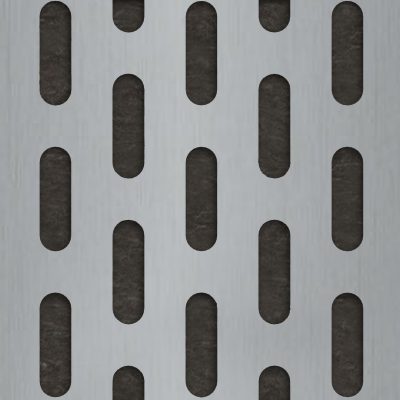

Standard perforations
CD06310 (SD-7) 10% Open Area
CD18839 (SD-20/A188C) 39% Open Area
CD37539 (LT-26) 39% Open Area
OD18827 (OB-19) 27% Open Area
RS12527 (LT-40) 27% Open Area
SS18814 (ST-21) 14% Open Area
Installation
Installation Guide PDF 17.5 MB
Ceiling Systems
Ceiling Systems
Design with sustainability, acoustics, scale and access with aesthetics without compromising design
Performance
- Fire Class Description Class A Per ASTM E84
- Sound Absorption 0.70-1.00
Documents & Files
Data Sheets & Specifications
| Data/Submittal Sheet (English) | PDF 1.1 MB |
| Architectural Specification (English) |
Design Files
| CAD and Revit Files (English) |
Installation & Technical Manuals
| Installation Guide (English) | PDF 17.5 MB |
Check Sheet
| Check Sheet (English) | PDF 2.3 MB |
Ask a question
Our customer support team will get back to you as soon as possible.
Question Guidlines
- Questions should relate to this product specifically.
- For help with pricing, availability, or delivery, please call 800.874.4968 (Monday–Friday, 7am–6pm Central)
- All questions and answers follow USG’s Terms & Conditions.
- Your question and USG’s answer may be posted to this page in the future, but none of your personal info will be included.
q & a
-
How is Design Solutions - Illusions® different from regular Illusions®?
Design Solutions are a pre-engineered product to help expedite availability. All products are made to order and shipped within 8 weeks from order confirmation (up to 2,500 sq ft). For orders more than 2,500 sq ft. a representative will contact you to verify availability.
-
