Item: R133

Fifth Avenue™ Acoustical Panels

Available Product Options

colors & finishes:

Overview

Available in Retail Only
Commercial Quality.

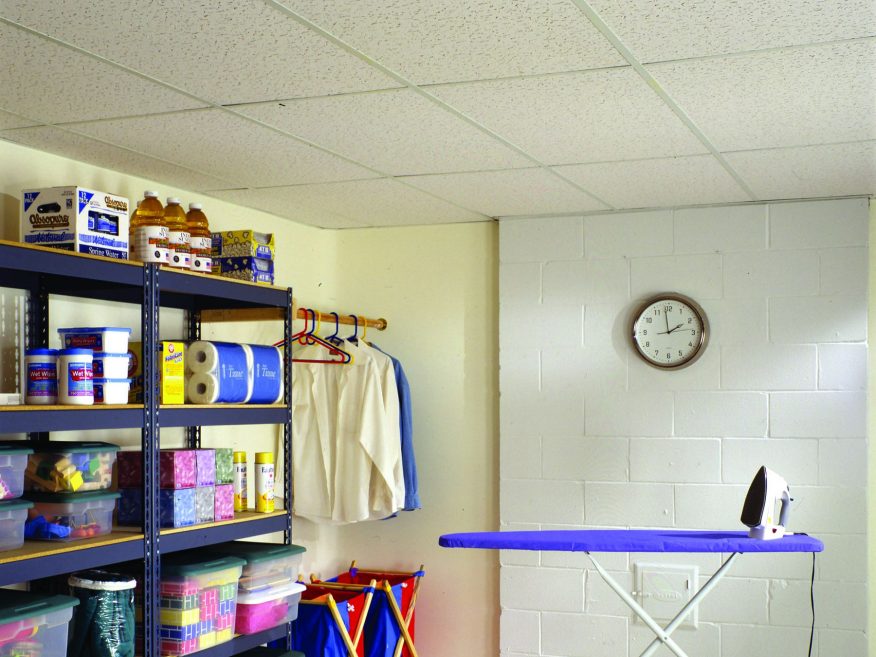

Fifth Avenue™ Acoustical Panels feature directional fissures and are ideal for hallways and offices.

Main Features

All-purpose and economical, Fifth Avenue™ Acoustical Ceiling Panels that provide good acoustical properties. They clean easily with a soft brush or vacuum and are great options for fast food restaurants.
  • Easy to maintain
  • Low VOC-emitting

Applications

  • Administrative Offices
  • Classrooms
  • Corridors and Hallways
  • Grocery Stores
  • Mechanical Rooms
  • Restrooms, Utility Rooms and Loading Docks
  • Stairways and Elevator Shafts
  • Warehouses

Specifications

Performance

  • Sound Absorption (NRC) 0.55
  • Sound Attenuation (CAC) 33
  • Light Reflectance 0.82
  • Mold & Mildew Resistance No
  • Fire Resistance
    • Fire Rating Class A
  • ASTM E1264
    • ASTM E1264 Classification III: Mineral base with painted finish, C: Perforated, small holes; D: Fissured, Form 2: Water-Felted
  • ASTM E84
    • Flame Spread 25
    • Smoke Developed 50
    • Fire Rating Class A

Sustainability

  • GREENGUARD Certification Yes
  • Recycled Content 24.7-25.1%
  • VOC Emissions Low-emitting

Physical Data

  • Thickness (in.) 5/8
  • Edge Square Edge
  • Panel Size 2' x 2'

Documents & Files

Catalogs & Brochures

System Catalog (English) PDF 3.5 MB

Installation & Technical Manuals

Installation Guide (English) PDF 1.1 MB
Technical Guide (English) PDF 2.1 MB

SDS, Certifications & Reports

SDS (English) PDF 130.0 KB
SDS (Spanish) PDF 148.4 KB

Warranty

Warranties (English) PDF 339.1 KB

Ask a question

Our customer support team will get back to you within 48 hours

Question Guidlines

  • Questions should relate to this product specifically.
  • For help with pricing, availability, or delivery, please call 800.874.4968 (Monday–Friday, 7am–6pm Central)
  • All questions and answers follow USG’s Terms & Conditions.
  • Your question and USG’s answer may be posted to this page in the future, but none of your personal info will be included.

q & a

  • Why is LR important?

    When the proper type of lighting fixture is used with a high LR ceiling, there can be savings in both initial construction costs as well as long-term energy costs. The concept is to use the ceiling to reflect light back into the occupied space.

  • What does LR stand for?

    LR stands for light reflectance. It is a measure of the percentage of light which is reflected off of a given panel surface. Typically, the whiter and smoother the ceiling panel, the higher the LR value.

  • What is NRC?

    NRC stands for Noise Reduction Coefficient. It is a measure of how much sound is absorbed by a given material. It is listed as a decimal and relates to percentage sound absorbed.

  • When referring to ceiling panels, what is the meaning of type, form and pattern?

    These categories refer to ASTM Test E 1264.
    Type refers to the base material of the panel.
    Form refers to the manufacturing process of the panel.
    Pattern refers to the type of texture or pattern in the panel.

  • What is the difference between Class A and Firecode® branded materials?

    Class A signifies that a panel attained a flame spread index of 25 or less (based on 100 for untreated red oak) when tested in accordance with the Standard ASTM E 84. The Firecode® brand signifies that the panel has been classified as a protective membrane in a floor-ceiling or roof-ceiling assembly in accordance with the Standard ASTM E 119. All Firecode® protective membranes offered by USG have attained a Class A rating.

  • Does USG offer both types of ceiling panels — Class A and Firecode® branded panels?

    Yes. Some patterns are offered in both Class A and Firecode® branded formulations.

  • What is the difference between wet-felted and cast ceiling panels?

    Wet-felted panels are typically mechanically perforated and fissured. They are very dense and more economical than other types of ceiling panels. Cast ceiling panels are non-perforated and are manufactured in a different “cast” process, hence its name, that enhances their surface appearance and provides excellent sound absorption and durability.

  • Does the ceiling tile and grid system alone provide a fire-rated assembly?

    No. The ceiling system achieves a time rating based on the entire assembly which includes roof deck or floor deck assembly.

  • When hold-down clips are required, how much space should I leave between the clips, on the grid?

    The recommendation for hold-down clip spacing is two clips per panel, centered on the grid, between the panels.

  • How many acoustical panel types does USG offer?

    USG offers four major types of acoustical panels as well as Gypsum based panels for special applications. They are: Wet-Felted, Cast, "X" Technology and Fiberglass.

  • What is the best way to cut a reveal in a ceiling panel?

    The best way to cut a reveal edge in a panel is with a utility knife or a special Reveal edge tool.

  • How far in advance can I order ceiling panel before installation?

    Storage time of materials at the job site should be as short as possible, and environmental conditions should be as near as possible to those specified for occupancy. Excess humidity during storage can cause expansion of material and possible warp, sag, or poor fit after installation. Chemical changes in the mat and/or coatings can be aggravated by excess humidity and cause discoloration during storage, even in unopened cartons. Cartons should be removed from pallets and stringers to prevent distortion of material. Long-term (6-12 months) storage under uncontrolled environmental conditions should be avoided.

  • What is CAC?

    CAC stands for Ceiling Attenuation Class. It is the measure of the blocking of sound through one ceiling plane, into the plenum above, and back through the other ceiling plane to an adjacent space.
