Cost effective alternative to extruded systems, this suspension system offers excellent corrosion resistance.

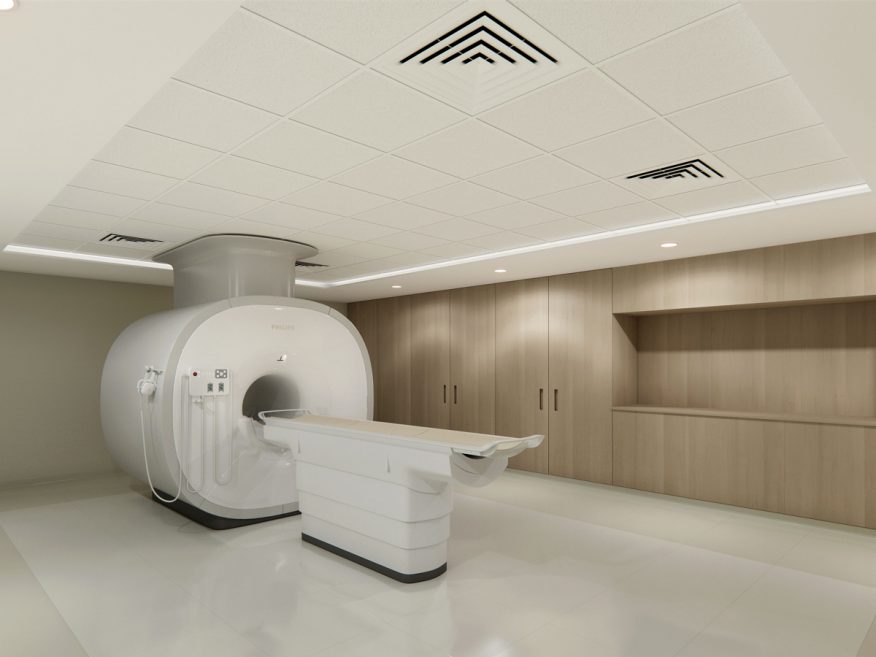

As a cost effective alternative to extruded systems, this suspension system offers excellent corrosion resistance. Donn® Brand AX™/AXCE™ Acoustical Suspension System is made of double-web aluminum and is connected with plug-in positive-lock insertion for quick installation and removal without tools. It's high corrosion resistance makes it ideal for use in high humidity environments, controlled environment and healthcare applications.

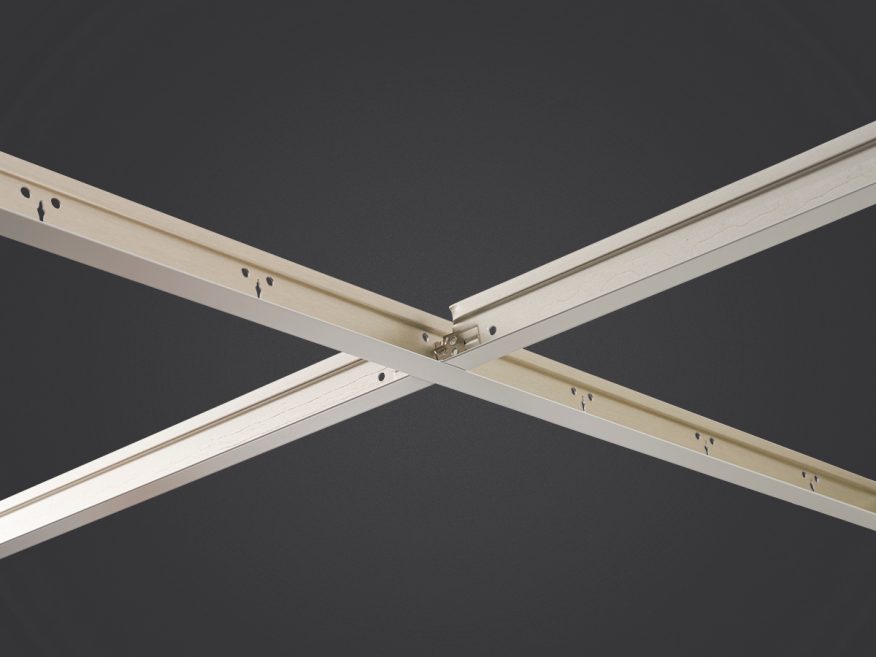

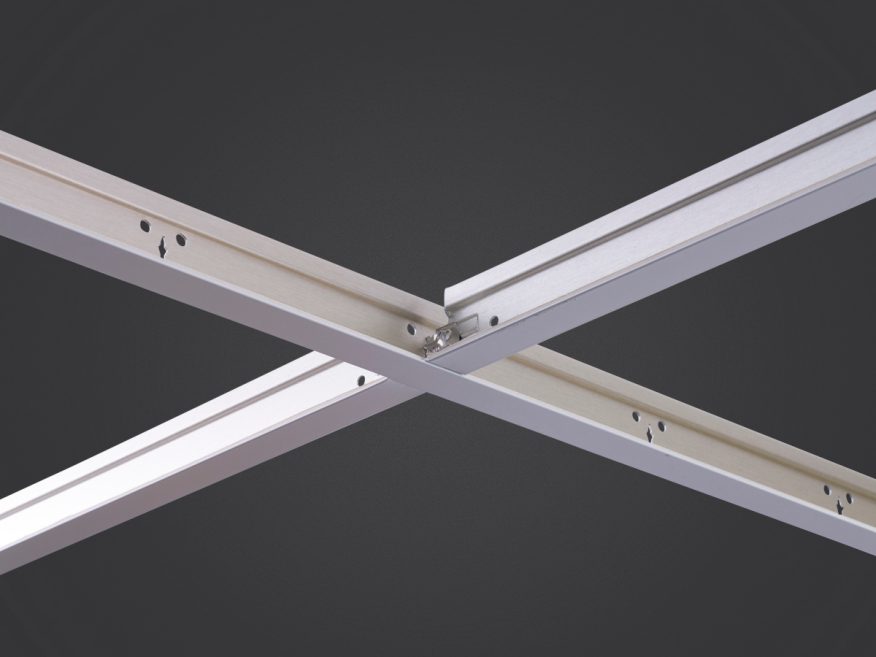

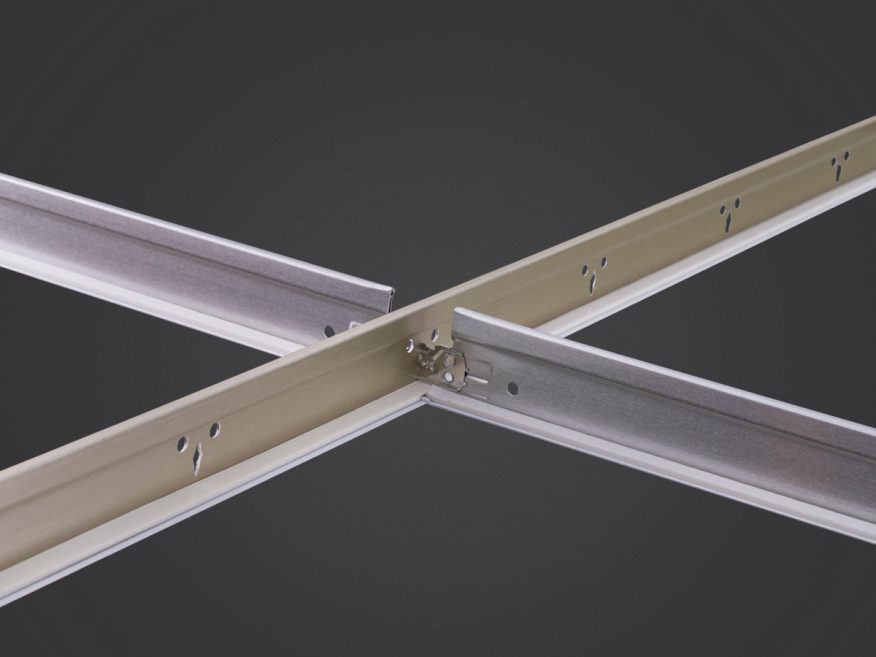

Donn® Brand AX™/AXCE™ Acoustical Suspension System patented Quick-Release™ cross tees are easy to remove without tools, decreasing renovation costs. They have override ends that rest on the main tees for better appearance (no exposed edges) without sagging or twisting, and they cantilever during installation and withstand dropping out.
What do I need to build this Suspension System?
|Item Number||ASTM Class||Length||Height||Fire Class||Rated Load 4' Hanger Spacing|

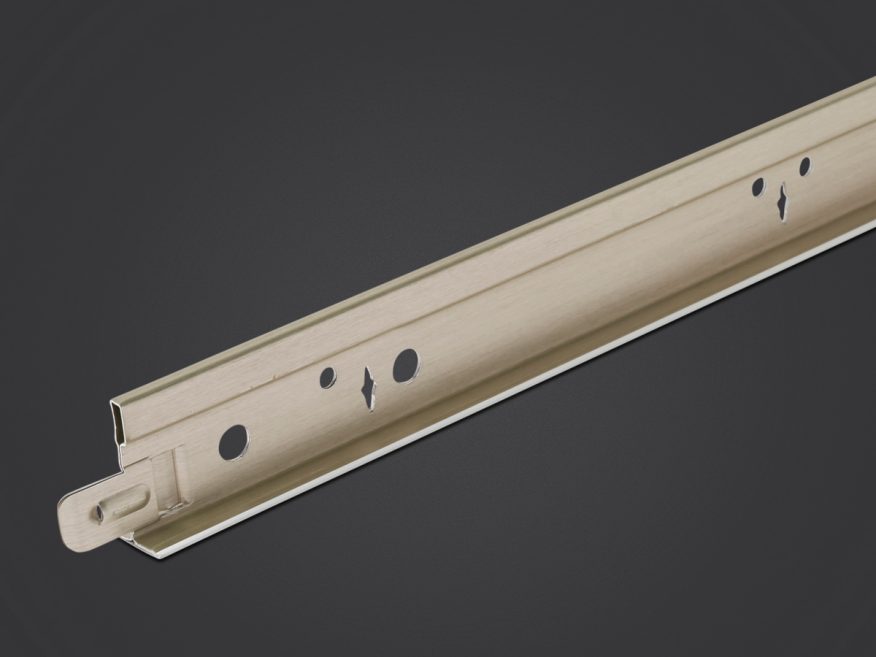

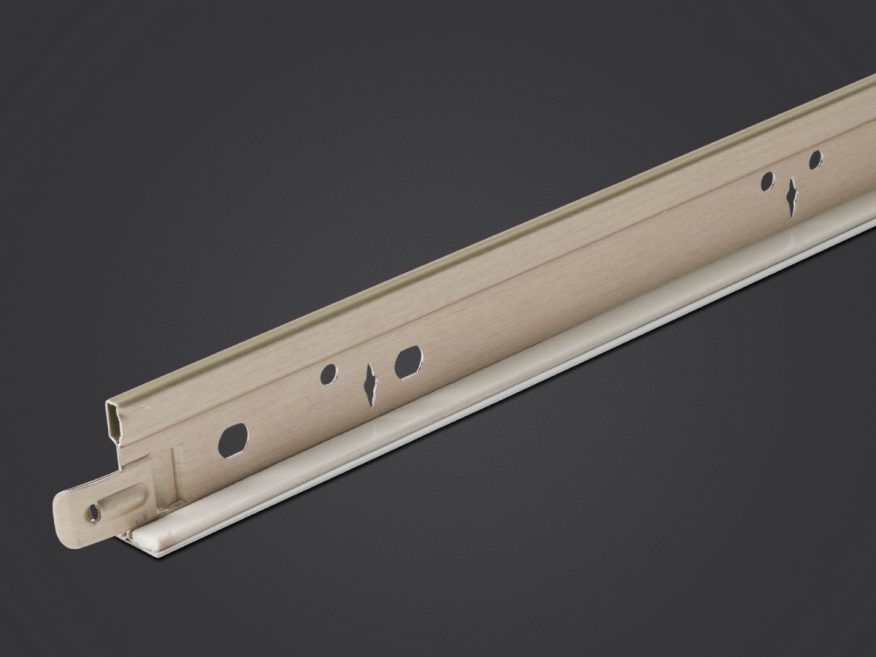

|AXCE26||Light Duty||12.00 foot||1.50 inch||Class A||7 lb./LF|
|AX26||Light Duty||12.00 foot||1.50 inch||Class A||7 lb./LF|
|Item Number||Length||Height||Fire Class|

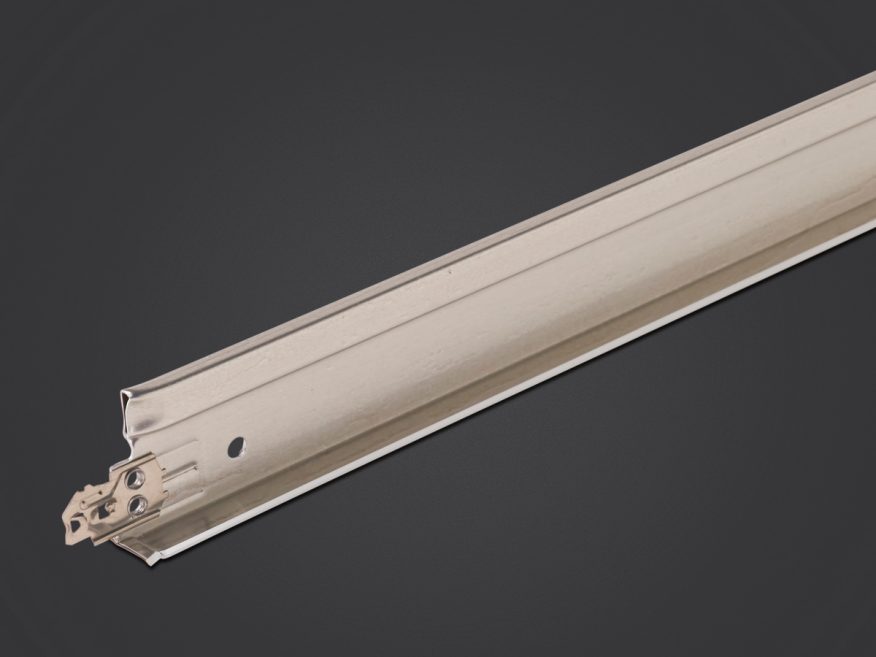

|AX224||2.00 foot||1.50 inch||Class A|
|AXCE424||4.00 foot||1.50 inch||Class A|
|AXCE224||2.00 foot||1.50 inch||Class A|
|AX424||4.00 foot||1.50 inch||Class A|
Data/Submittal Sheets & Specifications
|Data/Submittal Sheet (English)||PDF 893.0 KB|
|Architectural Specification (English)|
|Sell Sheet (English)||PDF 2.5 MB|
Catalogs & Brochures
|System Catalog (English)|
Installation & Technical Manuals
|Technical Guide (English)|
|Installation Guide (English)||PDF 677.1 KB|
|Warranties (English)||PDF 146.0 KB|
|VOC Emissions Certificate (English)||PDF 450.3 KB|
Our customer support team will get back to you within 48 hours
How is the load test data collected for ceiling grid?
Load data and spans are based on simple span tests in accordance with ASTM C635, with a deflection limitation of L/360.
How do you remove cross tees without a tool?
To remove a cross tee, push up on the main tee with your thumbs (where the cross tee is connected) and rotate it until the cross tee pops up and out of the slot.
What are the best grids to use in an area that is accessible to moisture?
The best grids to use in an area accessible to moisture are the Donn® AX™ Acoustical Suspension System or the Donn® ZXLA™ Acoustical Suspension System.
How much force is required to insert a cross tee with a quick release clip?
It takes 12-14 pounds of force to install a cross tee.
What is the standard warranty of grid?
Ten years. See complete warranty for details.
What gauge hanger wire is needed to install grid?
For residential installation 18-gauge wire is required. For commercial installation 12-gauge wire is required.
What is the warranty for a system, that uses USG tile and grid together?
There is a lifetime warranty on any ceiling system that is used in conjunction with our tile and grid. All grid is lifetime when used with USG tile, however not all tile is lifetime when used with USG grid. See complete warranty for details.
How is the spacing of wire hangers determined for fire-rated assemblies?
All systems must be installed and tested in compliance with ASTM C636.
When installing grid, what is the minimum clearance needed from the overhead structure?
Minimum clearance is 3", which allows ceiling tiles to be inserted and removed freely.
How do you take main tees apart without a tool?
Facing the main tee splice place your left hand near the left side of the splice and right hand near the right side of the splice. Using a shearing motion, push with your left hand and pull with your right hand. This disconnects the main tee splice. Be sure to straighten the end tabs before attempting to reconnect.
Which grid is the best grid to use in a Clean Room environment?
USG Donn® Brand CE™ Acoustical Suspension System is the best grid for a Clean Room environment.
How should I store my specialty ceiling panels?
Store panels in a manner that will prevent scratches or damage of any kind.
