Overview
Overview

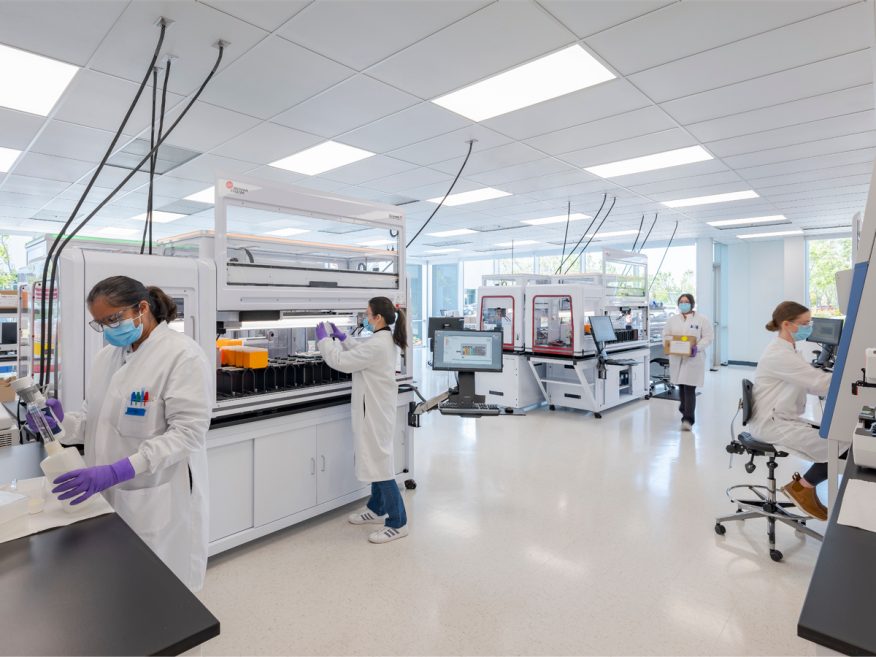

Promote healthy environments with a clean, particulate-free sealed ceiling system.

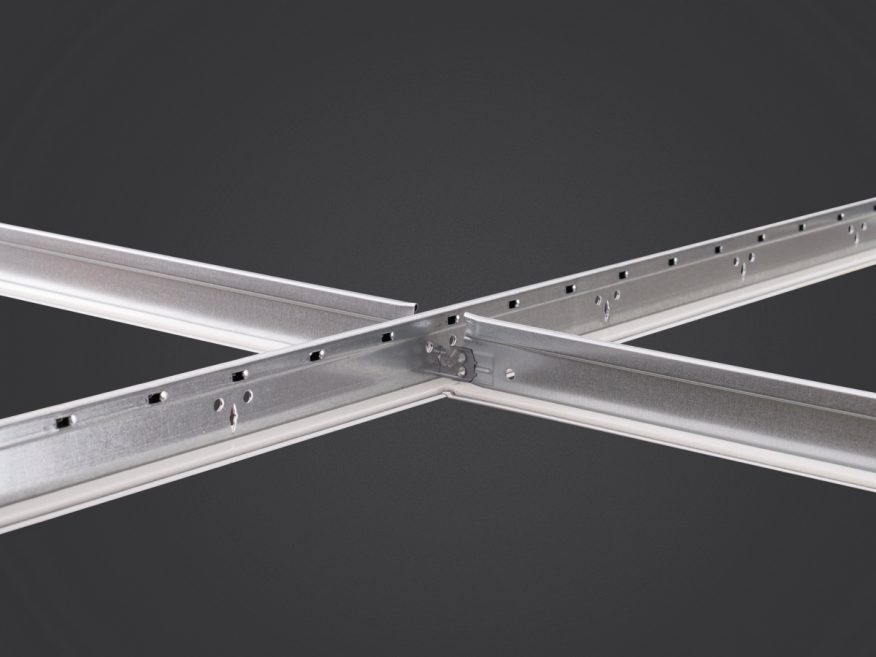

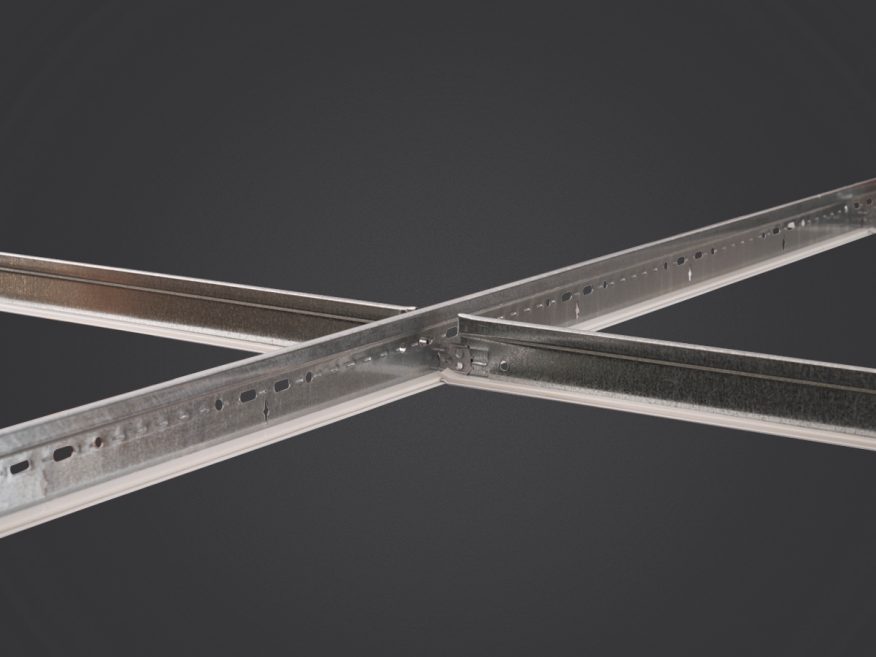

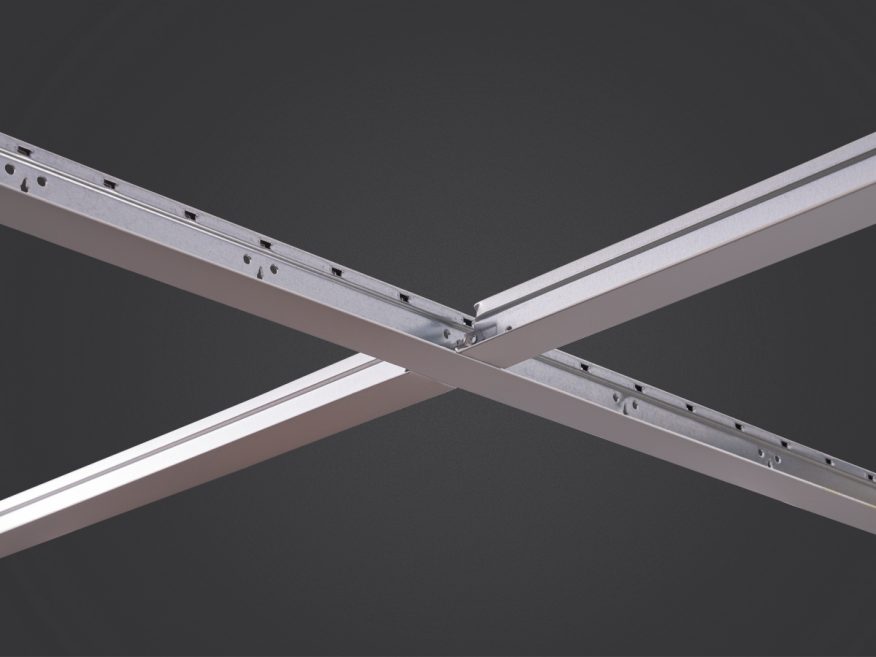

Donn® Brand CE™ Acoustical Suspension System is an exposed grid system certified for Class 100 clean room environments per Federal Standard 209(e). This suspension system meets the high-recycled content standard and has patented Quick-Release™ cross tees that are easy to remove without tools, decreasing renovation costs.
Main Features
Hold ceiling tiles in place securely at the perimeter with Donn® Brand CE™ Acoustical Suspension System.
- Grid system with factory-applied closed-cell foam gaskets for controlled-environment rooms
- G30 hot-dipped galvanized body provides corrosion protection
- Meets or exceeds all national code requirements, including seismic
- Supports cleanroom H.E.P.A filters and light
- ICC-ES evaluated approach to seismic design installations (ICC-ESR-1222).
- Meets 2010 Guidelines for Health Care Facilities
- No crevices between suspension system and tile
- Capable of withstanding cleaning and/or disinfecting chemicals as tested in accordance with ASTM D402
- White gasket blends with grid and tile
- Available with High Recycled Content (HRC)
Profile
Edge Compatibility
colors & finishes: Flat White 050
Tees & Molding
Tees & Molding
What do I need to build this Suspension System?
- KEY:
- 1) Main Tee
- 2) Cross Tee
- 3) Wall Molding
Estimate Your Ceiling Materials
Quickly and easily calculate how many ceiling panels, molding and tees you'll need for your project!

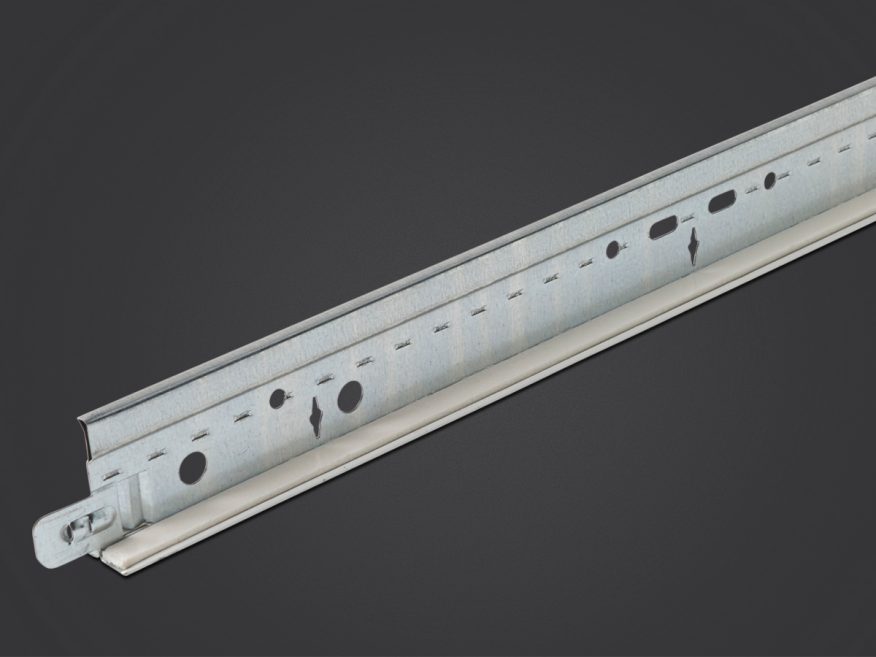

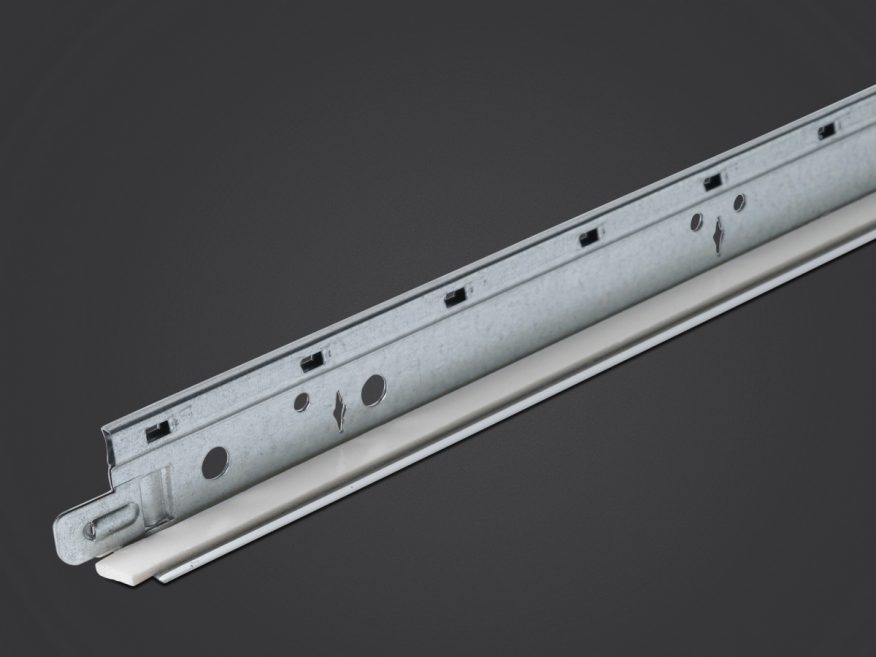

Main Tees
- Firecode®
| Item Number | ASTM Class | Length | Height | Fire Class | Seismic IBC | Rated Load | |||
|---|---|---|---|---|---|---|---|---|---|
| 4' Hanger Spacing | 5' Hanger Spacing | 6' Hanger Spacing | |||||||
| DXWCE26 | Heavy Duty | 12.00 foot | 1.50 inch | Class A | A-F | 16 lb./LF | 8.5 lb./LF | 5 lb./LF | |
| DXCE26 | Heavy Duty | 12.00 foot | 1.64 inch | Class A | A-F | 16 lb./LF | 7.3 lb./LF | 4.9 lb./LF | |
| DXCE24 | Intermediate Duty | 12.00 foot | 1.64 inch | Class A | A-C | 12 lb./LF | 6.1 lb./LF | 3.6 lb./LF | |

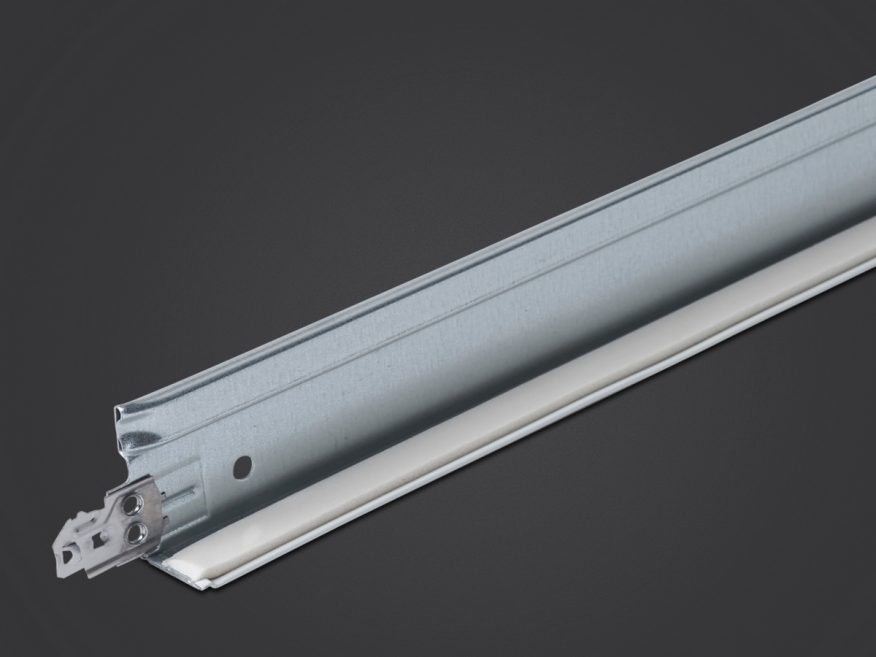

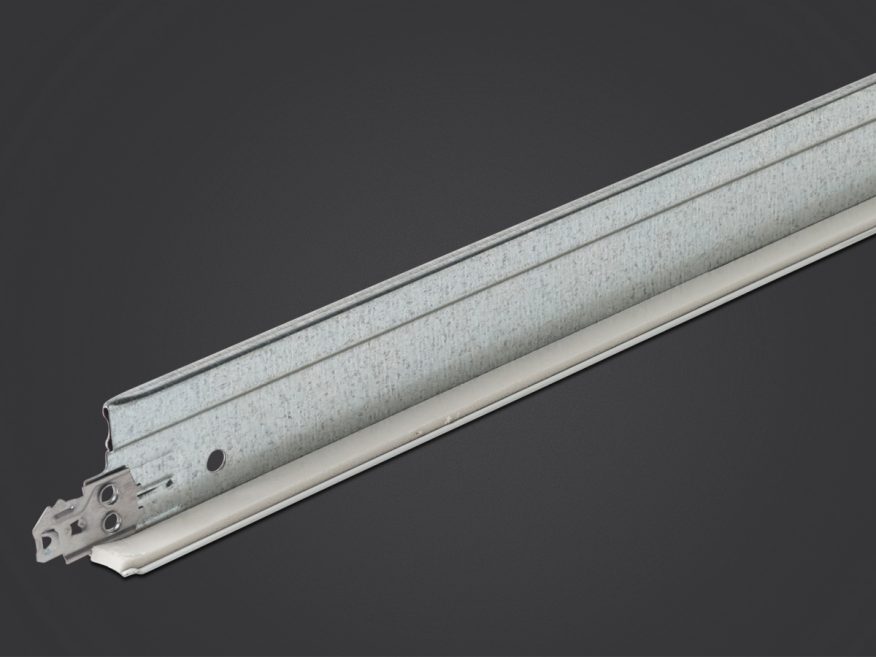

Cross Tees
- Firecode®
| Item Number | Length | Height | Fire Class |
|---|---|---|---|
| DXWCE424 | 4.00 foot | 1.50 inch | Class A |
| DXWCE224 | 2.00 foot | 1.50 inch | Class A |
| DXCE424 | 4.00 foot | 1.50 inch | Class A |
| DXCE224 | 2.00 foot | 1.50 inch | Class A |
Documents & Files
Data Sheets & Specifications
| Data/Submittal Sheet (English) | PDF 876.7 KB |
| Architecturall Specification (English) | DOCX 105.8 KB |
White Papers
| Sell Sheet (English) | PDF 2.5 MB |
Catalogs & Brochures
| System Catalog (English) |
| Brochure (English) |
Installation & Technical Manuals
| Technical Guide (English) |
| Installation Guide (English) |
SDS, Certifications & Reports
| VOC Emissions Certificate (English) | PDF 450.3 KB |
| SDS (English) | PDF 213.7 KB |
| SDS (Spanish) | PDF 36.8 KB |
| Evaluation Reports (English) |
Warranties
| Warranties (English) | PDF 147.7 KB |
Sustainability
| VOC Emissions Certificate (English) | PDF 450.3 KB |
| EPD (English) | PDF 493.2 KB |
Ask a question
Our customer support team will get back to you as soon as possible.
Question Guidlines
- Questions should relate to this product specifically.
- For help with pricing, availability, or delivery, please call 800.874.4968 (Monday–Friday, 7am–6pm Central)
- All questions and answers follow USG’s Terms & Conditions.
- Your question and USG’s answer may be posted to this page in the future, but none of your personal info will be included.
q & a
-
How is the load test data collected for ceiling grid?
Load data and spans are based on simple span tests in accordance with ASTM C635, with a deflection limitation of L/360.
-
What are the best grids to use in an area that is accessible to moisture?
The best grids to use in an area accessible to moisture are the Donn® AX™ Acoustical Suspension System or the Donn® ZXLA™ Acoustical Suspension System.
-
How do you remove cross tees without a tool?
To remove a cross tee, push up on the main tee with your thumbs (where the cross tee is connected) and rotate it until the cross tee pops up and out of the slot.
-
How much force is required to insert a cross tee with a quick release clip?
It takes 12-14 pounds of force to install a cross tee.
-
What gauge hanger wire is needed to install grid?
For residential installation 18-gauge wire is required. For commercial installation 12-gauge wire is required.
-
What is the warranty for a system, that uses USG tile and grid together?
There is a lifetime warranty on any ceiling system that is used in conjunction with our tile and grid. All grid is lifetime when used with USG tile, however not all tile is lifetime when used with USG grid. See complete warranty for details.
-
What is the standard warranty of grid?
Ten years. See complete warranty for details.
-
How is the spacing of wire hangers determined for fire-rated assemblies?
All systems must be installed and tested in compliance with ASTM C636.
-
When installing grid, what is the minimum clearance needed from the overhead structure?
Minimum clearance is 4", which allows ceiling tiles to be inserted and removed freely.
-
Which grid is the best grid to use in a Clean Room environment?
USG Donn® Brand CE™ Acoustical Suspension System is the best grid for a Clean Room environment.
-
How do you take main tees apart without a tool?
Facing the main tee splice place your left hand near the left side of the splice and right hand near the right side of the splice. Using a shearing motion, push with your left hand and pull with your right hand. This disconnects the main tee splice. Be sure to straighten the end tabs before attempting to reconnect.
-
