Overview
Overview

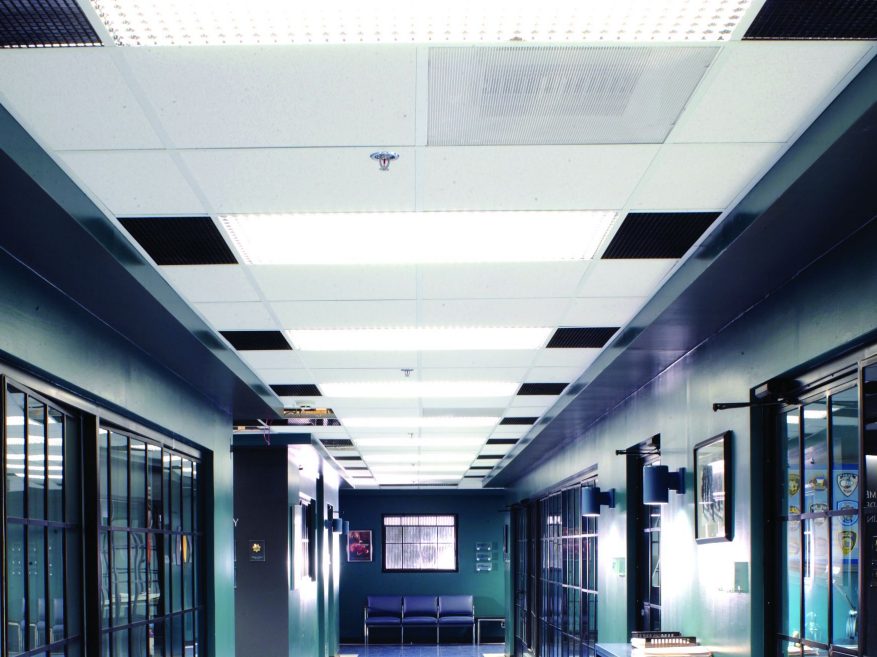

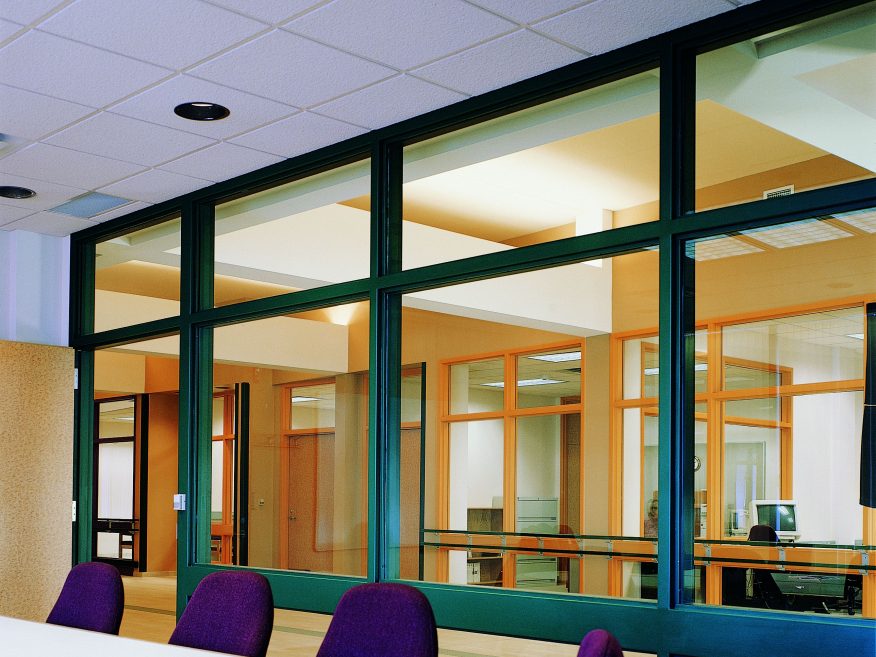

With a completely concealed supporting grid, this suspension system offers a smooth, continuous look for your ceilings. Donn® Brand DX®/DXL™ Concealed Acoustical Suspension System provides an uninterrupted ceiling plane, while still allowing for great flexibility in the arrangement of light fixtures, air diffusers and plenum access points. The suspension system's hot-dipped galvanized steel body inhibits rust.
Main Features
Donn® Brand DX®/DXL™ Concealed Acoustical Suspension System offers the clean, unique look of a continuous ceiling. Despite its distinct visual appeal, this system’s design flexibility meets or exceeds all national code requirements and load compliance specifications per ASTM C635.
- Supporting grid is completely concealed, providinga monolithic, uninterrupted ceiling plane with upto 50% access to the plenum
- Fire-rated assemblies up to three hours
- G30 hot-dipped galvanized steel body
- UL fire-rated assemblies available
Profile
Edge Compatibility
colors & finishes: Flat White 050
Tees & Molding
Tees & Molding
What do I need to build this Suspension System?
- KEY:
- 1) Main Tee
- 2) Cross Tee
- 3) Wall Molding
Estimate Your Ceiling Materials
Quickly and easily calculate how many ceiling panels, molding and tees you'll need for your project!
Installation
Installation Guide PDF 2.1 MB
Documents & Files
Data Sheets & Specifications
| Data/Submittal Sheet (English) | PDF 990.7 KB |
| Architecturall Specification (English) | DOCX 106.2 KB |
White Papers
| Sell Sheet (English) | PDF 2.5 MB |
Catalogs & Brochures
| System Catalog (English) | |
| Brochure (English) | PDF 1.9 MB |
Installation & Technical Manuals
| Technical Guide (English) | |
| Installation Guide (English) | PDF 2.1 MB |
SDS, Certifications & Reports
| VOC Emissions Certificate (English) | PDF 450.3 KB |
| SDS (English) | PDF 205.4 KB |
| SDS (Spanish) | PDF 61.8 KB |
| Evaluation Reports (English) |
Warranties
| Warranties (English) | PDF 147.7 KB |
Sustainability
| VOC Emissions Certificate (English) | PDF 450.3 KB |
| Declare Label (English) | PDF 827.5 KB |
Ask a question
Our customer support team will get back to you as soon as possible.
Question Guidlines
- Questions should relate to this product specifically.
- For help with pricing, availability, or delivery, please call 800.874.4968 (Monday–Friday, 7am–6pm Central)
- All questions and answers follow USG’s Terms & Conditions.
- Your question and USG’s answer may be posted to this page in the future, but none of your personal info will be included.
q & a
-
How is the load test data collected for ceiling grid?
Load data and spans are based on simple span tests in accordance with ASTM C635, with a deflection limitation of L/360.
-
What are the best grids to use in an area that is accessible to moisture?
The best grids to use in an area accessible to moisture are the Donn® AX™ Acoustical Suspension System or the Donn® ZXLA™ Acoustical Suspension System.
-
How do you remove cross tees without a tool?
To remove a cross tee, push up on the main tee with your thumbs (where the cross tee is connected) and rotate it until the cross tee pops up and out of the slot.
-
How much force is required to insert a cross tee with a quick release clip?
It takes 12-14 pounds of force to install a cross tee.
-
What gauge hanger wire is needed to install grid?
For residential installation 18-gauge wire is required. For commercial installation 12-gauge wire is required.
-
What is the warranty for a system, that uses USG tile and grid together?
There is a lifetime warranty on any ceiling system that is used in conjunction with our tile and grid. All grid is lifetime when used with USG tile, however not all tile is lifetime when used with USG grid. See complete warranty for details.
-
What is the standard warranty of grid?
Ten years. See complete warranty for details.
-
How is the spacing of wire hangers determined for fire-rated assemblies?
All systems must be installed and tested in compliance with ASTM C636.
-
When installing grid, what is the minimum clearance needed from the overhead structure?
Minimum clearance is 4", which allows ceiling tiles to be inserted and removed freely.
-
Which grid is the best grid to use in a Clean Room environment?
USG Donn® Brand CE™ Acoustical Suspension System is the best grid for a Clean Room environment.
-
How do you take main tees apart without a tool?
Facing the main tee splice place your left hand near the left side of the splice and right hand near the right side of the splice. Using a shearing motion, push with your left hand and pull with your right hand. This disconnects the main tee splice. Be sure to straighten the end tabs before attempting to reconnect.
-
