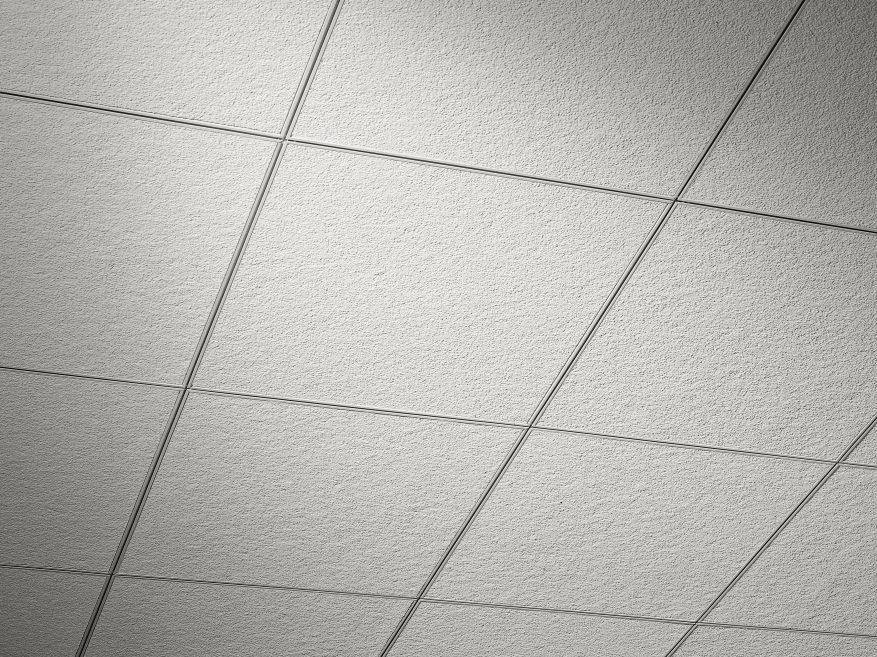

This unique, economical and simply installed system provides a monolithic ceiling look with every benefit of a standard exposed grid. The Donn® Brand Fineline® 1/8 DXFF™ Acoustical Suspension System allows for easy ceiling access, while its narrow slotted profile hides the suspension system behind acoustical panels, yielding a smooth, clean ceiling plane with minimal exposed metal.
What do I need to build this Suspension System?
|Item Number||ASTM Class||Length||Height||Fire Class||Seismic IBC||Rated Load|
|4' Hanger Spacing||5' Hanger Spacing||6' Hanger Spacing|
|DXFF2948||Intermediate Duty||12.00 foot||1.80 inch||Class A||A-C||12 lb./LF||6.2 lb./LF||3.6 lb./LF|
|DXFF2930||Intermediate Duty||10.00 foot||1.80 inch||Class A||A-C||12 lb./LF||6.2 lb./LF||3.6 lb./LF|
|DXFF2924||Intermediate Duty||12.00 foot||1.80 inch||Class A||A-C||12 lb./LF||6.2 lb./LF||3.6 lb./LF|
|DXFFH2924||Heavy Duty||12.00 foot||1.80 inch||Class A||A-F||16 lb./LF||8.2 lb./LF||4.7 lb./LF|
|Item Number||Length||Height||Fire Class|
|DXFF429S||4.00 foot||1.80 inch||Class A|
|DXFF429N||4.00 foot||1.80 inch||Class A|
|DXFF429||4.00 foot||1.80 inch||Class A|
|DXFF30||2.50 foot||1.80 inch||Class A|
|DXFF229||2.00 foot||1.80 inch||Class A|
|DXFF129||1.00 foot||1.80 inch||Class A|
|DXFF529N||5.00 foot||1.80 inch||Class A|
|DXFF529||5.00 foot||1.80 inch||Class A|
Data Sheets & Specifications
|Data/Submittal Sheet (English)||PDF 1.2 MB|
|Architectural Specification (English)||DOCX 131.1 KB|
|Sell Sheet (English)||PDF 2.5 MB|
|CAD and Revit Files (English)|
Installation & Technical Manuals
|Technical Guide (English)|
|Installation Guide (English)||PDF 822.1 KB|
SDS, Certifications & Reports
|VOC Emissions Certificate (English)||PDF 450.3 KB|
|SDS (English)||PDF 205.4 KB|
|SDS (Spanish)||PDF 61.8 KB|
|Evaluation Reports (English)|
|Certificates (English)||PDF 1.1 MB|
|Warranties (English)||PDF 146.0 KB|
Our customer support team will get back to you as soon as possible.
How is the load test data collected for ceiling grid?
Load data and spans are based on simple span tests in accordance with ASTM C635, with a deflection limitation of L/360.
What are the best grids to use in an area that is accessible to moisture?
The best grids to use in an area accessible to moisture are the Donn® AX™ Acoustical Suspension System or the Donn® ZXLA™ Acoustical Suspension System.
How do you remove cross tees without a tool?
To remove a cross tee, push up on the main tee with your thumbs (where the cross tee is connected) and rotate it until the cross tee pops up and out of the slot.
How much force is required to insert a cross tee with a quick release clip?
It takes 12-14 pounds of force to install a cross tee.
What gauge hanger wire is needed to install grid?
For residential installation 18-gauge wire is required. For commercial installation 12-gauge wire is required.
What is the warranty for a system, that uses USG tile and grid together?
There is a lifetime warranty on any ceiling system that is used in conjunction with our tile and grid. All grid is lifetime when used with USG tile, however not all tile is lifetime when used with USG grid. See complete warranty for details.
What is the standard warranty of grid?
Ten years. See complete warranty for details.
How is the spacing of wire hangers determined for fire-rated assemblies?
All systems must be installed and tested in compliance with ASTM C636.
When installing grid, what is the minimum clearance needed from the overhead structure?
Minimum clearance is 4", which allows ceiling tiles to be inserted and removed freely.
Which grid is the best grid to use in a Clean Room environment?
USG Donn® Brand CE™ Acoustical Suspension System is the best grid for a Clean Room environment.
How do you take main tees apart without a tool?
Facing the main tee splice place your left hand near the left side of the splice and right hand near the right side of the splice. Using a shearing motion, push with your left hand and pull with your right hand. This disconnects the main tee splice. Be sure to straighten the end tabs before attempting to reconnect.
