Overview
Overview
With a refined 9/16" dual reveal profile, this system is especially designed to accommodate modular flexibility and narrow lighting. With the Donn® Brand Identitee® DXI™ Acoustical Suspension System installing various sizes, patterns and linear channels can be done quickly and easily. It's refined 9/16" dual reveal profile eliminates concerns with notches and mitered intersections, creating perfect compatibility with Logix™ Integrated System.
Main Features
The Donn® Brand Identitee® DXI™ Acoustical Suspension System is an innovative suspension system from USG, designed to accentuate design flexibility and product compatibility. A proprietary cap lance allows for extensive color and finish options delivering design freedom- Narrow-profile grid system, with double reveal
- Seamless reveal at intersections
- Meets or exceeds all national code requirements including seismic
- Compatible with Logix™ Integrated Ceiling Systems
- Custom colors available
- ICC-ES evaluated approach to seismic installation (ICC-ESR-1222)
- G30 hot-dipped galvanized steel body and cap inhibits red rust
- All DXI™ items have High Recycled Content (HRC)
- Metric sizes available
- Proprietary cap lance allows a variety of color and coating options to meet unique project requirements
- Available with High Recycled Content (HRC)
Profile
Edge Compatibility
colors & finishes: Atmosphere 3681
Tees & Molding
Tees & Molding

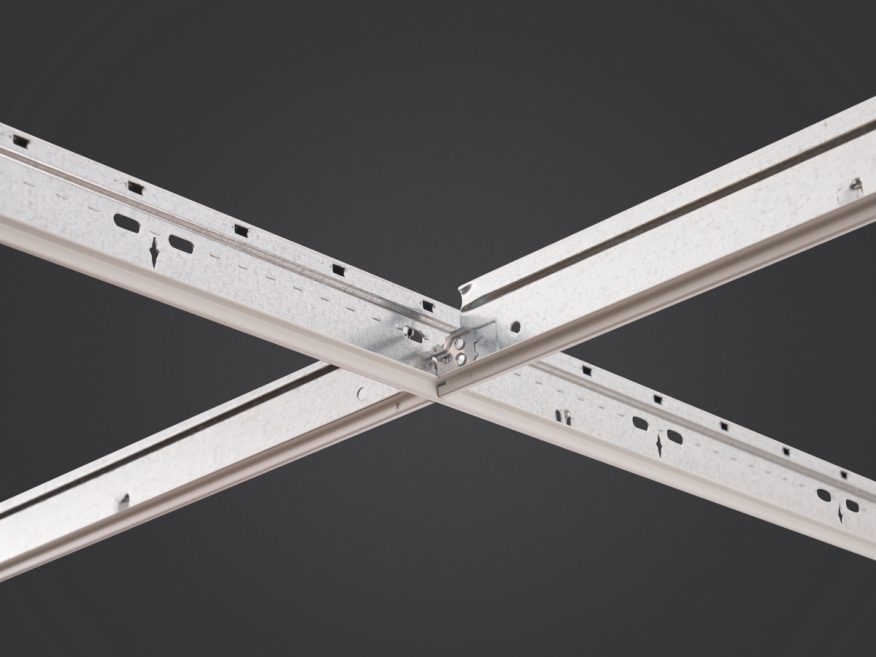

What do I need to build this Suspension System?
- KEY:
- 1) Main Tee
- 2) Cross Tee
- 3) Wall Molding
Estimate Your Ceiling Materials
Quickly and easily calculate how many ceiling panels, molding and tees you'll need for your project!
Main Tees
- Firecode®
| Item Number | ASTM Class | Length | Height | Fire Class | Seismic IBC | Rated Load | |||
|---|---|---|---|---|---|---|---|---|---|
| 4' Hanger Spacing | 5' Hanger Spacing | 6' Hanger Spacing | |||||||
| DXI26HRC | Heavy Duty | 12.00 foot | 1.81 inch | Class A | A-F | 16 lb./LF | 8.5 lb./LF | 5.1 lb./LF | |
| DXI24HRC | Intermediate Duty | 12.00 foot | 1.81 inch | Class A | A-C | 12 lb./LF | 6.7 lb./LF | 4.2 lb./LF | |
Cross Tees
- Firecode®
| Item Number | Length | Height | Fire Class |
|---|---|---|---|
| DXI424HRC | 4.00 foot | 1.81 inch | Class A |
| DXI224HRC | 2.00 foot | 1.81 inch | Class A |
| DXI4224HRC | 42.00 inch | 1.81 inch | Class A |
| DXI3024HRC | 30.00 inch | 1.81 inch | Class A |
| DXI824HRC | 8.00 foot | 1.81 inch | Class A |
| DXI2124HRC | 21.00 inch | 1.81 inch | Class A |
| DXI624HRC | 6.00 foot | 1.81 inch | Class A |
| DXI2724HRC | 27.00 inch | 1.81 inch | Class A |
| DXI5724HRC | 57.00 inch | 1.81 inch | Class A |
| DXI5424HRC | 54.00 inch | 1.81 inch | Class A |
| DXI524HRC | 5.00 foot | 1.81 inch | Class A |
