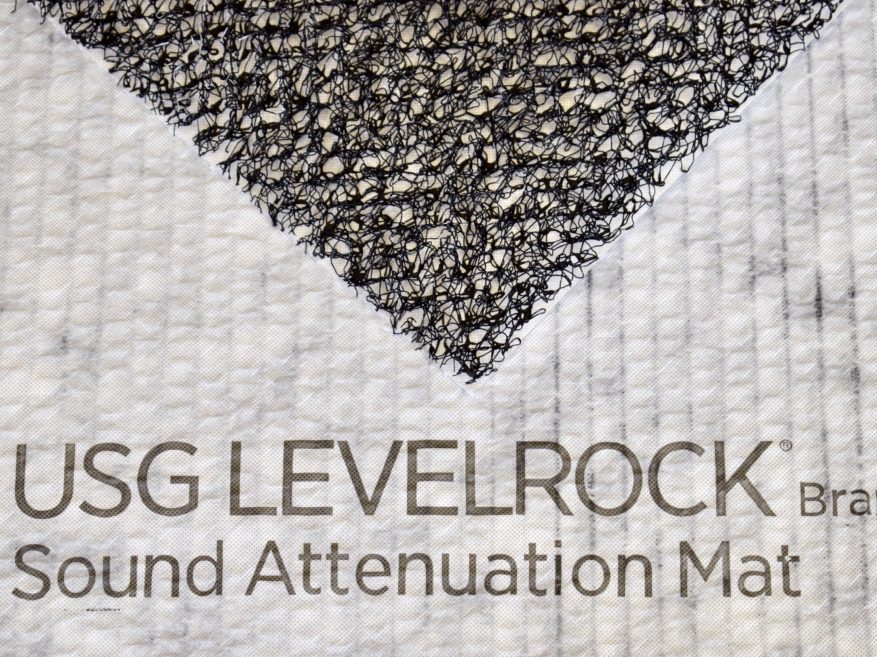

Levelrock® Brand SAM-N40™ Sound Attenuation Mat

Durable sound attenuation mat increases the IIC and STC values to meet or exceed IBC code requirements.

Overview

Overview

Durable sound attenuation mat increases the IIC and STC values to meet or exceed IBC code requirements.
Levelrock® Brand SAM-N40™ Sound Attenuation Mat can be used over a variety of subfloors including plywood, OSB, pre-cast concrete, concrete and metal pan decking.

Main Features

Levelrock® Brand SAM-N40™ Sound Attenuation Matprovides an economical method of improving the IIC and STC ratings of wood frame buildings. The 0.4-in. mat requires a minimum 1-in. topping of Levelrock® Brand Floor Underlayment.Levelrock® Brand SAM-N40™ Sound Attenuation Mat is:

  • Able to improve STC and IIC results — sound tests were conducted in an NVLAP-accredited laboratory
  • Made from a durable nylon polymer with a special moisture control backing
  • Is installed by an authorized applicator.

Applications

  • Administrative Offices
  • Classrooms
  • Corridors and Hallways
  • Dormitories
  • Executive Areas, Conference Areas and Board Rooms
  • Guest Rooms and Suites
  • Lobbies and Reception Areas
  • Media Centers, Music Rooms and Libraries
  • Multi-Family Residential and Condos
  • Open Plan Offices
  • Single-Family Residential
  • Theatres
  • Traditional Offices

Specifications

Submittal Sheet PDF 624.0 KB

Physical Data

  • Substrate Type Wood, Concrete, Corrugated Steel Deck, Structural Panels
  • Sound Mat/Board Thickness 2/5 in. (10 mm)
  • Min. Underlayment Thickness 1 in. (25 mm)

Installation

Installation Guide PDF 697.9 KB

play

Levelrock® Brand Sound Attenuation Mats - Grandma

play

Levelrock® Brand Sound Attenuation Mats - Pets

play

Levelrock® Brand Sound Attenuation Mats - Flamenco

Documents & Files

Data Sheets & Specifications

Data/Submittal Sheet (English) PDF 624.0 KB

White Papers

Sell Sheet (English) PDF 537.3 KB

Catalogs & Brochures

Brochure (English)

Installation & Technical Manuals

Technical Guide (English) PDF 418.3 KB
Installation Guide (English) PDF 697.9 KB

SDS, Certifications & Reports

SDS (English)
SDS (Spanish) PDF 72.2 KB
