Item: 221656

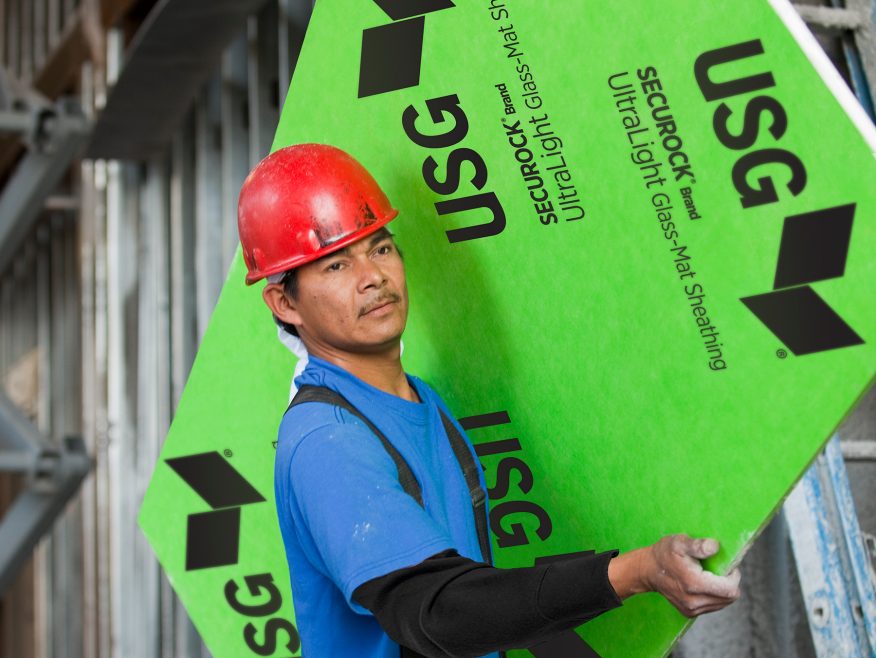

Securock® Brand UltraLight Glass-Mat Sheathing Firecode® X
Ultralightweight 5/8 in. (15.9 mm) Type X glass-mat sheathing with moisture and mold resistance—up to 15% lighter than other glass-mat sheathings
Overview
Overview
Securock® Brand UltraLight Glass-Mat Sheathing Firecode® X are lightweight Type X glass-mat sheathing panels with moisture and mold resistance—up to 15% lighter than other glass-mat sheathings. The panels feature a noncombustible, moisture-resistant gypsum core that is encased in a coated fiberglass facer mat to maximize coverage of fluid-applied air/water barrier systems. When tested in accordance with ASTM D3273, Standard Test Method for Resistance to Growth of Mold on the Surface of Interior Coatings in an Environmental Chamber, the panels score a "10." These sheathing panels are intended for use under exterior claddings where conventional gypsum sheathing products have traditionally been used, such as brick veneer, properly detailed Exterior Insulation Finish Systems (EIFS), clapboard siding, panel siding and conventional siding. The panels are UL Classified for fire resistance and can be used in any UL Design in which Type USGX panels are listed.
Main Features
- Ultralightweight Type X glass-mat sheathing with moisture and mold resistance—up to 15% lighter than other glass-mat sheathings
- Feature a coated fiberglass facer mat to maximize coverage of fluid-applied air/water barrier systems
- Treated gypsum core, combined with fiberglass face and back, offers exceptional water resistance
- Comply with ASTM C1177, Standard Specification for Glass Mat Gypsum Substrate for Use as Sheathing, for Type X and glass-mat water-resistant gypsum substrate
- Score a "10" when tested in accordance with ASTM D3273, Standard Test Method for Resistance to Growth of Mold on the Surface of Interior Coatings in an Environmental Chamber
- Underwriters Laboratories Inc. (UL) Classification as to fire resistance, surface burning characteristics and noncombustibility
- Guaranteed for five years against manufacturing defects and have a 12-month limited-exposure warranty
Applications
- Administrative Offices
- Auditoriums and Gymnasiums
- Bars Restaurants and Dining Areas
- Department Stores and Boutiques
- Dormitories
- Exterior Soffits and Indoor Parking Garage
- Guest Rooms and Suites
- Health and Fitness
- Multi-Family Residential and Condos
- Traditional Offices
Specifications
Submittal Sheet
PDF 290.6 KB
Performance
- Mold & Mildew Resistance Yes
-
Fire Resistance
- Fire Rating Type X
-
ASTM E84
- Flame Spread 0
- Smoke Developed 0
- Fire Rating Type X
-
ASTM Type
ASTM C1177; ASTM C473; ASTM D3273; ASTM E136; ASTM E84; ASTM E96
- Flame Spread 0
- Smoke Developed 0
- Fire Rating Type X
- UL Type Designations USGX (5/8 in. only)
Physical Data
- Thickness (in.) 5/8
- Edge Square Edge
- Panel Size 4 ft. x 8-12 ft.
- Nominal Weight 2.2 lb./sq. ft.
- Material Gypsum with Fiberglass Face
Warranty
Installation
Installation Guide PDF 11.1 MB
Documents & Files
Data Sheets & Specifications
| Data/Submittal Sheet (English) | PDF 290.6 KB |
| Architecturall Specification (English) | DOCX 130.6 KB |
White Papers
| Sell Sheet (English) |
Design Files
| CAD and Revit Files (English) |
Installation & Technical Manuals
| Technical Guide (English) | PDF 128.2 KB |
| Installation Guide (English) | PDF 11.1 MB |
SDS, Certifications & Reports
| SDS (English) | PDF 474.4 KB |
| SDS (Spanish) | PDF 515.2 KB |
Warranties
| Warranties (English) | PDF 123.8 KB |
Sustainability
| HPD (English) |
| EPD (English) |
