Item: 183300

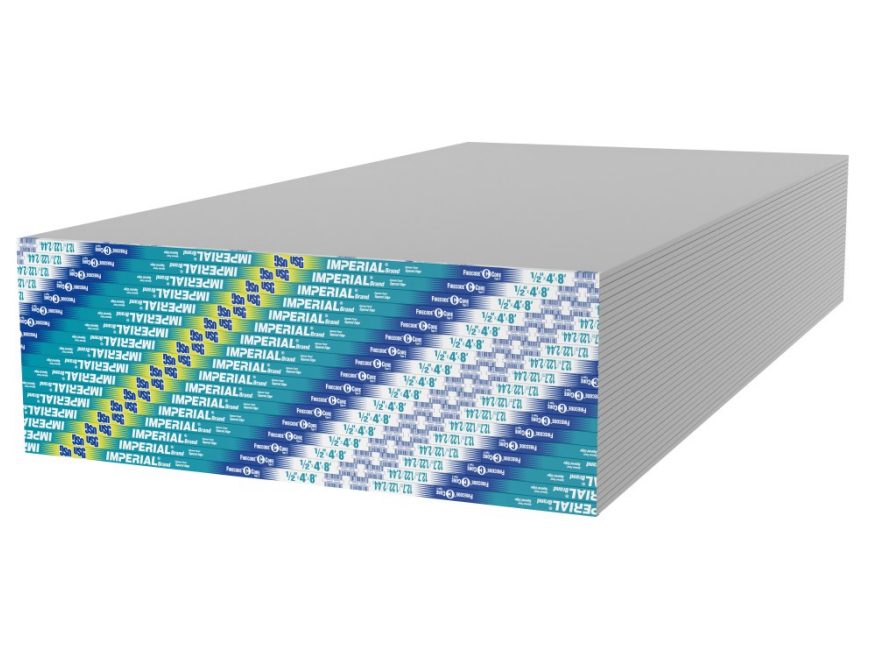

Sheetrock® Brand Gypsum Base Imperial® Firecode® C
1/2 in. (12.7 mm) enhanced proprietary Type X rigid gypsum base for fire-rated veneer plaster systems
Overview
Overview
Sheetrock® Brand Gypsum Base Imperial® Firecode® C (UL Type IP-X2) are 1/2 in. (12.7 mm) enhanced proprietary Type X gypsum panels that provide a rigid gypsum base for fire-rated veneer plaster systems. The panels feature a noncombustible gypsum core that is encased in a distinctive, 100% recycled blue face paper that controls water absorption, provides a strong plaster bond and resists plaster slide or slip under the trowel. The face paper is folded around the long edges to reinforce and protect the core, and the ends are cut square and even. The long edges of the panels are either tapered or square, allowing joints to be reinforced and concealed with Sheetrock® Brand joint treatment systems. The panels are UL Classified for fire resistance and can be used in any UL Design in which Type IP-X2 panels are listed. On the face along the long edge of each panel, the UL Type Designation is printed for easy identification by building inspectors.
Main Features
- 1/2 in. (12.7 mm) enhanced proprietary Type X rigid gypsum base for fire-rated veneer plaster systems
- Feature a noncombustible gypsum core encased in a distinctive, 100% recycled blue face paper that controls water absorption, provides a strong plaster bond and resists plaster slide or slip under the trowel
- Designed for direct or resilient attachment to wood or steel framing
- Comply with ASTM C1396, Standard Specification for Gypsum Board, for 1/2 in. (12.7 mm), Type X and gypsum base for veneer plaster
- Underwriters Laboratories Inc. (UL) Classification as to fire resistance, surface-burning characteristics and noncombustibility
- Achieved GREENGUARD Gold Certification and qualifies as a low VOC emitting material (meets CA 01350)
Specifications
Submittal Sheet
PDF 716.9 KB
Performance
- Mold & Mildew Resistance No
-
Fire Resistance
- Fire Rating Enhanced Proprietary Type X
-
ASTM E84
- Flame Spread 15
- Smoke Developed 0
- Fire Rating Enhanced Proprietary Type X
-
ASTM Type
ASTM C1396; ASTM C473; ASTM E136; ASTM E84
- Flame Spread 15
- Smoke Developed 0
- Fire Rating Enhanced Proprietary Type X
- UL Type Designations IP-X2
Sustainability
- GREENGUARD Certification Yes
Physical Data
- Thickness (in.) 1/2
- Edge Eased Edge; Round; Square Edge; Tapered Edge
- Panel Size 48 in. x 8-12 ft.
- Nominal Weight 2.0 lb./sq. ft.
Installation
Installation Guide PDF 55.9 KB
Documents & Files
Data Sheets & Specifications
| Data/Submittal Sheet (English) | PDF 716.9 KB |
Catalogs & Brochures
| System Catalog (English) |
Installation & Technical Manuals
| Technical Guide (English) | PDF 128.2 KB |
| Installation Guide (English) | PDF 55.9 KB |
SDS, Certifications & Reports
| SDS (English) | PDF 160.1 KB |
| SDS (Spanish) | PDF 167.2 KB |
