USG Halcyon™ Eco Acoustical Panels with ClimaPlus™ Performance, and USG Donn® Brand Identitee® DXI™ Acoustical Suspension System
USG Halcyon™ Eco Acoustical Panels with ClimaPlus™ Performance
USG Halcyon™ Eco Acoustical Panels with ClimaPlus™ Performance, and USG Donn® Brand Identitee® DXI™ Acoustical Suspension System
USG Halcyon™ Eco Acoustical Panels with ClimaPlus™ Performance
Item: 97312

Halcyon™ Eco Acoustical Panels

Sustainable, fine-textured panels with a plant-based binder, with exceptional noise reduction for open-plan offices. Nondirectional, monolithic visual reduces installation time and waste.

Explore Sizes & Options

Item: 97312

Color: White

Order a Sample

Overview

Overview

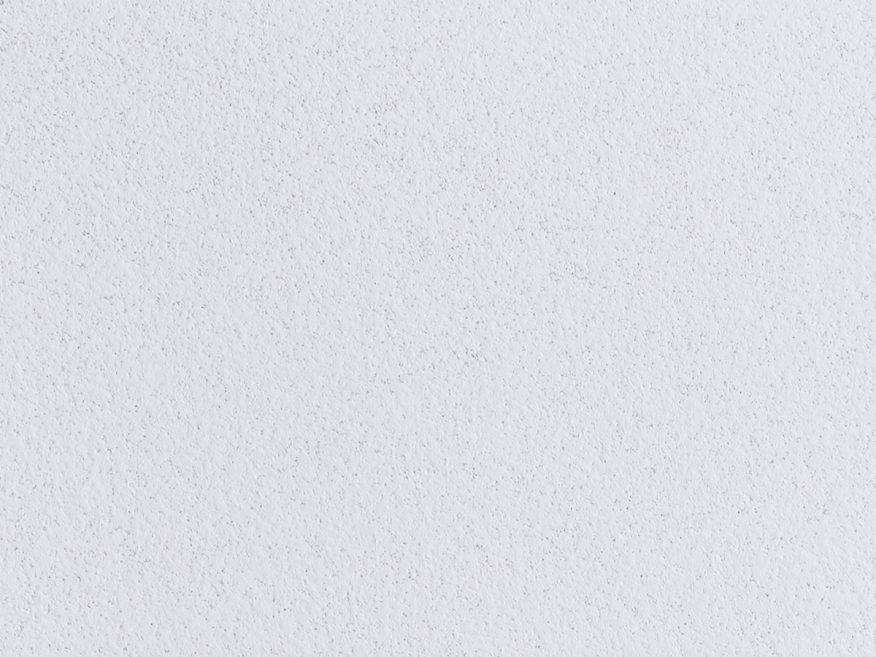

Halcyon™ Eco Acoustical Panels offer a smooth, bright, white acoustical panel with balanced acoustical performance. Halcyon™ Eco panels are easy to maintain and due to the plant-based fiberglass substrate these panels inherently resist the growth of mold and mildew. Halcyon™ Eco is part of the Ecoblueprint portfolio – meeting today’s sustainability standards.

Sound Absorption

0.95 NRC

Sound Attenuation

20 CAC

Light Reflectance

Up To 0.90

Recycled Content

40 %

Main Features

  • Exceptional noise reduction with NRC values up to 0.95, CAC values of 20 and AC values of 190 for open–plan offices.
  • High light reflective finish (LR-0.90) reduced light fixtures and energy use.
  • Washable and scrubbable finish.
  • Impact and scratch resistant.
  • Nondirectional, monolithic visual reduces installation time and waste.
  • ClimaPlus™ 30-year lifetime system warranty against visible sag, mold and mildew.
  • Halcyon™ Eco is part of the Ecoblueprint portfolio – meeting today’s sustainability standards.
  • Halcyon™ Eco is manufactured with a plant-based binder.
  • Halcyon™ Eco is GREENGUARD Gold Certified for low emitting performance.
  • Postconsumer recycled content. Up to 34%.

Applications

  • Administrative Offices
  • Cafeterias
  • Classrooms
  • Convention and Meeting Rooms
  • Executive Areas, Conference Areas and Board Rooms
  • Galleries and Exhibit Spaces
  • Lobbies and Reception Areas
  • Open Plan Offices
  • Patient Rooms
  • Traditional Offices

Specifications

Data Sheet PDF 1.6 MB

Performance

  • Sound Absorption (NRC)
    NRC stands for Noise Reduction Coefficient. It is a measure of how much sound is absorbed by a given material. It is listed as a decimal and relates to percentage sound absorbed.
    0.95
  • Sound Attenuation (CAC) 20
  • Light Reflectance 0.90
  • Mold & Mildew Resistance Yes
  • Fire Resistance
    • Fire Rating Class A
  • ASTM E1264
    • astm-e1264-class XII: Glass fiber base with membrane-faced overlay, E: Lightly textured; G: Smooth, Form 2: Cloth
  • ASTM E84
    • Flame Spread 25 or less
    • Smoke Developed 50 or less
    • Fire Rating Class A

Sustainability

  • GREENGUARD Certification Yes
  • Recycled Content 40%

Physical Data

  • Thickness (in.) 1
  • Color White
  • Edge Square Edge
  • Panel Size 2 ft. x 2 ft.
  • Material Fiberglass

Documents & Files

Data Sheets & Specifications

Data/Submittal Sheet (English) PDF 1.6 MB
Architectural Specification (English) DOCX 73.7 KB

Catalogs & Brochures

System Catalog (English) PDF 45.2 MB

Installation & Technical Manuals

Installation Guide (English) PDF 822.1 KB

SDS, Certifications & Reports

SDS (English) PDF 132.2 KB
SDS (Spanish) PDF 133.7 KB

Warranties

Warranties (English) PDF 146.0 KB
