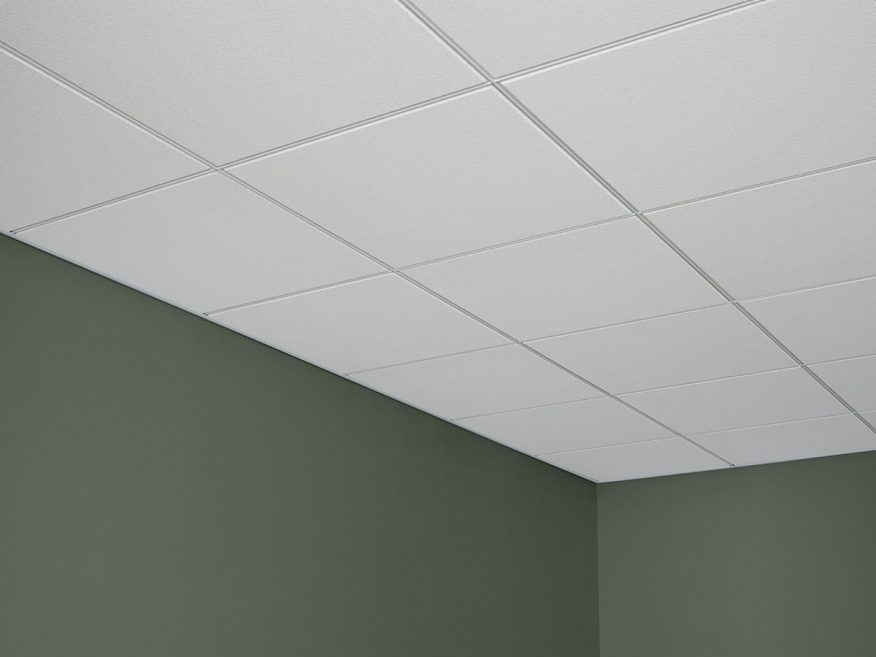

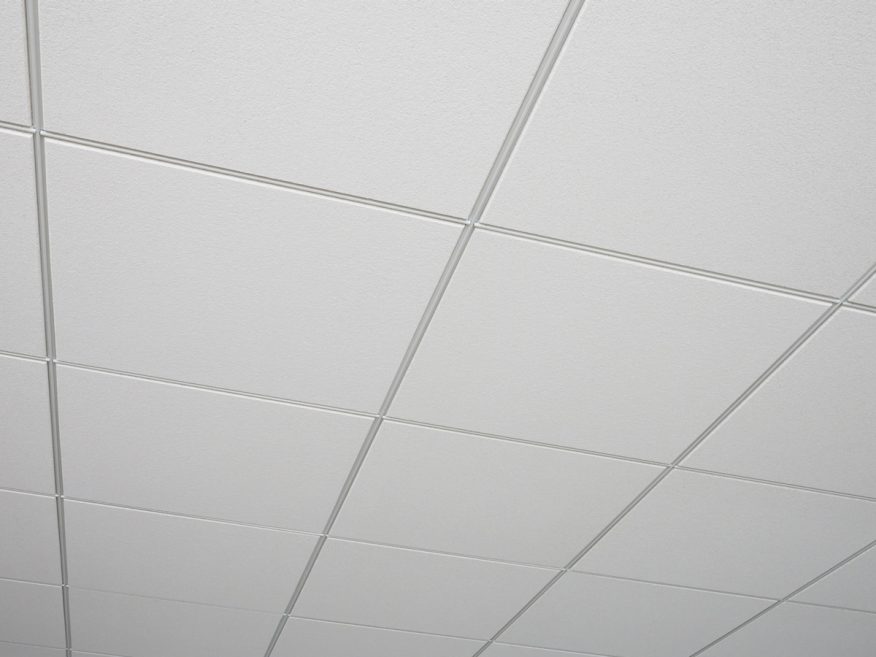

Millennia® Illusion™ Acoustical Panels

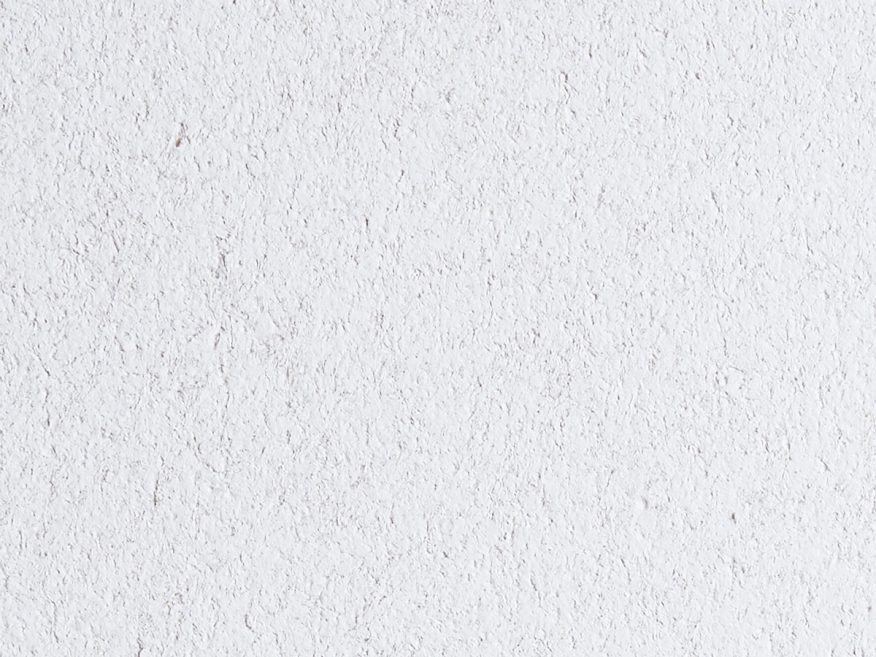

Fine-textured panels. Superior sag resistance, outstanding dimensional stability, and high noise reduction coefficient (NRC) with Illusion™ Two/24 face-cut pattern.
Explore Sizes & Options
Interline Tapered
Shadowline TaperedStandard Colors
Overview
Overview
Superior sag resistance, outstanding dimensional stability, and available in high noise reduction coefficient (NRC) options these naturally fine textured and fast-installing panels are a viable product for many applications. Millennia® Illusion™ Acoustical Ceiling Panels are easy to install and clean, and their high level sag, mold and mildew resistance means they won't need to be replaced often. With excellent noise cancelling properties and durability, these panels are a sound, economical choice for any ceiling.
Sound Absorption
0.70 NRC
Sound Attenuation
35 CAC
Light Reflectance
Up To 0.85
Recycled Content
79 %
Main Features
Millennia® Illusion™Acoustical Ceiling Panels are manufactured using a unique process that maximizes sound and anti-sag performance, producing excellent noise reduction coefficient (NRC) and solid ceiling attenuation class (CAC) performance. They are an economic alternative to face-laminated panels while the non-directional pattern ensures consistent appearance, making these panels a reliable, long-term choice.- ClimaPlus™ 30-year lifetime system warranty against visible sag, mold and mildew
- Available with High Recycled Content (HRC)
- Low-emitting product meets CA Specification 01350, California Department of Health Services Standard Practice for the testing of VOC emissions
Applications
- Administrative Offices
- Bars Restaurants and Dining Areas
- Classrooms
- Department Stores and Boutiques
- Executive Areas, Conference Areas and Board Rooms
- Galleries and Exhibit Spaces
- Lobbies and Reception Areas
- Media Centers, Music Rooms and Libraries
- Patient Rooms
- Traditional Offices
Specifications
Performance
- Sound Absorption (NRC) 0.70
- Sound Attenuation (CAC) 35
- Light Reflectance 0.85
- Mold & Mildew Resistance Yes
-
Fire Resistance
- Fire Rating Class A
-
ASTM E1264
- astm-e1264-class III: Mineral base with painted finish, E: Lightly textured; G: Smooth, Form 1: Nodular
-
ASTM E84
- Flame Spread 25 or less
- Smoke Developed 50 or less
- Fire Rating Class A
Sustainability
- GREENGUARD Certification Yes
- Recycled Content 79%
- VOC Emissions Low-emitting
Physical Data
- Thickness (in.) 3/4
- Color White
- Edge Interline Tapered
- Panel Size 2 ft. x 4 ft.
- Material Mineral Fiber
Warranty
-
Warranty
USG Ceilings Commercial Application Warranty (English) - SC2102PDF 148 KB
Installation
Installation Guide PDF 822.1 KB
USG Ceilings Portfolio Series: Episode 1 - Installation & Edge Style
USG Ceilings Portfolio Series: Episode 2 - Performance Features
USG Ceilings Portfolio Series: Episode 3 - USG Panel Types
Documents & Files
Data Sheets & Specifications
| Data/Submittal Sheet (English) | PDF 995.7 KB |
| Architecturall Specification (English) | DOCX 131.1 KB |
Catalogs & Brochures
| System Catalog (English) | PDF 45.2 MB |
Installation & Technical Manuals
| Technical Guide (English) | |
| Installation Guide (English) | PDF 822.1 KB |
SDS, Certifications & Reports
| SDS (English) | PDF 191.4 KB |
| SDS (Spanish) | PDF 193.8 KB |
Warranties
| Warranties (English) | PDF 147.7 KB |
