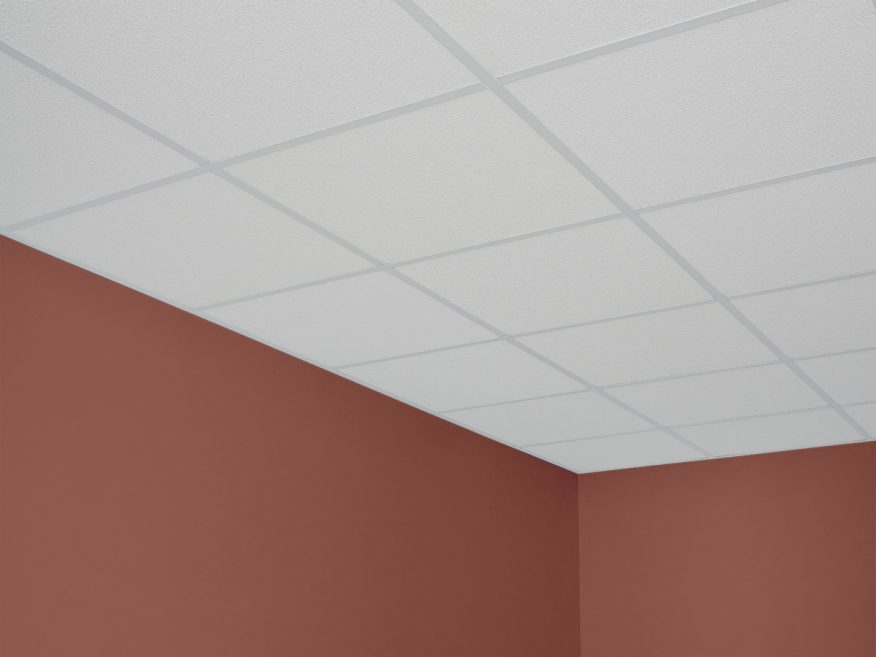

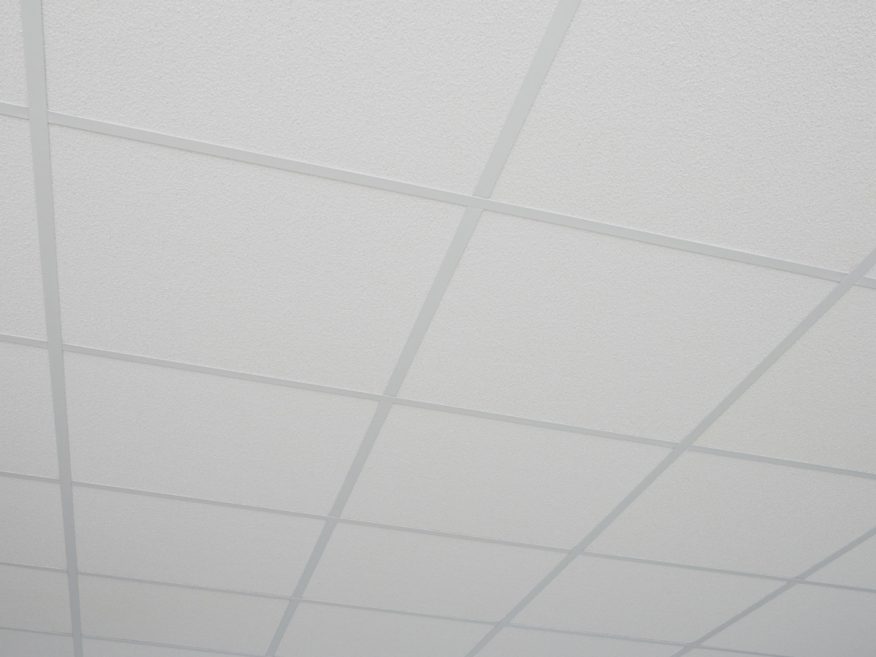

USG Premier Nubby™ Acoustical Panels with ClimaPlus™ Performance, and USG Donn® Brand DX® Acoustical Suspension System
USG Premier Nubby™ Acoustical Panels with ClimaPlus™ Performance
USG Premier Nubby™ Acoustical Panels with ClimaPlus™ Performance, and USG Donn® Brand DX® Acoustical Suspension System
Item: 7002G

Premier Nubby™ Acoustical Panels

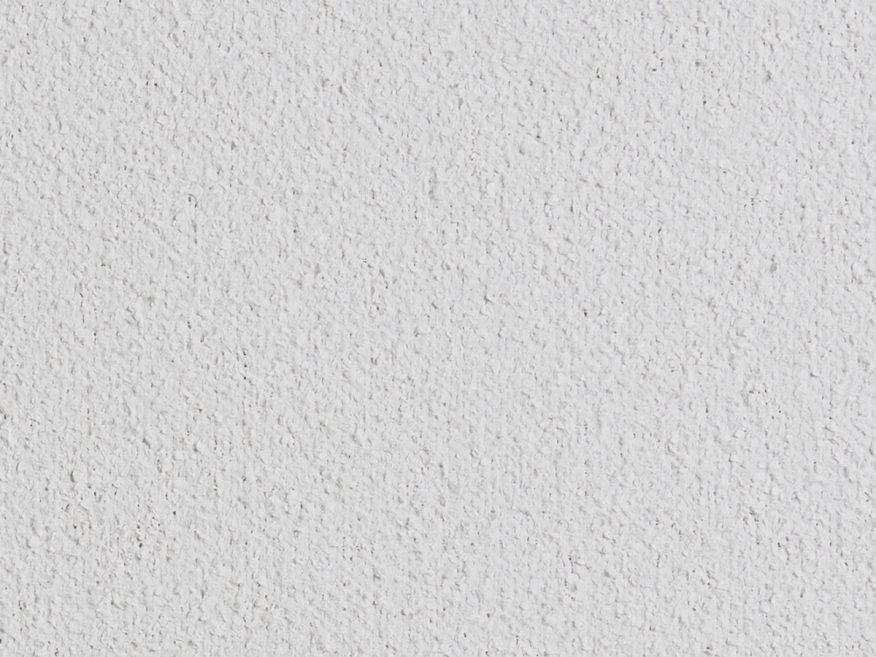

Lightly textured panels. High-quality nubby cloth facing offers consistent, fine-textured appearance.

Explore Sizes & Options

Item: 7002G

Acoustics: 0.90 NRC

Size: 2 ft. x 2 ft.

Edge: Square Edge

Color: White

Standard Colors

Order a Sample

Overview

Overview

With ClimaPlus™ Performance
Nubby cloth-facing design with superior noise reduction. Premier Nubby™ fine-textured acoustical panels deliver a .85 or .90 NRC with a unique consistent appearance.

Sound Absorption

0.90 NRC

Light Reflectance

Up To 0.82

Recycled Content

33 %

Main Features

Premier Nubby™ fiberglass panels reduce sagging and inherently resist the growth of mold and mildew. Select panels feature a foil backing that act as a sound barrier and resist "breathing" so the surface stays cleaner longer.
  • High-quality nubby cloth facing offers consistent, fine-textured appearance
  • Excellent noise reduction meets the demanding needs of open plan spaces
  • Lightweight fiberglass basemat makes installation fast and easy
  • ClimaPlus™ 30-year lifetime system warranty for visible sag, mold and mildew

Applications

  • Auditoriums and Gymnasiums
  • Convention and Meeting Rooms
  • Executive Areas, Conference Areas and Board Rooms
  • Galleries and Exhibit Spaces
  • Lobbies and Reception Areas
  • Mall Interior Spaces
  • Media Centers, Music Rooms and Libraries
  • Open Plan Offices

Specifications

Data Sheet PDF 709.4 KB

Performance

  • Sound Absorption (NRC)
    NRC stands for Noise Reduction Coefficient. It is a measure of how much sound is absorbed by a given material. It is listed as a decimal and relates to percentage sound absorbed.
    0.90
  • Light Reflectance 0.82
  • Mold & Mildew Resistance Yes
  • Fire Resistance
    • Fire Rating Class A
  • ASTM E1264
    • astm-e1264-class XII: Glass fiber base with membrane-faced overlay, E: Lightly textured, Form 2: Water-Felted
  • ASTM E84
    • Flame Spread 25 or less
    • Smoke Developed 50 or less
    • Fire Rating Class A

Sustainability

  • Recycled Content 33%

Physical Data

  • Thickness (in.) 1
  • Color White
  • Edge Square Edge
  • Panel Size 2 ft. x 2 ft.
  • Material Fiberglass

Installation

Installation Guide PDF 822.1 KB

play

USG Ceilings Portfolio Series: Episode 1 - Installation & Edge Style

play

USG Ceilings Portfolio Series: Episode 2 - Performance Features

play

USG Ceilings Portfolio Series: Episode 3 - USG Panel Types

Documents & Files

Data Sheets & Specifications

Data/Submittal Sheet (English) PDF 709.4 KB
Architectural Specification (English) DOCX 131.1 KB

Catalogs & Brochures

System Catalog (English) PDF 45.2 MB

Installation & Technical Manuals

Technical Guide (English)
Installation Guide (English) PDF 822.1 KB

SDS, Certifications & Reports

SDS (English) PDF 94.0 KB

Warranties

Warranties (English) PDF 147.7 KB

Ask a question

Our customer support team will get back to you as soon as possible.

Question Guidlines

  • Questions should relate to this product specifically.
  • For help with pricing, availability, or delivery, please call 800.874.4968 (Monday–Friday, 7am–6pm Central)
  • All questions and answers follow USG’s Terms & Conditions.
  • Your question and USG’s answer may be posted to this page in the future, but none of your personal info will be included.

 Thanks for your message. We’ll be in touch!

q & a

  • Why is LR important?

    When the proper type of lighting fixture is used with a high LR ceiling, there can be savings in both initial construction costs as well as long-term energy costs. The concept is to use the ceiling to reflect light back into the occupied space.

  • Why is NRC important?

    NRC is very important in open office plan environments where there are few full height walls to help absorb or block sound.

  • What does ClimaPlus™ mean?

    USG’s line of products with ClimaPlus™ Performance have additional resistance to temperature and humidity. This in turn provides additional resistance to sagging and warping of the ceiling panels.

  • What does LR stand for?

    LR stands for light reflectance. It is a measure of the percentage of light which is reflected off of a given panel surface. Typically, the whiter and smoother the ceiling panel, the higher the LR value.

  • What is NRC?

    NRC stands for Noise Reduction Coefficient. It is a measure of how much sound is absorbed by a given material. It is listed as a decimal and relates to percentage sound absorbed.

  • When referring to ceiling panels, what is the meaning of type, form and pattern?

    These categories refer to ASTM Test E 1264.
    Type refers to the base material of the panel.
    Form refers to the manufacturing process of the panel.
    Pattern refers to the type of texture or pattern in the panel.

  • What is the difference between Class A and Firecode® branded materials?

    Class A signifies that a panel attained a flame spread index of 25 or less (based on 100 for untreated red oak) when tested in accordance with the Standard ASTM E 84. The Firecode® brand signifies that the panel has been classified as a protective membrane in a floor-ceiling or roof-ceiling assembly in accordance with the Standard ASTM E 119. All Firecode® protective membranes offered by USG have attained a Class A rating.

  • How many acoustical panel types does USG offer?

    USG offers four major types of acoustical panels as well as Gypsum based panels for special applications. They are: Wet-Felted, Cast, "X" Technology and Fiberglass.

  • How far in advance can I order ceiling panel before installation?

    Storage time of materials at the job site should be as short as possible, and environmental conditions should be as near as possible to those specified for occupancy. Excess humidity during storage can cause expansion of material and possible warp, sag, or poor fit after installation. Chemical changes in the mat and/or coatings can be aggravated by excess humidity and cause discoloration during storage, even in unopened cartons. Cartons should be removed from pallets and stringers to prevent distortion of material. Long-term (6-12 months) storage under uncontrolled environmental conditions should be avoided.

  • What is the minimum NRC recommended for open office plan environments?

    It is best to use a minimum of .70 NRC and up to .80 - .90 NRC panel for this type of application.

  • What is CAC?

    CAC stands for Ceiling Attenuation Class. It is the measure of the blocking of sound through one ceiling plane, into the plenum above, and back through the other ceiling plane to an adjacent space.

  • Why would I use one ceiling panel type over another?

    The different panel substrates provide panels with unique characteristics. The use of the different panels will vary based on specific needs and application.
