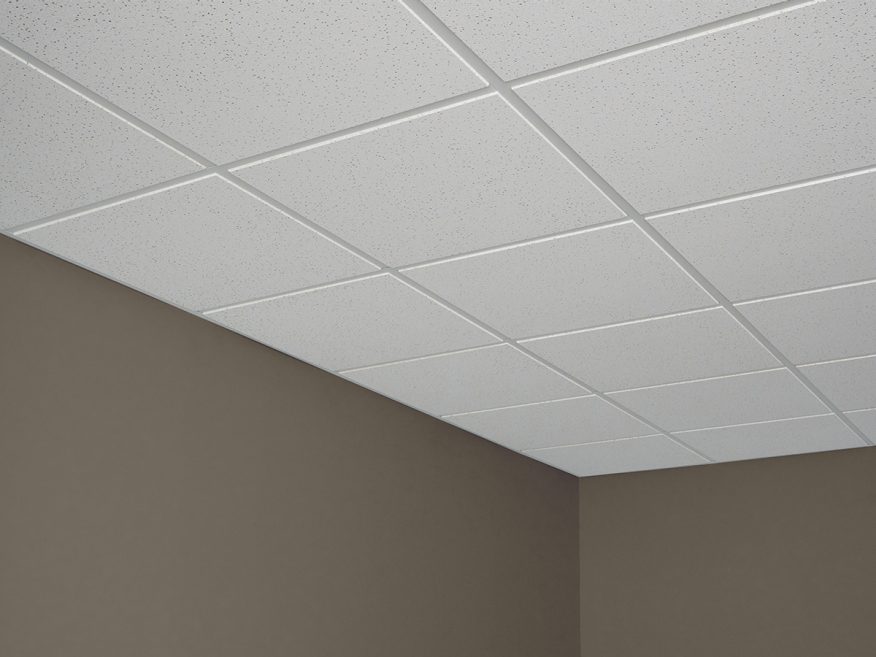

Radar™ High-NRC Acoustical Panels
Lightly textured panels. Designed for greater sound control in open-plan areas with a great look even on a budget.
Explore Sizes & Options
Fineline Bevel
Shadowline Tapered
Square EdgeStandard Colors
Overview
Overview
Designed for maximum sound absorption and reduction with a great look even on a budget. Radar™ High-NRC Acoustical Ceiling Panels are great looking, clean panels at an economical price. Their noise reduction qualities, aesthetics and high light reflectance make them an excellent choice for a variety of ceiling projects in conference rooms, privacy rooms and open office plans.
Sound Absorption
0.70 NRC
Sound Attenuation
35 CAC
Light Reflectance
Up To 0.84
Recycled Content
37 %
Main Features
Radar™ High-NRC Acoustical Ceiling Panels are great looking, clean panels at an economical price. Their noise reduction qualities, aesthetics and high light reflectance make them an excellent choice for a variety of ceiling projects in conference rooms, privacy rooms and open office plans.These easy-to-install panels offer long-lasting superior sound control.
- Non-directional all-purpose ceiling pattern
- High-NRC/High-CAC formulation helps comply with ANSI S12.60 classroom guidelines
- Available with 35 CAC for increased room-to-room speech privacy and .70 NRC for greater sound control in open-plan areas
- Light Reflectance (LR): .84
- ClimaPlus™ 30-year lifetime system warranty against visible sag, mold and mildew
- USDA Certified Biobased Product
- Available with High Recycled Content (HRC)
- Low-emitting product meets CA Specification 01350, California Department of Health Services Standard Practice for the testing of VOC emissions
Applications
- Administrative Offices
- Cafeterias
- Classrooms
- Convention and Meeting Rooms
- Corridors and Hallways
- Department Stores and Boutiques
- Grocery Stores
- Health and Fitness
- Lobbies and Reception Areas
- Mechanical Rooms
- Media Centers, Music Rooms and Libraries
- Nurseries and Birthing Rooms
- Patient Rooms
- Restrooms, Utility Rooms and Loading Docks
- Stairways and Elevator Shafts
- Warehouses
Specifications
Performance
- Sound Absorption (NRC) 0.70
- Sound Attenuation (CAC) 35
- Light Reflectance 0.84
- Mold & Mildew Resistance Yes
-
Fire Resistance
- Fire Rating Class A
-
ASTM E1264
- astm-e1264-class III: Mineral base with painted finish, C: Perforated, small holes; D: Fissured; E: Lightly textured, Form 2: Water-Felted
-
ASTM E84
- Flame Spread 25 or less
- Smoke Developed 50 or less
- Fire Rating Class A
Sustainability
- GREENGUARD Certification Yes
- Recycled Content 37%
- VOC Emissions Low-emitting
- Bio Based Yes
Physical Data
- Thickness (in.) 7/8
- Color White
- Edge Shadowline Tapered
- Panel Size 2 ft. x 2 ft.
- Material Mineral Fiber
Warranty
-
Warranty
USG Ceilings Commercial Application Warranty (English) - SC2102PDF 148 KB
Installation
Installation Guide PDF 822.1 KB
USG Ceilings Portfolio Series: Episode 1 - Installation & Edge Style
USG Ceilings Portfolio Series: Episode 2 - Performance Features
USG Ceilings Portfolio Series: Episode 3 - USG Panel Types
Documents & Files
Data Sheets & Specifications
| Data/Submittal Sheet (English) | |
| Architecturall Specification (English) | DOCX 131.1 KB |
Catalogs & Brochures
| System Catalog (English) | PDF 46.7 MB |
| Brochure (English) | PDF 193.1 KB |
Design Files
| CAD and Revit Files (English) |
Installation & Technical Manuals
| Technical Guide (English) | |
| Installation Guide (English) | PDF 822.1 KB |
SDS, Certifications & Reports
| SDS (English) | |
| SDS (Spanish) | |
| Certificates (English) | PDF 500.2 KB |
Warranties
| Warranties (English) | PDF 147.7 KB |
Sustainability
| HPD (English) |
| EPD (English) |
