Cheyenne™ Acoustical Panels
These exceptionally durable panels are heavily textured to enhance surface appearance and provide excellent sound control.
Key Documents & Design Files
Explore Sizes & Options
ShadowlineStandard Colors
Overview
Overview

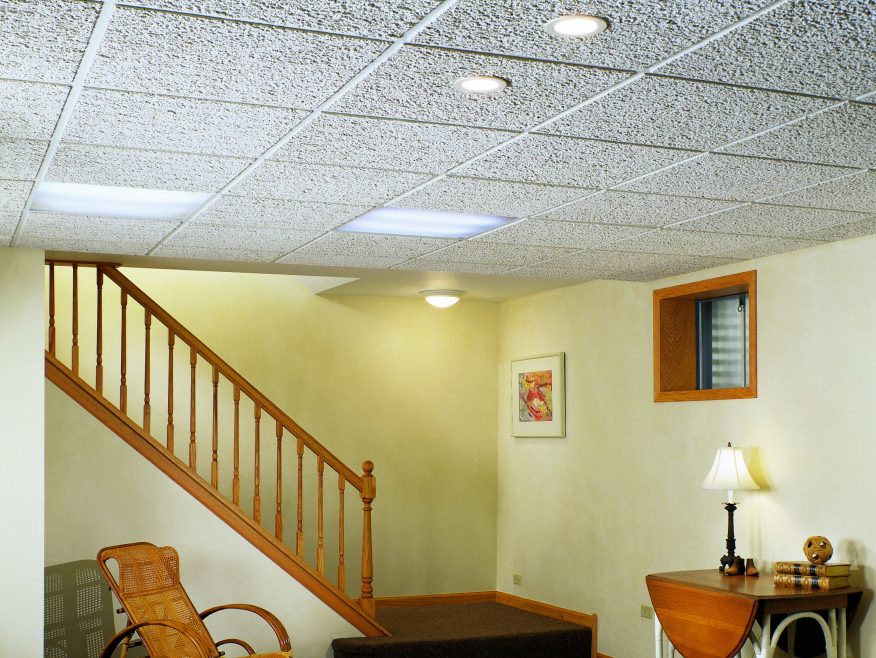

Cheyenne™ Acoustical Ceiling Panels offer a heavy texture that masks nicks and scratches to stay cleaner longer. Due to their good sound control and resistance to abuse, these panels are optimal for stores, restaurants, conference rooms, basements, home offices, entertainment rooms and more.
Main Features
Cheyenne™ Acoustical Ceiling Panels are easy to install, come in a variety of colors and are designed to last as they resist "breathing" (air passing through the surface).- Noise Reduction Coefficient (NRC): .65
- Ceiling Attenuation Class (CAC) Min: 35
- Light Reflectance (LR): Up to .70
- Class A
- Heavy-texture
- High total sound control
- Durable
- Easy installation
- Zero-emissions (VOC)
- USDA certified biobased product
- Available with high recycled content
Applications
- Administrative Offices
- Bars Restaurants and Dining Areas
- Cafeterias
- Classrooms
- Convention and Meeting Rooms
- Corridors and Hallways
- Department Stores and Boutiques
- Executive Areas, Conference Areas and Board Rooms
- Galleries and Exhibit Spaces
- Guest Rooms and Suites
- Health and Fitness
- Lobbies and Reception Areas
- Mall Interior Spaces
- Media Centers, Music Rooms and Libraries
- Nurseries and Birthing Rooms
- Patient Rooms
- Traditional Offices
Specifications
Performance
- Sound Absorption (NRC) 0.65
- Sound Attenuation (CAC) 35
- Light Reflectance 0.70
- Mold & Mildew Resistance No
-
Fire Resistance
- Fire Rating Class A
-
ASTM E1264
- astm-e1264-class III: Mineral base with painted finish, F: Heavily textured, Form 4: Cast or molded
-
ASTM E84
- Flame Spread 25
- Smoke Developed 50
- Fire Rating Class A
Sustainability
- GREENGUARD Certification Yes
- Recycled Content 69.8%
Physical Data
- Thickness (in.) 3/4
- Color Parchment 103
- Edge Shadowline
- Panel Size 2 ft. x 2 ft.
- Material Mineral Fiber
Warranty
-
Warranty
USG Ceiling Solutions Warranty for Retail Applications (English) - WL1536PDF 339 KB
Documents & Files
Data Sheets & Specifications
| Data/Submittal Sheet (English) | PDF 7.2 MB |
Catalogs & Brochures
| System Catalog (English) | PDF 12.7 MB |
Installation & Technical Manuals
| Technical Guide (English) |
| Installation Guide (English) |
SDS, Certifications & Reports
| SDS (English) | PDF 136.1 KB |
| SDS (Spanish) | PDF 137.0 KB |
Warranties
| Warranties (English) |
Ask a question
Our customer support team will get back to you as soon as possible.
Question Guidlines
- Questions should relate to this product specifically.
- For help with pricing, availability, or delivery, please call 800.874.4968 (Monday–Friday, 7am–6pm Central)
- All questions and answers follow USG’s Terms & Conditions.
- Your question and USG’s answer may be posted to this page in the future, but none of your personal info will be included.
q & a
-
Why is LR important?
When the proper type of lighting fixture is used with a high LR ceiling, there can be savings in both initial construction costs as well as long-term energy costs. The concept is to use the ceiling to reflect light back into the occupied space.
-
What does LR stand for?
LR stands for light reflectance. It is a measure of the percentage of light which is reflected off of a given panel surface. Typically, the whiter and smoother the ceiling panel, the higher the LR value.
-
What is NRC?
NRC stands for Noise Reduction Coefficient. It is a measure of how much sound is absorbed by a given material. It is listed as a decimal and relates to percentage sound absorbed.
-
When referring to ceiling panels, what is the meaning of type, form and pattern?
These categories refer to ASTM Test E 1264.
Type refers to the base material of the panel.
Form refers to the manufacturing process of the panel.
Pattern refers to the type of texture or pattern in the panel. -
What is the difference between Class A and Firecode® branded materials?
Class A signifies that a panel attained a flame spread index of 25 or less (based on 100 for untreated red oak) when tested in accordance with the Standard ASTM E 84. The Firecode® brand signifies that the panel has been classified as a protective membrane in a floor-ceiling or roof-ceiling assembly in accordance with the Standard ASTM E 119. All Firecode® protective membranes offered by USG have attained a Class A rating.
-
How many acoustical panel types does USG offer?
USG offers four major types of acoustical panels as well as Gypsum based panels for special applications. They are: Wet-Felted, Cast, "X" Technology and Fiberglass.
-
How far in advance can I order ceiling panel before installation?
Storage time of materials at the job site should be as short as possible, and environmental conditions should be as near as possible to those specified for occupancy. Excess humidity during storage can cause expansion of material and possible warp, sag, or poor fit after installation. Chemical changes in the mat and/or coatings can be aggravated by excess humidity and cause discoloration during storage, even in unopened cartons. Cartons should be removed from pallets and stringers to prevent distortion of material. Long-term (6-12 months) storage under uncontrolled environmental conditions should be avoided.
-
What is CAC?
CAC stands for Ceiling Attenuation Class. It is the measure of the blocking of sound through one ceiling plane, into the plenum above, and back through the other ceiling plane to an adjacent space.
-
Why would I use one ceiling panel type over another?
The different panel substrates provide panels with unique characteristics. The use of the different panels will vary based on specific needs and application.
-
