Item: 221726

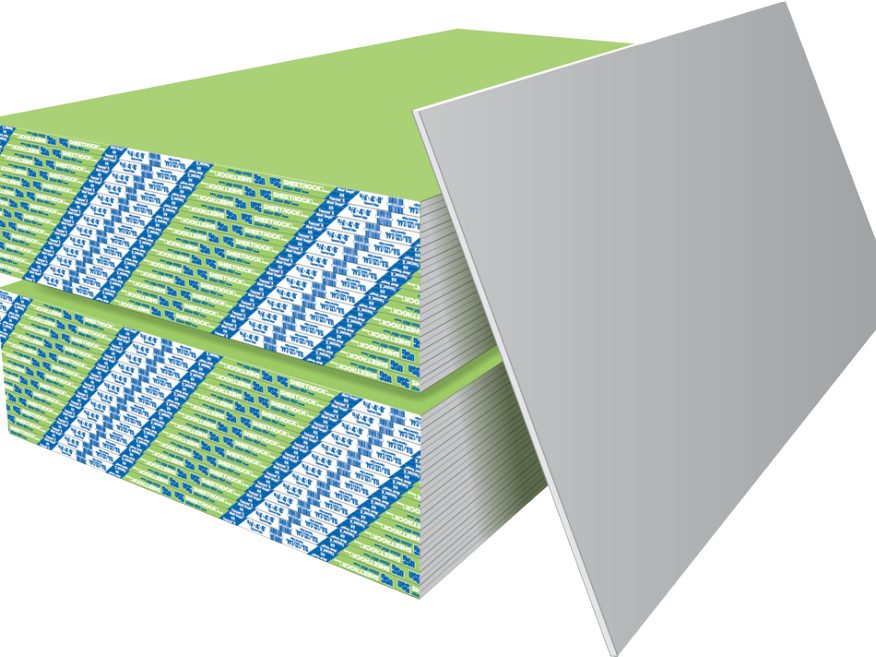

Sheetrock® Brand Glass-Mat Panels Mold Tough® VHI Firecode® X

5/8 in. (15.9 mm) glass-mat Type X panels with very high-impact (VHI), moisture and mold resistance

Available Product Options

Thickness: 5/8 in.

Width: 48 in.

Order a Sample

Overview

Overview

Sheetrock® Brand Glass-Mat Panels Mold Tough® VHI Firecode® X (UL Type AR) are 5/8 in. (15.9 mm) Type X panels designed and tested to offer greater resistance to surface abrasion, indentation and impact damage than 5/8 in. (15.9 mm) Sheetrock® Brand Glass-Mat Panels Mold Tough® Firecode® X. These abuse-resistant panels feature a noncombustible, moisture-resistant gypsum core that is encased in a green colored fiberglass face and back that shed water. When tested in accordance with ASTM D3273, Standard Test Method for Resistance to Growth of Mold on the Surface of Interior Coatings in an Environmental Chamber, the panels score a "10" (highest). The fiberglass face is folded around the long edges to reinforce and protect the core, and the ends are cut square and even. The long edges of the panels are tapered, allowing joints to be reinforced and concealed with Sheetrock® Brand joint treatment systems. The panels are UL Classified for fire resistance and can be used in any UL Design in which Type AR panels are listed.

Main Features

  • 5/8 in. (15.9 mm) glass-mat Type X panels with abuse, moisture and mold resistance
  • Feature a noncombustible, moisture-resistant gypsum core encased in a fiberglass face and back that shed water
  • Designed and tested to offer greater resistance to surface abrasion, indentation and impact damage than 5/8 in. (15.9 mm) Sheetrock® Brand Glass-Mat Panels Mold Tough® Firecode® X
  • Suitable for use in pre dry-in (fast track or pre-rock) and similar applications of panels before the building envelope is fully enclosed
  • Quick score-and-snap, no sawing or special tools required
  • Comply with ASTM C1658, Standard Specification for Glass Mat Gypsum Panels, for 5/8 in. (15.9 mm), Type X and glass mat water-resistant gypsum panel
  • Tested to ASTM C1629, Standard Classification for Abuse-Resistant Nondecorated Interior Gypsum Panel Products and Fiber-Reinforced Cement Panels, for surface abrasion and indentation resistance, and soft- and hard-body impact
  • Score a "10" when tested in accordance with ASTM D3273, Standard Test Method for Resistance to Growth of Mold on the Surface of Interior Coatings in an Environmental Chamber
  • Can be exposed to weather for up to 12 months and are guaranteed three years against manufacturing defects
  • Underwriters Laboratories Inc. (UL) Classification as to fire resistance, surface burning characteristics and noncombustibility
  • Achieved GREENGUARD Gold Certification and qualifies as a low VOC emitting material (meets CA 01350)

Specifications

Submittal Sheet PDF 355.1 KB

Performance

  • Mold & Mildew Resistance Yes
  • ASTM E84
    • Flame Spread 0
    • Smoke Developed 0
  • ASTM Type ASTM C1629; ASTM C1658; ASTM C473; ASTM D3273; ASTM E136; ASTM E84
    • Flame Spread 0
    • Smoke Developed 0
  • UL Type Designations AR

Sustainability

  • GREENGUARD Certification Yes

Physical Data

  • Thickness (in.) 5/8
  • Edge Tapered Edge
  • Panel Size 48 in. x 8-12 ft.
  • Nominal Weight 2.8 lb./sq. ft.

Documents & Files

Data Sheets & Specifications

Data/Submittal Sheet (English) PDF 355.1 KB
Architecturall Specification (English) DOCX 131.1 KB

White Papers

White Paper (English) PDF 100.3 KB
Sell Sheet (English) PDF 2.5 MB

Catalogs & Brochures

System Catalog (English) PDF 14.2 MB

Installation & Technical Manuals

Installation Guide (English) PDF 478.7 KB

SDS, Certifications & Reports

SDS (English) PDF 149.7 KB

Warranties

Warranties (English) PDF 139.4 KB
