Item: 221720

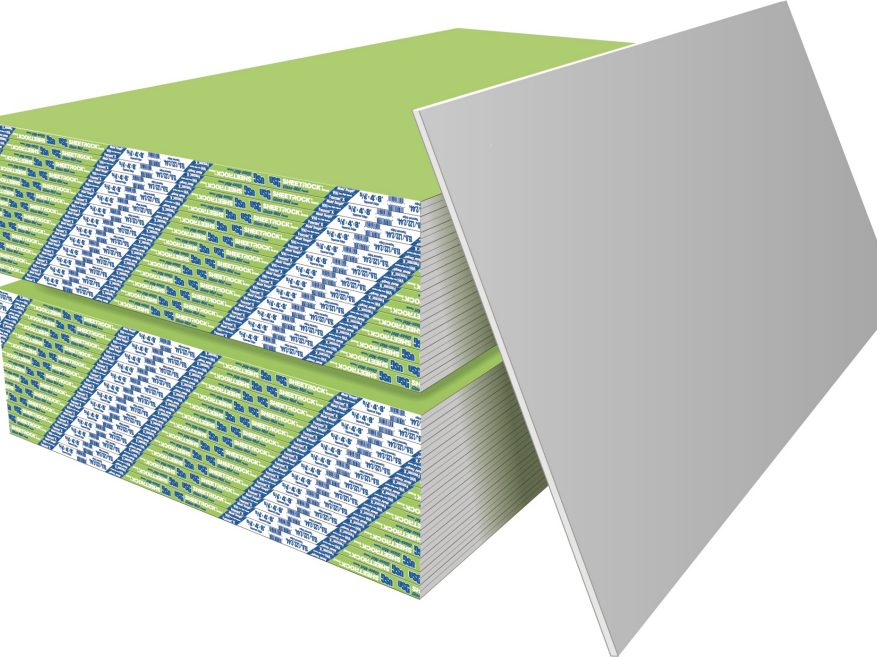

Sheetrock® Brand Glass-Mat Panels Mold Tough®

1/2 in. (12.7 mm) Regular glass-mat panels with moisture and mold resistance

Available Product Options

Thickness: 1/2 in.

Width: 48 in.

Build a Submittal

Order a Sample

Overview

Sheetrock® Brand Glass-Mat Panels Tough® are 1/2 in. (12.7 mm) Regular gypsum panels that feature a noncombustible, moisture-resistant gypsum core that is encased in a green colored fiberglass face and back that shed water. When tested in accordance with ASTM D3273, Standard Test Method for Resistance to Growth of Mold on the Surface of Interior Coatings in an Environmental Chamber, the panels score a "10" (highest). The fiberglass face is folded around the long edges to reinforce and protect the core, and the ends are cut square and even. The long edges of the panels are tapered, allowing joints to be reinforced and concealed with Sheetrock® Brand joint treatment systems.

Main Features

  • 1/2 in. (12.7 mm) Regular glass-mat panels with moisture and mold resistance
  • Feature a noncombustible, moisture-resistant gypsum core encased in a fiberglass face and back that shed water
    Suitable for use in pre dry-in (fast track or pre-rock) and similar applications of panels before the building envelope is fully enclosed
  • Quick score-and-snap, no sawing or special tools required
  • Comply with ASTM C1658, Standard Specification for Glass Mat Gypsum Panels, for 1/2 in. (12.7 mm) Regular and glass mat water-resistant gypsum panel
  • Score a "10" when tested in accordance with ASTM D3273, Standard Test Method for Resistance to Growth of Mold on the Surface of Interior Coatings in an Environmental Chamber
  • Can be exposed to weather for up to 12 months and are guaranteed three years against manufacturing defects
  • Underwriters Laboratories Inc. (UL) Classification as to surface-burning characteristics and noncombustibility
  • Achieved GREENGUARD Gold Certification and qualifies as a low VOC emitting material (meets CA 01350)

Specifications

Submittal Sheet PDF 364.0 KB

Performance

  • Mold & Mildew Resistance Yes
  • Fire Resistance
    • Fire Rating Regular
  • ASTM E84
    • Flame Spread 0
    • Smoke Developed 0
    • Fire Rating Regular
  • ASTM Type ASTM C1658; ASTM C473; ASTM D3273; ASTM E136; ASTM E84
    • Flame Spread 0
    • Smoke Developed 0
    • Fire Rating Regular

Sustainability

  • GREENGUARD Certification Yes

Physical Data

  • Thickness (in.) 1/2
  • Edge Tapered Edge
  • Panel Size 48 in. x 8-12 ft.
  • Nominal Weight 1.8 lb./sq. ft.

Documents & Files

Data/Submittal Sheets & Specifications

Data/Submittal Sheet (English) PDF 364.0 KB
Architectural Specification (English) DOCX 130.9 KB

White Papers

White Paper (English) PDF 100.3 KB
Sell Sheet (English) PDF 432.7 KB

Catalogs & Brochures

Brochure (English) PDF 3.9 MB

Installation & Technical Manuals

Technical Guide (English) PDF 115.3 KB
Installation Guide (English) PDF 478.7 KB

SDS, Certifications & Reports

SDS (English) PDF 180.9 KB
SDS (Spanish) PDF 170.8 KB

Sustainability

EPD (English) PDF 682.4 KB
