Donn® Brand Centricitee™ DXT™/DXLT™ 9/16" Acoustical Suspension System

This ceiling suspension system has an innovative, proprietary self-centering device built into each runner, preventing panel lip-out.

Overview

Overview

Donn® Brand Centricitee™ DXT™/DXLT™ 9/16" Acoustical Suspension System has a narrow 9/16" face, offering an alternative to 15/16" systems. Equipped with offset ends that rest on tees, which eliminates sagging and twisting, they are also designed for quick installation and removal, reducing installation and renovation costs.

Main Features

The Donn® Brand Centricitee™ DXT™/DXLT™ 9/16" Acoustical Suspension System was specially designed to maintain the appearance and integrity of your ceilings paneling. It allows for the use of standard square-edge panels, and will hold their position without sagging or twisting.
  • 9/16" exposed grid offers clean aesthetic
  • Proprietary panel-centering device allows use of several standard square edge panels. Refer to specific ceiling panel for limitations with square edge panels
  • Compatible with CGC Logix™ Integrated Ceiling Systems
  • Cross-tees override-ends resist twisting and ensure a finished look
  • Meets or exceeds all national code requirements, including seismic and fire-rated assemblies up to 2 hours
  • Design flexibility helps meet life safety codes
  • Proprietary Quick-Release™ cross tees
  • Optional integrated air diffuser
  • Available with High Recycled Content (HRC)

Profile

Donn® Brand Centricitee™ DXT™/DXLT™

Donn® Brand Centricitee™ DXT™/DXLT™

Edge Compatibility

Fineline

Fineline

Fineline Bevel

Fineline Bevel

Square Edge

Square Edge

colors & finishes: Atmosphere 3681

Atmosphere 3681
Azure 2660
Beige 142
Blue Grey 564
Breeze 2659
Charcoal 534
Dawn 3679
Deep Berry 3693
Deep Blue 3692
Deep Cranberry 3687
Deep Violet 3686
Flat Black 205
Flat White 050
Grass 3688
Halo 206
Laguna 3685
Light Brown 3690
Manila 246
Mist 053
Nectar 546
Nut Brown 3680
Ocean Ridge 3684
Old Stone 3691
Parchment 103
Peat 3682
Quartz 082
Redwood 566
Reserve White 4250
Safari 2662
Sandstone 090
Shale 3683
Sienna 565
Silver Satin 002
Silvertone 052
Slate 568
Sorbet 2658
Spruce 567
Squash 2661
Straw 143
Tangy Taleia 3689
Taupe 107
Tuscany 2663

Tees & Molding

Tees & Molding

What do I need to build this Suspension System?

Tees & Molding
  • KEY:

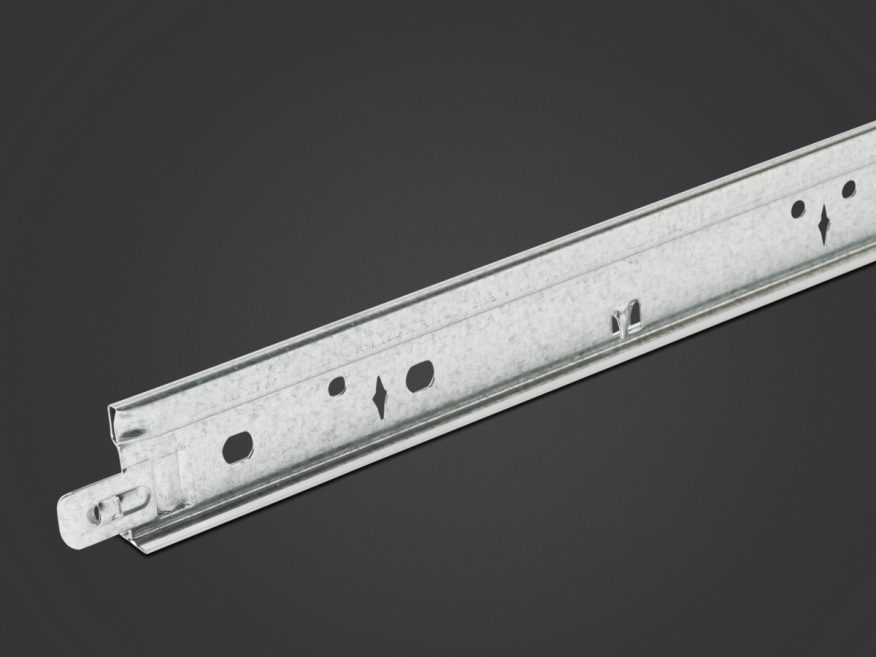

  • 1) Main Tee

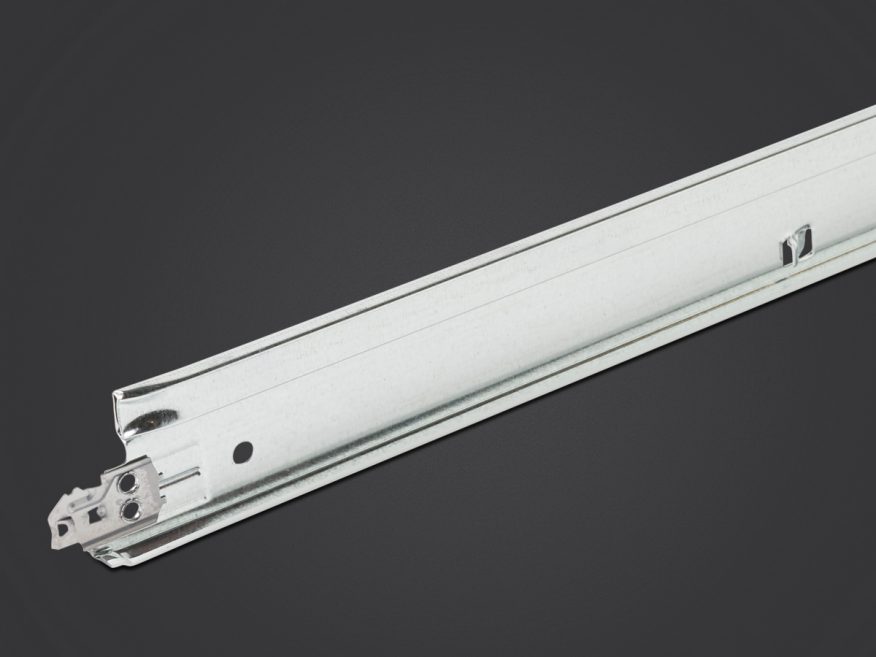

  • 2) Cross Tee
  • 3) Wall Molding

Estimate Your Ceiling Materials

Quickly and easily calculate how many ceiling panels, molding and tees you'll need for your project!

Get Started Now

Main Tees

  • Firecode®
Item Number ASTM Class Length Height Fire Class Seismic IBC Rated Load
4' Hanger Spacing 5' Hanger Spacing
DXT26HRC Heavy Duty 12.00 foot 1.64 inch Class A A-F 16 lb./LF 8.1 lb./LF
DXT26 Heavy Duty 12.00 foot 1.64 inch Class A A-F 16 lb./LF 8.1 lb./LF
DXT24HRC Intermediate Duty 12.00 foot 1.50 inch Class A A-C 12 lb./LF 6.3 lb./LF
DXT24-10 Intermediate Duty 10.00 foot 1.50 inch Class A A-C 12 lb./LF 6.3 lb./LF
DXLT24 Intermediate Duty 12.00 foot 1.50 inch Firecode® A-C 12 lb./LF 6.3 lb./LF
DXT24 Intermediate Duty 12.00 foot 1.50 inch Class A A-C 12 lb./LF 6.3 lb./LF

Cross Tees

  • Firecode®
Item Number Length Height Fire Class
DXT824 8.00 foot 1.50 inch Class A
DXT624 6.00 foot 1.50 inch Class A
DXT3022 30.00 inch 1.50 inch Class A
DXT222HRC 2.00 foot 1.50 inch Class A
DXLT222 2.00 foot 1.50 inch Firecode®
DXT424HRC 4.00 foot 1.50 inch Class A
DXT524 5.00 foot 1.50 inch Class A
DXT424 4.00 foot 1.50 inch Class A
DXT222 2.00 foot 1.50 inch Class A
DXT422 4.00 foot 1.50 inch Class A
DXT122 1.00 foot 1.50 inch Class A
DXLT424 4.00 foot 1.50 inch Firecode®
DXT426 4.00 foot 1.50 inch Class A
