1-800-387-2690Tell us the suspension shape and dimensions. We'll calculate material and construction specifications, including material and labor items.
Please correct the errors below before continuing
This estimate is based on the manufacturer's recommended installation practices. Other methods of installation may use more or less material. Please refer to the Installation Instructions for more details.
Job Number:
Date: Dec 10 2024 1:41 CST
Installation
Width (ft.)
ft.
Length (ft.)
ft.
Height (in.)
in.
Finish
Waste (%)
%
Finished Surface Area
sq. ft.
Combined Finished Surface Area of Both Dome Ends
sq. ft.
12 Guage Hanger Wire Drops
Barrel Vault Finish Material
Dome Finish Material
Curved Tee Product Specification
pcs or ft.
Curved Main Tees to Order
Cross Tee Product Specification
ctn or ft.
Cartons of Cross Tees to Order
Actual Number Cross Tees Used
USG Main Tee Splice Plates (DGSP-180) to Order
USG Dome Hubs (DGHUB) Required
Dome-End Hanger Wire Lengths & Locations
Field-Cut Spoke Lengths
Barrel-Vault Hanger Wire Lengths & Locations
Length of Each Main Tee Rib in the Vault Section (D)
ft. in. ( ft.)
Ribs Needed
spaced at inches on center plus one at each end ( total).
Cross tees are required every
inches along each Main Tee rib. (see step 4 of the Barrel Vault Installation Instructions ).

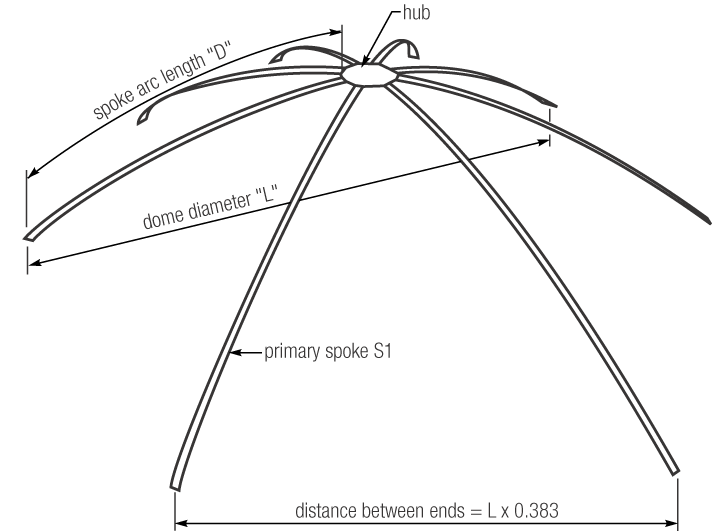

Arc length of perimeter cross tee on Dome Ends is
ft. in. ( in.)
Additional cross tees are required every
inches along the spokes of the Dome Ends (see step 8 of the Barrel Vault Installation Instructions)
