Overview
Overview

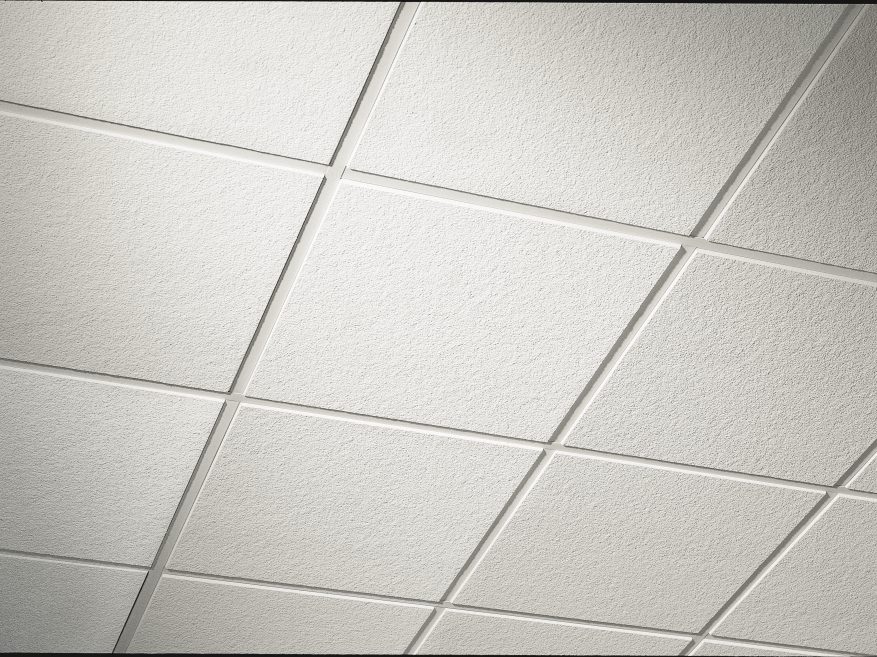

Donn® Brand DXLA™/DXACE™ Acoustical Suspension System is a versatile system that provides superior corrosion resistance and integrity in fire-rated applications. Add gasket with DXACE™ for controlled environment and healthcare applications.
Main Features
Versatility, beauty, and strength are the trademarks of the Donn® Brand DXLA™/DXACE™ Acoustical Suspension System, a fire-rated, steel-grid system offering functional beauty that maintains its integrity under fire exposure. Its G-30 hot-dipped, galvanized steel body and aluminum cap provides the strength of steel with the superior corrosion resistance of aluminum.- 15/16" exposed, fire-rated, system with aluminum cap
- No crevices between suspension system and tile
- Maximum economy and design simplicity with UL designs
- Showed superior performance when tested for severe environmental conditions in accordance with ASTM C635
- Suitable for use in food processing areas and meets USDA/FSIS requirements
- Cross-tee override-ends resist twisting and give a professionally finished look
- Proprietary Quick-Release™ cross tees
- Capable of withstanding cleaning and/or disinfecting chemicals as tested in accordance with ASTM D5402
- ICC-ES evaluated approach to seismic design installations (ICC-ESR-1222)
- White gasket blends with grid and tile
- Available with High Recycled Content (HRC)
- Custom color available
Profile
Edge Compatibility
colors & finishes: Flat White 050
Tees & Molding
Tees & Molding
What do I need to build this Suspension System?
- KEY:
- 1) Main Tee
- 2) Cross Tee
- 3) Wall Molding
Estimate Your Ceiling Materials
Quickly and easily calculate how many ceiling panels, molding and tees you'll need for your project!
Main Tees
- Firecode®
| Item Number | ASTM Class | Length | Height | Fire Class | Seismic IBC | Rated Load | |||
|---|---|---|---|---|---|---|---|---|---|
| 4' Hanger Spacing | 5' Hanger Spacing | ||||||||
| DXACE26 | Heavy Duty | 12.00 foot | 1.50 inch | Class A | A-F | 16 lb./LF | 7.3 lb./LF | ||
| DXLA26 | Heavy Duty | 12.00 foot | 1.64 inch | Firecode® | A-F | 16 lb./LF | 7.3 lb./LF | ||
| DXLA24 | Intermediate Duty | 12.00 foot | 1.64 inch | Firecode® | A-C | 12 lb./LF | 6.1 lb./LF | ||
Cross Tees
- Firecode®
| Item Number | Length | Height | Fire Class |
|---|---|---|---|
| DXACE424 | 4.00 foot | 1.50 inch | Class A |
| DXACE224 | 2.00 foot | 1.50 inch | Class A |
| DXLA424 | 4.00 foot | 1.50 inch | Firecode® |
| DXLA216 | 2.00 foot | 1.00 inch | Firecode® |
Documents & Files
Data Sheets & Specifications
| Data/Submittal Sheet (English) | PDF 1.2 MB |
| Architectural Specification (English) | DOCX 106.0 KB |
Catalogs & Brochures
| System Catalog (English) | PDF 47.2 MB |
| Brochure (English) |
Design Files
| CAD and Revit Files (English) |
Installation & Technical Manuals
| Technical Guide (English) | PDF 282.0 KB |
| Installation Guide (English) |
SDS, Certifications & Reports
| VOC Emissions Certificate (English) | |
| SDS (English) | PDF 185.0 KB |
| SDS (French) | PDF 38.5 KB |
| Evaluation Reports (English) | PDF 1.4 MB |
Warranties
| Warranties (English) | PDF 147.7 KB |
