Overview
Overview

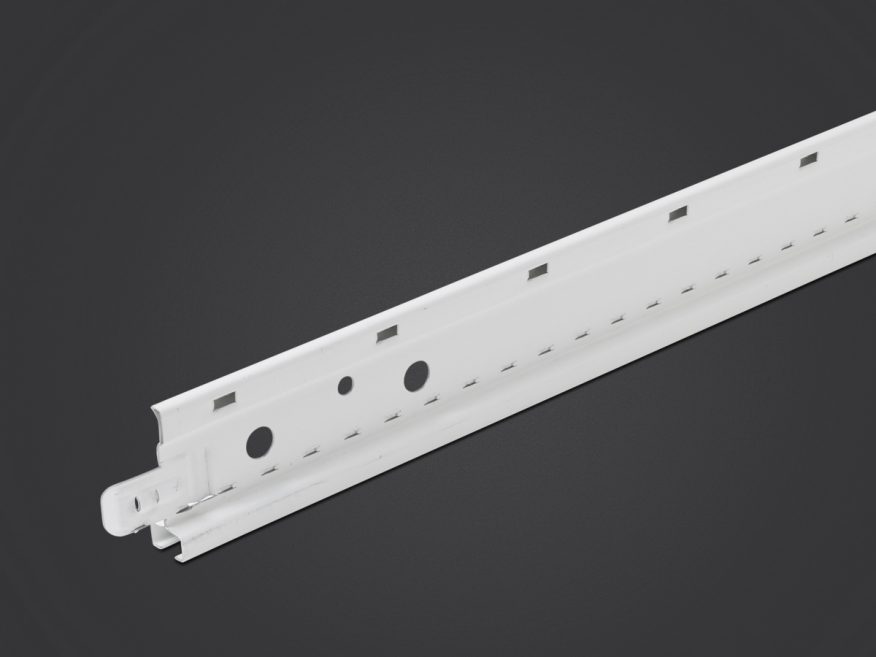

Donn® Brand Fineline® DXF™/DXLF™ 9/16" Acoustical Suspension System allows for easy ceiling access, while its narrow slotted profile, with a 9/16" wide face and a 1/4" reveal, hides the suspension system behind acoustical panels. Its 1/4" slot accommodates partition attachments and pendent mounted light fixtures.
Main Features
The Donn® Brand Fineline® DXF™/DXLF™ 9/16" Acoustical Suspension System has a 1/4" slot that allows it to accept Celebration™ Metal Ceiling Panels without requiring grid system changes. The optional Donn® Brand Air Diffuser provides a clean, uninterrupted ceiling plane, supplying conditioned air to the modern office environment, while complementing the Fineline system.- Narrow-profile, slotted grid system with 1/4" reveal provides streamlined appearance
- Compatible with CGC Logix™ Integrated Ceiling Systems
- Reveal accommodates partition attachments and pendant-mounted light fixtures

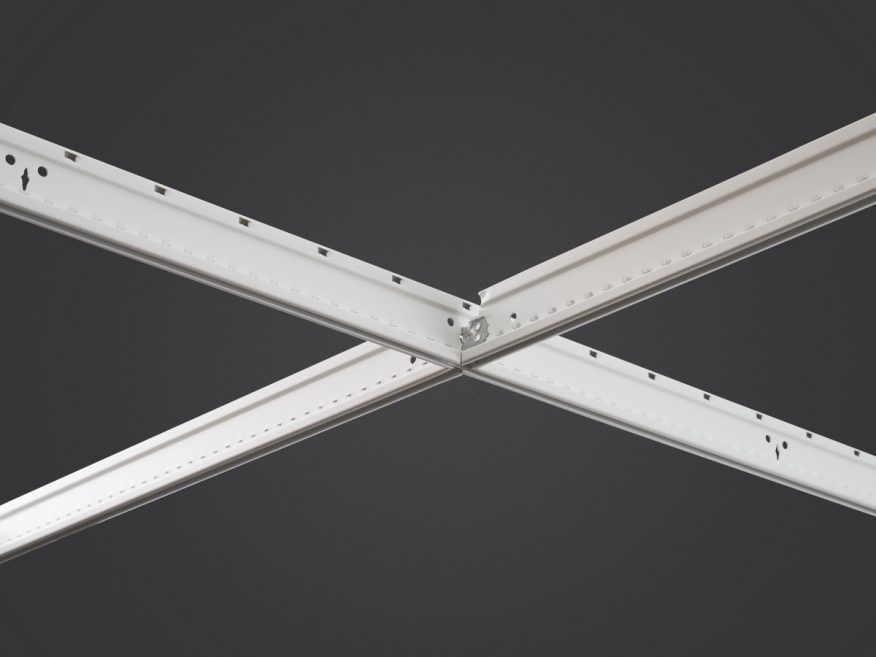

- Mitered intersections offer a clean, tailored appearance
- Meets or exceeds all national code requirements, including seismic and fire-rated assemblies up to 1 hour
- Extensive wind load tests for use in exterior environments that are not directly exposed to the weather such as under a soffit, parking garages, covered entrance or drive through
- Optional integrated air diffuser
- Accepts metal ceiling panels for ceiling-area accents without changing grid system
- Custom colors available
- Available with High Recycled Content (HRC)
Profile
Edge Compatibility
colors & finishes: Atmosphere 3681
Tees & Molding
Tees & Molding
What do I need to build this Suspension System?
- KEY:
- 1) Main Tee
- 2) Cross Tee
- 3) Wall Molding
Estimate Your Ceiling Materials
Quickly and easily calculate how many ceiling panels, molding and tees you'll need for your project!
Main Tees
- Firecode®
| Item Number | ASTM Class | Length | Height | Fire Class | Rated Load | |||
|---|---|---|---|---|---|---|---|---|
| 4' Hanger Spacing | 5' Hanger Spacing | 6' Hanger Spacing | ||||||
| DXFEVH2924 | Heavy Duty | 12.00 foot | 1.80 inch | Class A | 16 lb./LF | |||
| DXLF2924 | Intermediate Duty | 12.00 foot | 1.80 inch | Firecode® | 12 lb./LF | 6.2 lb./LF | 3.6 lb./LF | |
| DXF2948 | Intermediate Duty | 12.00 foot | 1.80 inch | Class A | 12 lb./LF | 6.2 lb./LF | 3.6 lb./LF | |
| DXF2930 | Intermediate Duty | 10.00 foot | 1.80 inch | Class A | 12 lb./LF | 6.2 lb./LF | 3.6 lb./LF | |
| DXF2924HRC | Heavy Duty | 12.00 foot | 1.80 inch | Class A | 12 lb./LF | 6.2 lb./LF | 3.6 lb./LF | |
| DXFH2924 | Heavy Duty | 12.00 foot | 1.80 inch | Class A | 16 lb./LF | 8 lb./LF | 4.6 lb./LF | |
| DXF2924-10 | Intermediate Duty | 10.00 foot | 1.80 inch | Class A | 12 lb./LF | 6.2 lb./LF | 3.6 lb./LF | |
| DXF2924 | Intermediate Duty | 12.00 foot | 1.80 inch | Class A | 12 lb./LF | 6.2 lb./LF | 3.6 lb./LF | |
| DXF2920 | Intermediate Duty | 10.00 foot | 1.80 inch | Class A | 12 lb./LF | 6.2 lb./LF | 3.6 lb./LF | |
Cross Tees
- Firecode®
| Item Number | Length | Height | Fire Class |
|---|---|---|---|
| DXLF429N | 4.00 foot | 1.80 inch | Firecode® |
| DXF829 | 8.00 foot | 1.80 inch | Class A |
| DXLF229 | 2.00 foot | 1.80 inch | Firecode® |
| DXF30 | 2.50 foot | 1.80 inch | Class A |
| DXF229HRC | 2.00 foot | 1.80 inch | Class A |
| DXF529N | 5.00 foot | 1.80 inch | Class A |
| DXF129 | 1.00 foot | 1.80 inch | Class A |
| DXF229 | 2.00 foot | 1.80 inch | Class A |
| DXF629 | 6.00 foot | 1.80 inch | Class A |
| DXF57 | 57.00 inch | 1.80 inch | Class A |
| DXF429S | 4.00 foot | 1.80 inch | Class A |
| DXF429NHRC | 4.00 foot | 1.80 inch | Class A |
| DXF429N | 4.00 foot | 1.80 inch | Class A |
| DXF429 | 4.00 foot | 1.80 inch | Class A |
Installation
Installation Guide PDF 822.1 KB
Documents & Files
Data Sheets & Specifications
| Data/Submittal Sheet (English) | |
| Architectural Specification (English) | DOCX 131.1 KB |
Catalogs & Brochures
| System Guide (English) | PDF 11.5 MB |
| System Catalog (English) | |
| Brochure (English) |
Design Files
| CAD and Revit Files (English) |
Installation & Technical Manuals
| Technical Guide (English) | PDF 282.0 KB |
| Installation Guide (English) | PDF 822.1 KB |
SDS, Certifications & Reports
| VOC Emissions Certificate (English) | |
| SDS (English) | PDF 205.4 KB |
| Evaluation Reports (English) | PDF 1.4 MB |
Warranties
| Warranties (English) | PDF 147.7 KB |
