Donn® Brand Fineline® 1/8 DXFF™ 9/16" Acoustical Suspension System

This unique, economical and simply installed system provides a monolithic ceiling look with every benefit of a standard exposed grid.

Overview

Overview

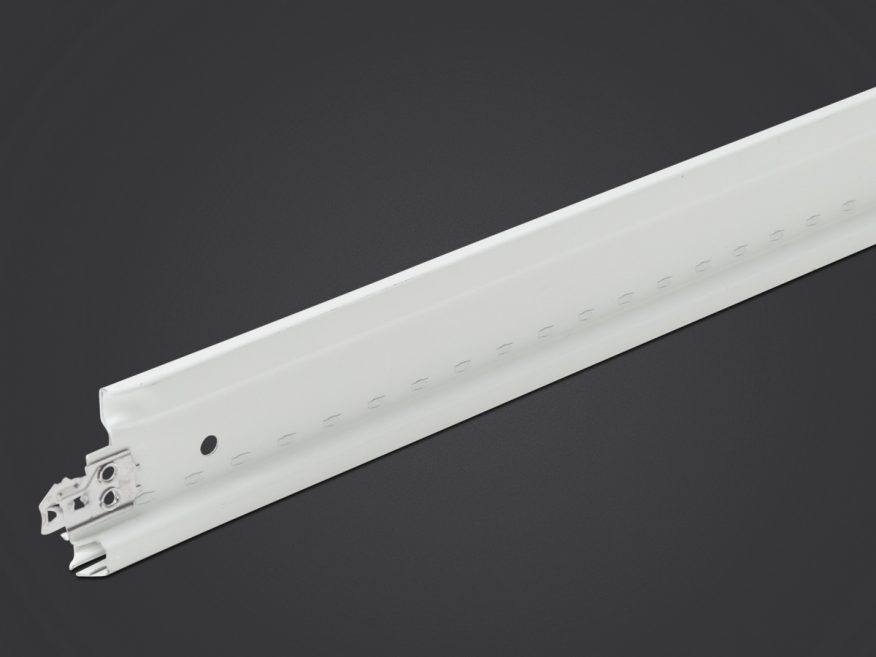

The Donn® Brand Fineline® 1/8 DXFF™ 9/16" Acoustical Suspension System allows for easy ceiling access, while its narrow slotted profile hides the suspension system behind acoustical panels, yielding a smooth, clean ceiling plane with minimal exposed metal.

Main Features

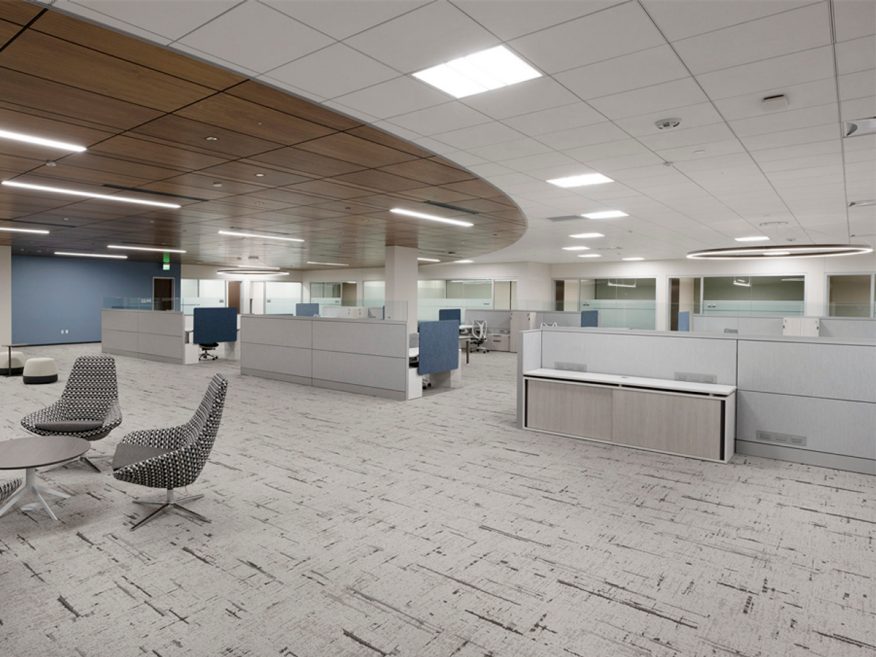

The Donn® Brand Fineline® 1/8 DXFF™ 9/16" Acoustical Suspension System, with a 9/16" wide face and a 1/8" reveal, has an all-steel construction which adds strength and dimensional stability at low cost. Its mitered intersections give Fineline 1/8 grid a clean architectural detail that creates a visually desirable modern office setting.
  • Narrow-profile, slotted grid system with 1/8" reveal provides streamlined appearance
  • Reveal accommodates partition attachments and pendant-mounted light fixtures
  • Mitered intersections offer a clean, tailored appearance
  • Meets or exceeds all national code requirements, including seismic
  • Optional integrated air diffuser
  • Accepts metal ceiling panels for ceiling-area accents without changing grid system
  • Custom color available
  • ICC-ES evaluated approach to seismic design installations (ICC-ESR-1222)
  • Standard components available in Imperial and Metric sizes
  • Available with High Recycled Content (HRC)

Edge Compatibility

Fineline

Fineline

Fineline Bevel

Fineline Bevel

colors & finishes: Atmosphere 3681

Atmosphere 3681
Azure 2660
Beige 142
Blue Grey 564
Breeze 2659
Charcoal 534
Dawn 3679
Deep Berry 3693
Deep Blue 3692
Deep Cranberry 3687
Deep Violet 3686
Flat Black 205
Flat White 050
Grass 3688
Halo 206
Laguna 3685
Light Brown 3690
Manila 246
Mist 053
Nectar 546
Nut Brown 3680
Ocean Ridge 3684
Old Stone 3691
Parchment 103
Peat 3682
Quartz 082
Redwood 566
Reserve White 4250
Safari 2662
Sandstone 090
Shale 3683
Sienna 565
Silver Satin 002
Silvertone 052
Slate 568
Sorbet 2658
Spruce 567
Squash 2661
Straw 143
Tangy Taleia 3689
Taupe 107
Tuscany 2663

Tees & Molding

Tees & Molding

What do I need to build this Suspension System?

Tees & Molding
  • KEY:
  • 1) Main Tee
  • 2) Cross Tee
  • 3) Wall Molding

Estimate Your Ceiling Materials

Quickly and easily calculate how many ceiling panels, molding and tees you'll need for your project!

Get Started Now

Main Tees

  • Firecode®
Item Number ASTM Class Length Height Fire Class Seismic IBC Rated Load
4' Hanger Spacing 5' Hanger Spacing 6' Hanger Spacing
DXFF2948 Intermediate Duty 12.00 foot 1.80 inch Class A A-C 12 lb./LF 6.2 lb./LF 3.6 lb./LF
DXFF2930 Intermediate Duty 10.00 foot 1.80 inch Class A A-C 12 lb./LF 6.2 lb./LF 3.6 lb./LF
DXFF2924 Intermediate Duty 12.00 foot 1.80 inch Class A A-C 12 lb./LF 6.2 lb./LF 3.6 lb./LF
DXFFH2924 Heavy Duty 12.00 foot 1.80 inch Class A A-F 16 lb./LF 8.2 lb./LF 4.7 lb./LF

Cross Tees

  • Firecode®
Item Number Length Height Fire Class
DXFF429S 4.00 foot 1.80 inch Class A
DXFF429N 4.00 foot 1.80 inch Class A
DXFF429 4.00 foot 1.80 inch Class A
DXFF30 2.50 foot 1.80 inch Class A
DXFF229 2.00 foot 1.80 inch Class A
DXFF129 1.00 foot 1.80 inch Class A
DXFF529N 5.00 foot 1.80 inch Class A
DXFF529 5.00 foot 1.80 inch Class A

Documents & Files

Data Sheets & Specifications

Data/Submittal Sheet (English) PDF 1.1 MB

Catalogs & Brochures

System Catalog (English) PDF 45.2 MB
Brochure (English)

Installation & Technical Manuals

Technical Guide (English) PDF 282.0 KB
Installation Guide (English) PDF 822.1 KB

SDS, Certifications & Reports

VOC Emissions Certificate (English) PDF 450.3 KB
SDS (English) PDF 205.4 KB
SDS (French) PDF 39.1 KB
Evaluation Reports (English) PDF 1.6 MB

Warranties

Warranties (English) PDF 146.0 KB
