Donn® Brand Identitee® DXI™ 9/16" Acoustical Suspension System

With a refined 9/16” dual reveal profile, this system is especially designed to accommodate modular flexibility and narrow lighting.

Overview

Overview

With the Donn® Brand Identitee® DXI™ 9/16" Acoustical Suspension System installing various sizes, patterns and linear channels can be done quickly and easily. It's refined 9/16" dual reveal profile eliminates concerns with notches and mitered intersections, creating perfect compatibility with Logix™ Integrated Ceilings systems.

Main Features

The Donn® Brand Identitee® DXI™ 9/16" Acoustical Suspension System is an innovative suspension system from USG, designed to accentuate design flexibility and product compatibility. A proprietary cap lance allows for extensive color and finish options delivering design freedom.
  • Narrow-profile grid system, with double 1/8" reveal
  • Seamless reveal at intersections
  • Meets or exceeds all national code requirements including seismic
  • Compatible with Logix™ Integrated Ceiling Systems
  • Custom colors available
  • ICC-ES evaluated approach to seismic installation (ICC-ESR-1222)
  • G30 hot-dipped galvanized steel body and cap inhibits red rust
  • All DXI™ items have High Recycled Content (HRC)
  • Metric sizes available
  • Proprietary cap lance allows a variety of color and coating options to meet unique project requirements
  • Available with High Recycled Content (HRC)

Profile

Donn® Brand Identitee® DXI™

Donn® Brand Identitee® DXI™

Edge Compatibility

Fineline

Fineline

Fineline Bevel

Fineline Bevel

colors & finishes: Atmosphere 3681

Atmosphere 3681
Azure 2660
Beige 142
Blue Grey 564
Breeze 2659
Charcoal 534
Dawn 3679
Deep Berry 3693
Deep Blue 3692
Deep Cranberry 3687
Deep Violet 3686
Flat Black 205
Flat White 050
Grass 3688
Halo 206
Laguna 3685
Light Brown 3690
Manila 246
Mist 053
Nectar 546
Nut Brown 3680
Ocean Ridge 3684
Old Stone 3691
Parchment 103
Peat 3682
Quartz 082
Redwood 566
Reserve White 4250
Safari 2662
Sandstone 090
Shale 3683
Sienna 565
Silver Satin 002
Silvertone 052
Slate 568
Sorbet 2658
Spruce 567
Squash 2661
Straw 143
Tangy Taleia 3689
Taupe 107
Tuscany 2663

Tees & Molding

Tees & Molding

What do I need to build this Suspension System?

Tees & Molding
  • KEY:
  • 1) Main Tee
  • 2) Cross Tee
  • 3) Wall Molding

Estimate Your Ceiling Materials

Quickly and easily calculate how many ceiling panels, molding and tees you'll need for your project!

Get Started Now

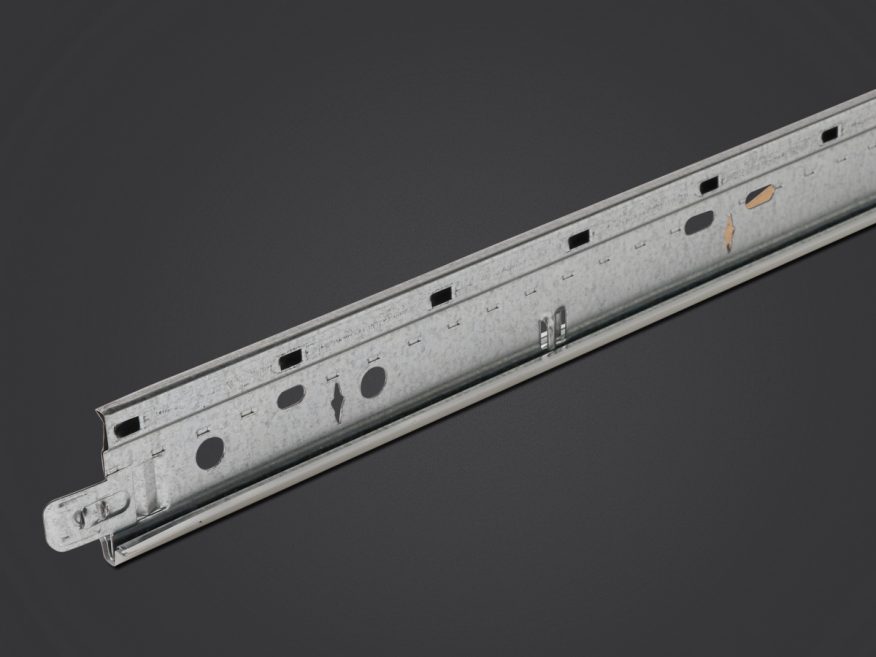

Main Tees

  • Firecode®
Item Number ASTM Class Length Height Fire Class Seismic IBC Rated Load
4' Hanger Spacing 5' Hanger Spacing 6' Hanger Spacing
DXI26HRC Heavy Duty 12.00 foot 1.81 inch Class A A-F 16 lb./LF 8.5 lb./LF 5.1 lb./LF
DXI24HRC Intermediate Duty 12.00 foot 1.81 inch Class A A-C 12 lb./LF 6.7 lb./LF 4.2 lb./LF

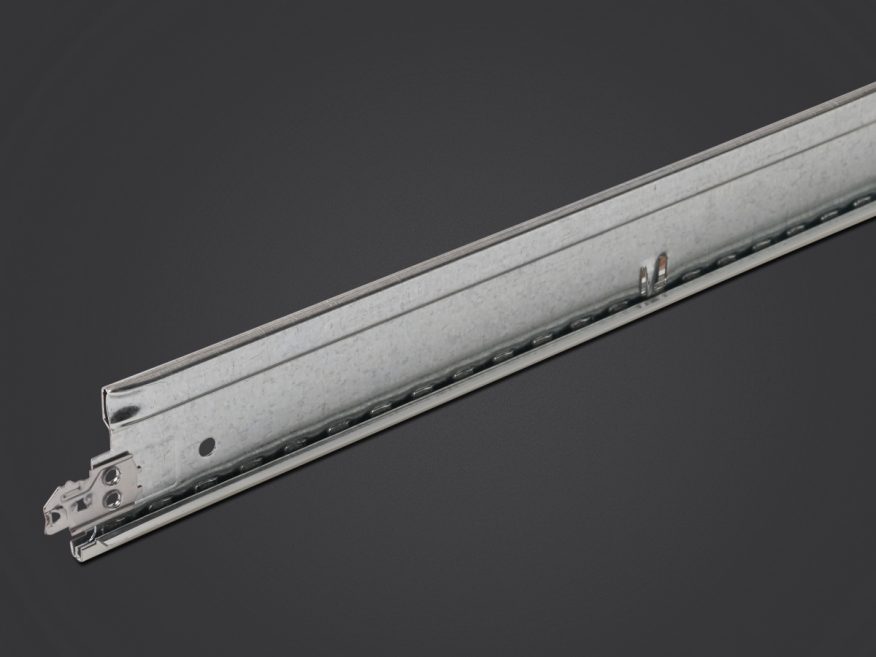

Cross Tees

  • Firecode®
Item Number Length Height Fire Class
DXI424HRC 4.00 foot 1.81 inch Class A
DXI224HRC 2.00 foot 1.81 inch Class A
DXI4224HRC 42.00 inch 1.81 inch Class A
DXI3024HRC 30.00 inch 1.81 inch Class A
DXI824HRC 8.00 foot 1.81 inch Class A
DXI2124HRC 21.00 inch 1.81 inch Class A
DXI624HRC 6.00 foot 1.81 inch Class A
DXI2724HRC 27.00 inch 1.81 inch Class A
DXI5724HRC 57.00 inch 1.81 inch Class A
DXI5424HRC 54.00 inch 1.81 inch Class A
DXI524HRC 5.00 foot 1.81 inch Class A

Documents & Files

Installation & Technical Manuals

Installation Guide (English) PDF 822.1 KB

SDS, Certifications & Reports

VOC Emissions Certificate (English) PDF 450.3 KB
SDS (English) PDF 205.4 KB

Warranties

Warranties (English) PDF 147.7 KB
