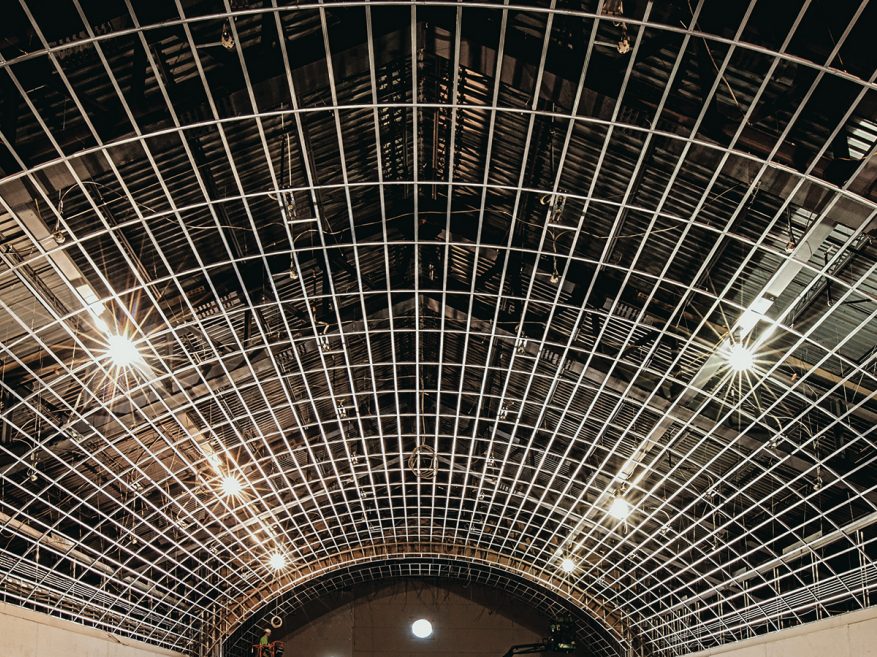

USG Drywall Suspension System - Curved Ceilings - Vault, The Current - River North in Denver, Colorado, Architect: Davis Partnership Architects, Photo: © USG Interiors, LLC
USG Drywall Suspension System - Curved Ceilings, Cincinnati Children's Hospital - College Hill in Cincinnati, Ohio, Architect: GBBN, Photo: © Ryan Kurtz Photography LLC
USG Drywall Suspension System - Curved Ceilings, Cincinnati Children's Hospital - College Hill in Cincinnati, Ohio, Architect: GBBN, Photo: © USG Interiors, LLC
USG Drywall Suspension System - Curved Ceilings, Silverado Ranch DMV in Nevada, Architect: TSK Architects, Photo: © Michael Tessler
Drywall Suspension System - Flat Ceilings - Main Tee
Item: DGW9626DM
Drywall Suspension System
Engineered system designed for wallboard ceilings that installs faster than traditional framing methods such as steel studs or cold-rolled channel and drywall furring channel.
Key Documents & Design Files
Overview
Overview
Available for flat or curved ceilings, arches and domes for maximum design flexibility. The Drywall Suspension System is an engineered framing system that installs faster than conventional framing methods. It is ideal for framing both interior and exterior flat ceilings and more complex shapes such as stepped soffits and coffers.
Main Features
The system is available in pre-engineered custom shapes for framing curved drywall ceilings such as vaults, valleys, domes and arches. It is also fully compatible with all Donn® Brand acoustical suspension systems for easy transition from wallboard ceilings to acoustical tile ceilings.- Meets or exceeds ASTM C635 and C645
- Listed in over 60 UL fire-rated designs
- For interior and exterior installations
- G40 hot dipped galvanized coating for most applications, G90 available for exteriors
- Building code compliant per ICC ESR-1222
- Available with high recycled content (HRC)
- 6’ cross T’s available for wider main T spacing, reduces materials and speeds installation
- Designed to easily frame type F an G light fixture openings
- STC and IIC sound tested assemblies available
- Rotary stitched double web for strength and rigidity
- Knurled face facilitates screw attachment
- Lifetime limited warranty when used with Sheetrock® brand gypsum panels
Applications
- Administrative Offices
- Corridors and Hallways
- Dormitories
- Guest Rooms and Suites
- Hospitality
- Multi-Family Residential and Condos
- Restrooms, Utility Rooms and Loading Docks
- Traditional Offices
Specifications
Data Sheet
Performance
- Mould & Mildew Resistance No
-
Fire Resistance
- Fire Rating Firecode®
- ASTM Type ASTM C635
Sustainability
- Recycled Content 45.3%
Physical Data
- Edge DGW - Drywall Suspension
- Panel Size 1.5 in. x 8 ft.
Warranty
-
Warranty
USG Ceilings Commercial Application Warranty (English) - SC2102PDF 148 KB
