Mars™ Healthcare High-CAC Acoustical Panels
Fine-textured panels. Balanced acoustics. High-NRC and High-CAC provide excellent sound control that assist in addressing HIPAA standards.
Explore Sizes & Options
Fineline Bevel
Shadowline Tapered
Square EdgeStandard Colors
Overview
Overview

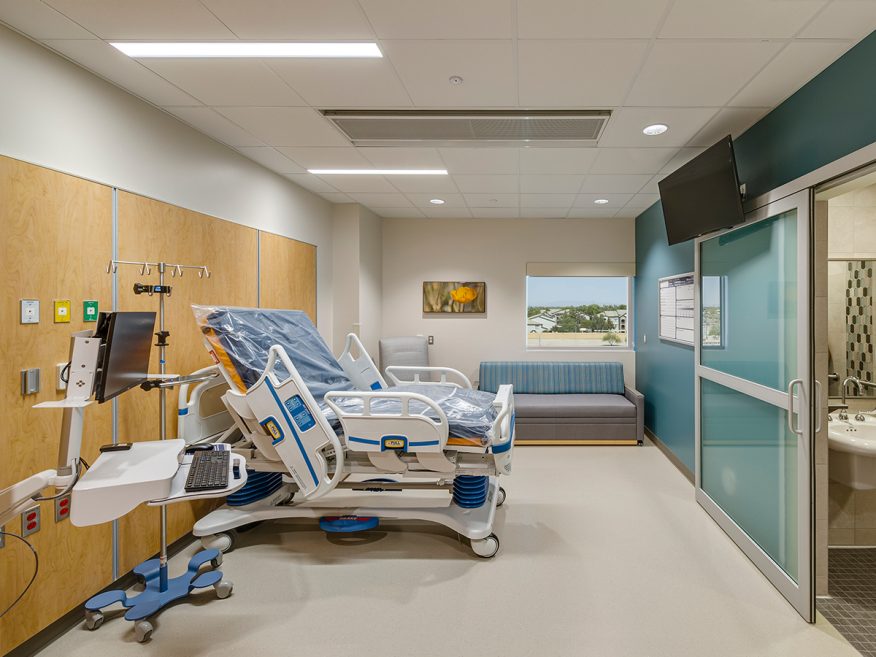

Environmentally friendly healthcare spaces that brighten even the shortest of hospital stay. Mars™ Healthcare High-CAC Acoustical Panels have a water-repellent membrane designed to be durable and deliver excellent noise reduction, sag resistance and high light reflectance.
Sound Absorption
0.60 NRC
Sound Attenuation
40 CAC
Light Reflectance
Up To 0.90
Recycled Content
71 %
Main Features
Mars™ Healthcare High-CAC Acoustical Panels deliver sound control that assist in meeting HIPPA standards and a water-repellent membrane designed to be safely cleaned with common disinfectants. These panels feature a high light-reflective finish to reduce light fixtures and are a low-VOC emitting panel solution.- High light reflective finish (LR .90) reducing light fixtures and energy use
- Washable, scrubbable and soil-resistant finish
- Impact and scratch resistant
- Achieves FDA standards for smoothness, durability and cleanability
- GREENGUARD Gold certified for low emitting performance
- ClimaPlus™ 30-year lifetime system warranty against visible sag, mold and mildew
Specifications
Performance
- Sound Absorption (NRC) 0.60
- Sound Attenuation (CAC) 40
- Light Reflectance 0.90
- Mold & Mildew Resistance Yes
-
Fire Resistance
- Fire Rating Class A
-
ASTM E1264
- astm-e1264-class IV: Mineral base with membrane-faced overlay, E: Lightly textured; G: Smooth, Form 1: Nodular; Form 2: Water-Felted
-
ASTM E84
- Flame Spread 25 or less
- Smoke Developed 50 or less
- Fire Rating Class A
Sustainability
- GREENGUARD Certification Yes
- Recycled Content 71%
- VOC Emissions Low-emitting
Physical Data
- Thickness (in.) 3/4
- Color White
- Edge Square Edge
- Panel Size 2 ft. x 4 ft.
- Material Mineral Fiber
Warranty
-
Warranty
USG Ceilings Commercial Application Warranty (English) - SC2102PDF 148 KB
Documents & Files
Data Sheets & Specifications
| Data/Submittal Sheet (English) | PDF 1.4 MB |
| Architecturall Specification (English) | DOCX 131.1 KB |
Catalogs & Brochures
| System Catalog (English) | PDF 45.2 MB |
Design Files
| CAD and Revit Files (English) |
Installation & Technical Manuals
| Technical Guide (English) |
| Installation Guide (English) |
SDS, Certifications & Reports
| SDS (English) | PDF 191.4 KB |
| SDS (Spanish) | PDF 193.8 KB |
Warranties
| Warranties (English) | PDF 147.7 KB |
Sustainability
| HPD (English) | |
| Greenguard Certificate (English) | |
| EPD (English) | |
| Declare Label (English) | PDF 157.7 KB |
