Item: 86115

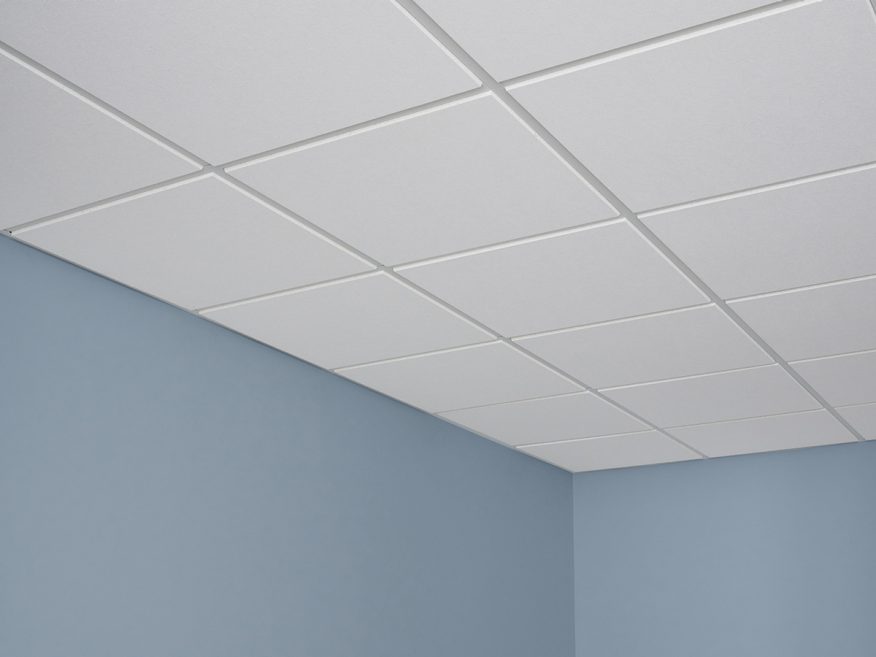

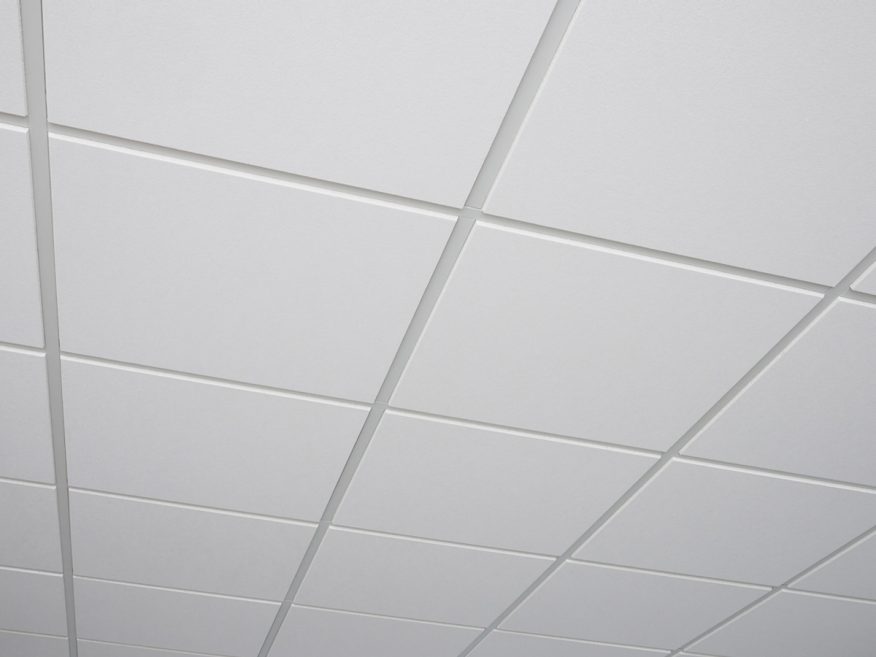

Mars™ Healthcare High-NRC/High-CAC (80/40) Acoustical Panels

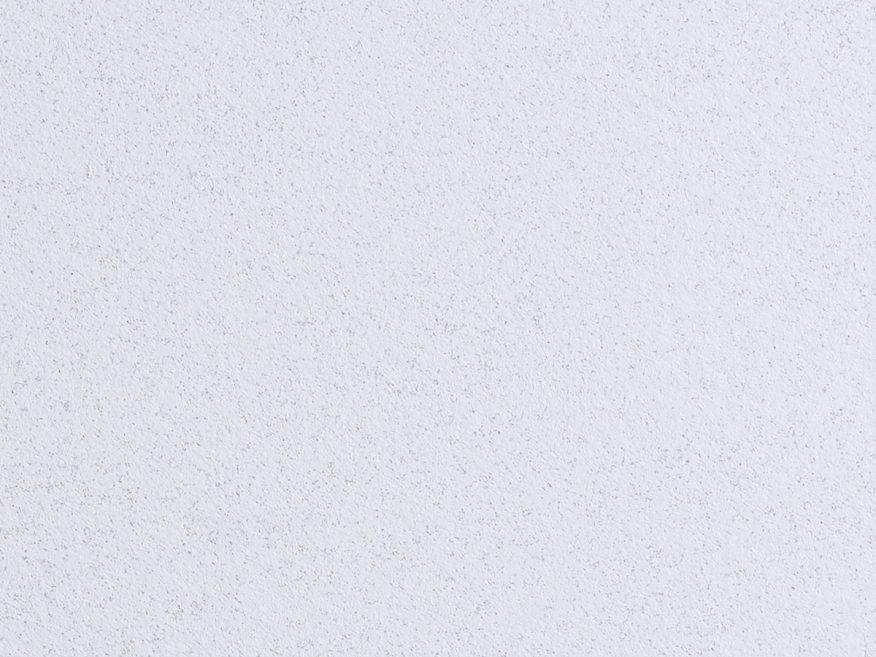

Fine-textured panels. Balanced acoustics. High-NRC and High-CAC provide excellent sound control that assist in addressing HIPAA standards.

Explore Sizes & Options

Item: 86115

Acoustics: 0.80 NRC / 40 CAC

Size: 2' x 2'

Color:

Build a Submittal

Order a sample

Overview

With ClimaPlus™ Performance

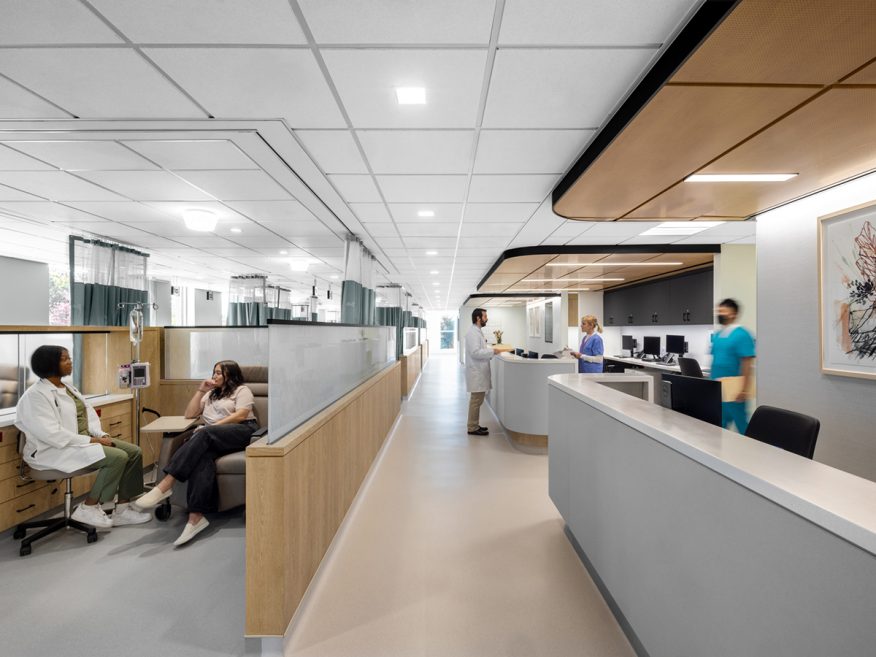

Environmentally friendly healthcare spaces that brighten even the shortest of hospital stay. Mars™ Healthcare High-NRC / High-CAC (80/40) Acoustical Panels have a water-repellent membrane designed to be durable and deliver excellent noise reduction, sag resistance and high light reflectance.

Sound Absorption

0.80 NRC

Sound Attenuation

40 CAC

Light Reflectance

Up To 0.90

Recycled Content

69 %

Main Features

Mars™ Healthcare High-NRC / High-CAC (80/40)Acoustical Panels deliver sound control that assist in meeting HIPPA standards and a water-repellent membrane designed to be safely cleaned with common disinfectants. These panels feature a high light-reflective finish to reduce light fixtures and are a low-VOC emitting panel solution.
  • High NRC (0.80) and High CAC (40) for excellent sound control and sound isolation
  • High light reflective finish (LR .90) reducing light fixtures and energy use
  • Washable, scrubbable and soil-resistant finish
  • Impact and scratch resistant
  • Achieves FDA standards for smoothness, durability and cleanability
  • GREENGUARD Gold certified for low emitting performance
  • ClimaPlus™ 30-year lifetime system warranty against visible sag, mold and mildew

Specifications

Data Sheet PDF 2.5 MB

Performance

  • Sound Absorption (NRC)
    NRC stands for Noise Reduction Coefficient. It is a measure of how much sound is absorbed by a given material. It is listed as a decimal and relates to percentage sound absorbed.
    0.80
  • Sound Attenuation (CAC) 40
  • Light Reflectance 0.90
  • Mold & Mildew Resistance
    Contains a broad-spectrum antimicrobial additive on the face and back of the panel that provides resistance against the growth of mold and mildew. Includes sag-resistance performance.
    Yes
  • Fire Resistance
    • Fire Rating Class A
  • ASTM E1264
    • astm-e1264-class IV: Mineral base with membrane-faced overlay, E: Lightly textured; G: Smooth, Form 1: Nodular; Form 2: Water-Felted
  • ASTM E84
    • Flame Spread 25 or less
    • Smoke Developed 50 or less
    • Fire Rating Class A

Sustainability

  • Recycled Content 69%
  • VOC Emissions Low-emitting

Physical Data

  • Thickness (in.) 1
  • Edge Square Edge
  • Panel Size 2' x 2'

Documents & Files

Data Sheets & Specifications

Data Sheet (English) PDF 2.5 MB
Architectural Specification (English) DOCX 82.2 KB

Catalogs & Brochures

System Catalog (English) PDF 29.3 MB

Installation & Technical Manuals

Technical Guide (English) PDF 807.8 KB

Warranty

Warranties (English) PDF 611.0 KB

Sustainability

HPD (English) PDF 108.3 KB
EPD (English) PDF 554.5 KB
