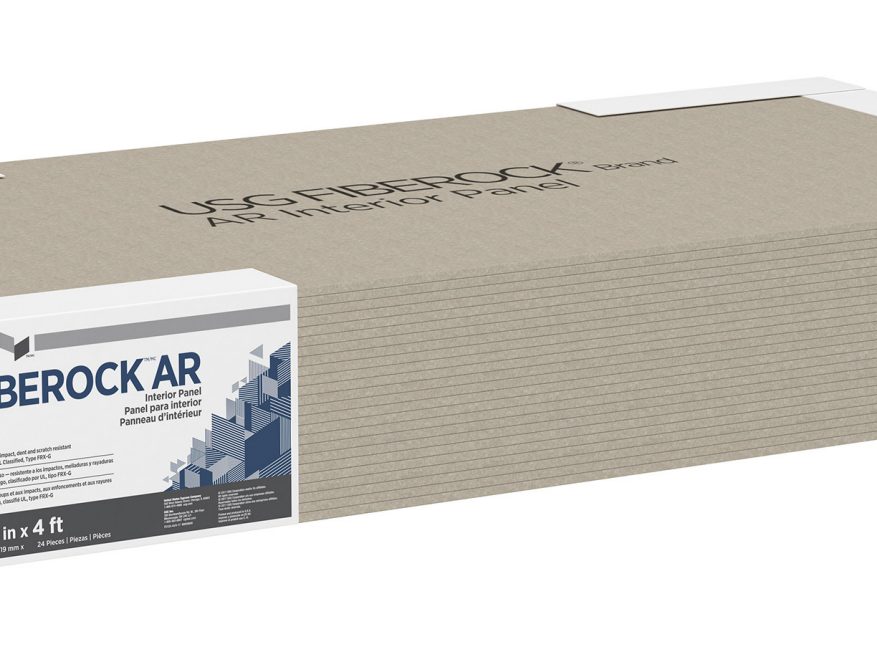

Fiberock® Brand AR Interior Panels (Regular and Type X)
Gypsum-fiber drywall panels designed to outperform paper-faced gypsum drywall board.
Overview
Overview
Fiberock® Brand AR Interior Panels are strong, durable panels made from 97 percent recycled materials and are an economical alternative to cement block and plaster. As they will resist denting, breaking and puncturing, these panels are great in high-traffic areas such as institutional, commercial, and residential interiors.
Main Features
Fiberock® Abuse-Resistant Interior Panels are designed to outperform paper-faced gypsumboard, even in abuse-prone areas.- No face paper to scratch or tear
- Resist denting, breaking and puncturing, even in high-traffic areas
- Provide excellent fire resistance
- Offer an economical alternative to concrete block and plaster construction
- Ideal for institutional, commercial and residential interiors
- Certified, recycled content of 97 percent
Applications
- Auditoriums and Gymnasiums
- Cafeterias
- Classrooms
- Convention and Meeting Rooms
- Corridors and Hallways
- Department Stores and Boutiques
- Dormitories
- Garages
- Grocery Stores
- Health and Fitness
- Laboratories, Operating Rooms and Imaging Rooms
- Mall Interior Spaces
- Mechanical Rooms
- Patient Rooms
- Stairways and Elevator Shafts
- Warehouses
Specifications
Performance
- Mold & Mildew Resistance Yes
-
Fire Resistance
- Fire Rating Type X
-
ASTM E84
- Flame Spread 5
- Smoke Developed 0
- Fire Rating Type X
-
ASTM Type
ASTM C1278; ASTM C36; ASTM E84
- Flame Spread 5
- Smoke Developed 0
- Fire Rating Type X
- UL Type Designations FRX-G (5/8 in. only)
Sustainability
- Recycled Content 99%
Physical Data
- Thickness (in.) 5/8
- Edge Square Edge; Tapered Edge
- Panel Size 48 in. x 4-12 ft.
- Nominal Weight 3.1 lb./sq. ft.
Warranty
Installation
Installation Guide PDF 77.6 KB
Documents & Files
Data Sheets & Specifications
| Data/Submittal Sheet (English) | PDF 210.9 KB |
| Architectural Specification (English) | DOCX 32.5 KB |
White Papers
| White Paper (English) | PDF 111.8 KB |
Catalogs & Brochures
| System Catalog (English) | PDF 14.2 MB |
Installation & Technical Manuals
| Technical Guide (English) | PDF 128.2 KB |
| Installation Guide (English) | PDF 77.6 KB |
SDS, Certifications & Reports
| SDS (English) | PDF 152.8 KB |
| SDS (Spanish) | PDF 100.9 KB |
Warranties
| Warranties (English) | PDF 484.1 KB |
Sustainability
| EPD (English) | PDF 1.3 MB |
Ask a question
Our customer support team will get back to you as soon as possible.
Question Guidlines
- Questions should relate to this product specifically.
- For help with pricing, availability, or delivery, please call 800.874.4968 (Monday–Friday, 7am–6pm Central)
- All questions and answers follow USG’s Terms & Conditions.
- Your question and USG’s answer may be posted to this page in the future, but none of your personal info will be included.
q & a
-
Can Veneer Plaster be applied to Fiberock® Brand Abuse-Resistant Interior Panels?
Yes. The joints must be taped with paper tape and setting type compounds. Apply a two coat veneer plaster.
-
Can Fiberock® Brand Abuse-Resistant Interior Panels be used on curved areas?
Yes. Fiberock® Brand Abuse-Resistant Interior Panels can be curved to radius of 30' for 1/2" thickness and 50' for 5/8" thickness.
-
Can Fiberock® Brand Abuse-Resistant Interior Panels be used on the exterior?
No, Fiberock® Brand Abuse-Resistant panels are not approved for exterior use.
-
What is the recommended fastener spacing for installing Fiberock® Brand Abuse-Resistant Interior Panels?
For ceiling with framing of 16 inches or closer, the spacing is 7 inches or closer for nails and 12 inches or closer for screws. Fastener spacing for walls are 12 inches or closer for framing of 24 inches and 16 inches or closer for framing of 16 inches or closer.
-
How are the joints treated when installing Fiberock® Brand Abuse-Resistant Interior Panels?
The joints should be embedded with setting type compound and paper tape.
-
Can Fiberock® Brand Abuse-Resistant Interior Panels (non-Aqua-Tough™) be used in wet areas?
No. The panel must be used in areas that are dry before, during, and after installation. For areas where mold, moisture and abuse resistance is needed use Fiberock® Brand Aqua-Tough™ Interior Panels.
-
How do I cut Fiberock® Brand Abuse-Resistant Interior Panels?
They can be cut with a utility knife, or a low RPM 3 1/2" carbide blade saw with a dust collection device.
-
What is the maximum temperature that Fiberock® Brand Abuse-Resistant Interior Panels can withstand?
Fiberock® Brand Abuse-Resistant Interior Panels can withstand temperatures of up to 125°F.
-
How can Fiberock® Brand Abuse-Resistant Interior Panels be decorated?
Fiberock® Brand Abuse-Resistant Interior Panels can be primed and painted the same as regular drywall. For more information, see USG literature piece J2045, Fiberock® Panels Finishing & Decorating White Paper.
-
How much do Fiberock® Brand Abuse-Resistant Interior Panels weigh?
Half-inch thick Fiberock® Brand Abuse-Resistant Interior Panels weigh 2.3 lbs per square foot and 5/8" thick panels weigh 2.9 lbs per square foot.
-
What type of fasteners should be used for installing Fiberock® Brand Abuse-Resistant Interior Panels?
Any corrosion resistance nail or screw of the type and length for the framing members used. Consult the project design professional for these requirements.
-
Why must 20-gauge framing be used to install Fiberock® Brand Abuse-Resistant Interior Panels?
There are two reasons to use 20-gauge framing for Fiberock® Brand Abuse-Resistant Interior Panel installation. The first is because Fiberock panels are used primarily in highly abused areas. If studs lighter than 20-gauge are used they will bow too much upon impact and cause joint cracking. Secondly, a great deal of force is required to penetrate the board.
-
Can Paper-Faced Metal Beads be used with Fiberock® Brand Abuse-Resisant Interior Panels?
Yes. These beads can be used but they must be embedded and finished with setting-type compounds.
-
How far apart should control joints be spaced for Fiberock® Brand Abuse-Resistant Interior Panels?
Locations and design of control joints should be specified by the design professional for the project.
-
Can Fiberock® Brand Abuse-Resistant Interior Panels be used in a fire-rated system?
Yes. 5/8" Fiberock Brand Abuse-Resistant Panels can be used in a UL-rated assembly that requires the use of Type X.
-
