Item: 141135

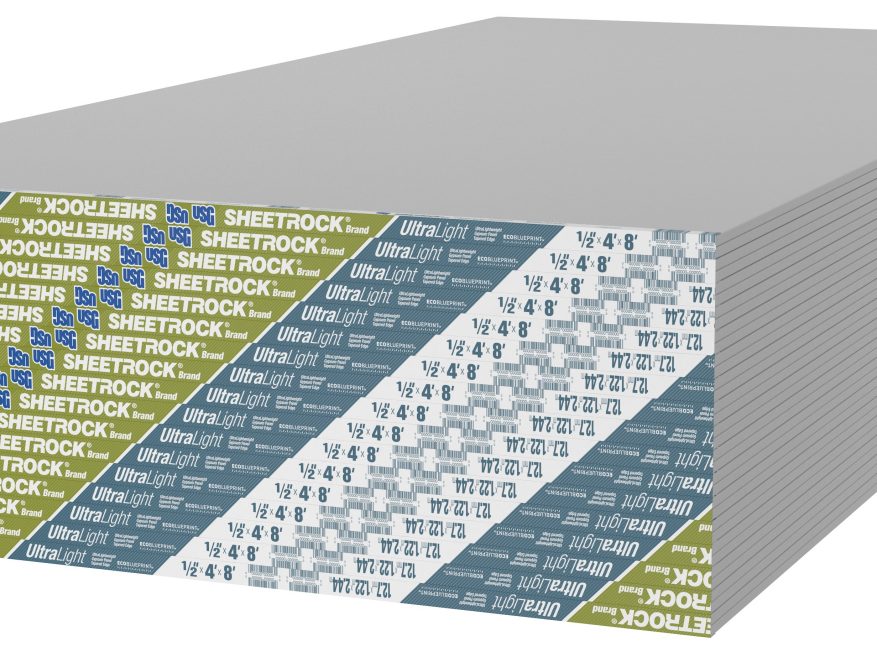

Sheetrock® Brand UltraLight Panels

Ultralightweight and sag-resistant 1/2 in. (12.7 mm) panels for interior wall and ceiling applications

Available Product Options

Thickness: 1/2 in.

Width: 54 in.

Build a Submittal

Order a Sample

Overview

Sheetrock® Brand UltraLight Panels are 1/2 in. (12.7 mm) gypsum panels that feature proprietary core and paper technologies, resulting in a high strength-to-weight ratio composite design. These lightweight panels are also engineered to have superior sag resistance, eliminating the need for traditional 1/2 in. (12.7 mm) sag-resistant ceiling panels. The noncombustible gypsum core is encased in 100% recycled face and back papers, and the face paper is folded around the long edges to reinforce and protect the core. The ends of the panels are cut square and even, while the the long edges are tapered, allowing joints to be reinforced and concealed with Sheetrock® Brand joint treatment systems.

Main Features

  • The industry’s first lightweight 1/2 in. (12.7 mm) gypsum panels
  • Superior score and snap for a cleaner edge and faster installation
  • International Code Council® (ICC®) Evaluation Service compliant for ceiling installations, ESR-3365
  • Comply with ASTM C1396, Standard Specification for Gypsum Board, for 1/2 in. (12.7 mm) gypsum wallboard and 1/2 in. (12.7 mm) gypsum ceiling board
  • Underwriters Laboratories Inc. (UL) Classification as to surface-burning characteristics and noncombustibility
  • Achieved GREENGUARD Gold Certification and qualifies as a low VOC emitting material (meets CA 01350)

Applications

  • Multi-Family Residential and Condos
  • Single-Family Residential

Specifications

Submittal Sheet PDF 317.1 KB

Performance

  • Mold & Mildew Resistance No
  • Fire Resistance
    • Fire Rating Regular
  • ASTM E84
    • Flame Spread 15
    • Smoke Developed 0
    • Fire Rating Regular
  • ASTM Type ASTM C1396; ASTM C473; ASTM E136; ASTM E84
    • Flame Spread 15
    • Smoke Developed 0
    • Fire Rating Regular

Sustainability

  • GREENGUARD Certification Yes

Physical Data

  • Thickness (in.) 1/2
  • Edge Tapered Edge
  • Panel Size 54 in. x 8-16 ft.
  • Nominal Weight 1.25 lb./sq. ft.

Documents & Files

Data/Submittal Sheets & Specifications

Data/Submittal Sheet (English) PDF 317.1 KB
Architectural Specification (English) DOCX 125.7 KB

Catalogs & Brochures

System Catalog (English) PDF 20.5 MB
Brochure (English) PDF 3.9 MB

Installation & Technical Manuals

Technical Guide (English) PDF 115.3 KB
Installation Guide (English) PDF 7.4 MB

SDS, Certifications & Reports

SDS (English) PDF 165.7 KB
SDS (Spanish) PDF 143.3 KB
evaluation-reports (English) PDF 279.1 KB

Sustainability

Product Attribute Report (English) PDF 798.9 KB

Ask a question

Our customer support team will get back to you within 48 hours

Question Guidlines

  • Questions should relate to this product specifically.
  • For help with pricing, availability, or delivery, please call 800.874.4968 (Monday–Friday, 7am–6pm Central)
  • All questions and answers follow USG’s Terms & Conditions.
  • Your question and USG’s answer may be posted to this page in the future, but none of your personal info will be included.

q & a

  • Can 1/2" Sheetrock® Brand UltraLight Panels be installed on the ceiling?

    Yes, Sheetrock® Brand UltraLight Panels are manufactured to meet ASTM C1396 Specifications for 1/2" gypsum wallboard and 1/2" gypsum ceiling board, and comply with the requirements of the International Building Code and International Residential Code as both regular wallboard and ceiling board.
