Item: 141090

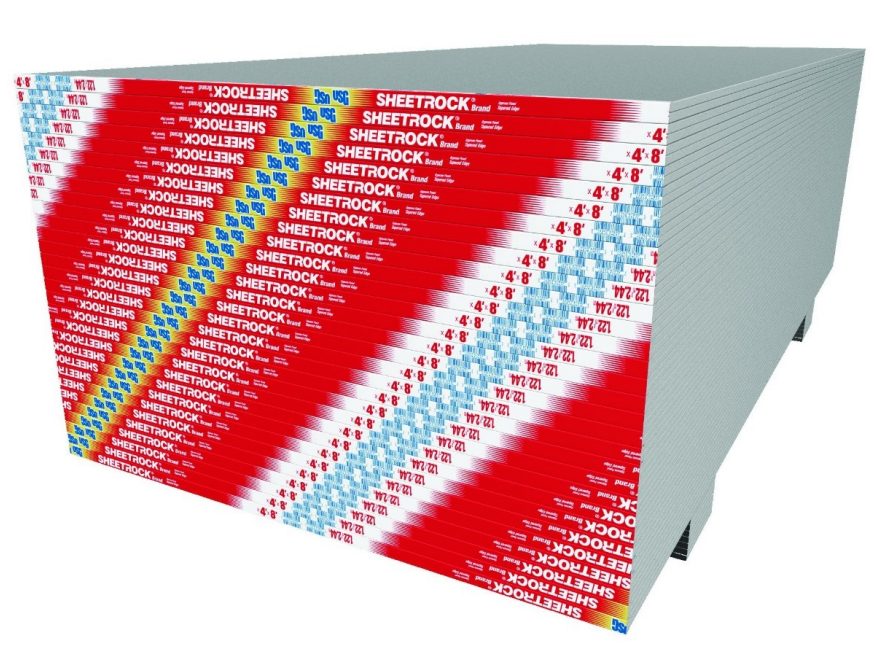

Sheetrock® Brand Gypsum Panels

1/4 in. (6.4 mm) and 3/8 in. (9.5 mm) panels for interior wall and ceiling applications

Available Product Options

Thickness: 3/8 in.

Width: 48 in.

Order a Sample

Overview

Overview

Available in 1/4 in. (6.4 mm) and 3/8 in. (9.5 mm) thicknesses, Sheetrock® Brand Gypsum Panels feature a noncombustible gypsum core that is encased in 100% recycled face and back papers that form a high strength composite design. The face paper is folded around the long edges to reinforce and protect the core, and the ends are cut square and even. The long edges of the panels are tapered, allowing joints to be reinforced and concealed with Sheetrock® Brand joint treatment systems.

Main Features

  • 1/4 in. (6.4 mm) and 3/8 in. (9.5 mm) panels for interior wall and ceiling applications
  • Resistant to cracking and warping
  • Score and snap easily
  • Comply with ASTM C1396, Standard Specification for Gypsum Board, for 1/4 in. (6.4 mm) and 3/8 in. (9.5 mm) gypsum wallboard
  • Underwriters Laboratories Inc. (UL) Classification as to surface-burning characteristics and noncombustibility
  • Achieved GREENGUARD Gold Certification and qualifies as a low VOC emitting material (meets CA 01350)
  • 1/4 in. panels are recommended as an additional layer for improving sound control in double-layer steel- and wood-stud partitions or as a face layer over old walls and ceilings
  • 3/8 in. panels are recommended in double-wall systems over wood framing, and in repair and remodeling

Applications

  • Multi-Family Residential and Condos
  • Single-Family Residential

Specifications

Submittal Sheet PDF 392.5 KB

Performance

  • Mold & Mildew Resistance No
  • Fire Resistance
    • Fire Rating Regular
  • ASTM E84
    • Flame Spread 15
    • Smoke Developed 0
    • Fire Rating Regular
  • ASTM Type ASTM C1396; ASTM C473; ASTM E136; ASTM E84
    • Flame Spread 15
    • Smoke Developed 0
    • Fire Rating Regular

Sustainability

  • GREENGUARD Certification Yes

Physical Data

  • Thickness (in.) 3/8
  • Edge Smooth Wall; Square Edge; Tapered Edge
  • Panel Size 48 in. x 6-16 ft.
  • Nominal Weight 1.4 lb./sq. ft.

Documents & Files

Data Sheets & Specifications

Data/Submittal Sheet (English) PDF 392.5 KB
Architectural Specification (English) DOCX 129.4 KB

White Papers

White Paper (English) PDF 729.3 KB

Catalogs & Brochures

System Catalog (English)

Installation & Technical Manuals

Technical Guide (English)
Installation Guide (English) PDF 7.4 MB

SDS, Certifications & Reports

SDS (English) PDF 131.9 KB
SDS (Spanish) PDF 140.7 KB

Ask a question

Our customer support team will get back to you as soon as possible.

Question Guidlines

  • Questions should relate to this product specifically.
  • For help with pricing, availability, or delivery, please call 800.874.4968 (Monday–Friday, 7am–6pm Central)
  • All questions and answers follow USG’s Terms & Conditions.
  • Your question and USG’s answer may be posted to this page in the future, but none of your personal info will be included.

 Thanks for your message. We’ll be in touch!

q & a

  • What is the maximum spacing allowed between gypsum panels over framing?

    The maximum space allowed between panels is 1/8 of an inch. Any space larger can lead to problems with joint finishing cracking.

  • Can gypsum panels be installed horizontally?

    Gypsum panels can be installed horizontally or vertically. Installing the board horizontally lessens the total amounts of joints to be taped by 25%.

  • Can I store Sheetrock® Brand Gypsum Panels outside?

    Sheetrock® Brand Gypsum Panels must be protected from exposure to excessive or continuous moisture and the elements before, during and after installation. Storing outdoors uncovered is not recommended.

  • What is the recommended fastener spacing for attaching gypsum panels to walls and ceilings in non-fire-rated assemblies?

    When nailing to wood construction the spacing is 7 inches for ceilings, and 8 inches for walls. When screwing into wood and steel framing the spacing is 12 inches on ceilings and 16 inches for walls. Refer to the relevant fire test to determine fastener type and spacing.

  • What is the maximum temperature that Sheetrock® Brand Gypsum Panels can withstand?

    Sheetrock® Brand Gypsum Panels can withstand temperatures up to 125°F.

  • What is the recommended spacing of control joints for gypsum panels for walls and ceilings?

    The maximum recommended control joint spacing for walls and ceilings without perimeter relief is 30 feet. With perimeter relief the maximum recommended control joint spacing is 50 feet.

  • What is the recommended application for fastening gypsum panels to walls and ceilings?

    When nailing to wood construction the spacing is 7 inches for ceilings, and 8 inches for walls. When screwing into wood and steel framing the spacing is 12 inches on ceilings and 16 inches for walls. Refer to the relevant fire test to determine fastener type and spacing.

  • When hanging gypsum panels on the ceiling should the board be applied parallel or perpendicular?

    Half-inch panels must be applied perpendicular and 5/8 inches can be applied either way.
