Item: 141147

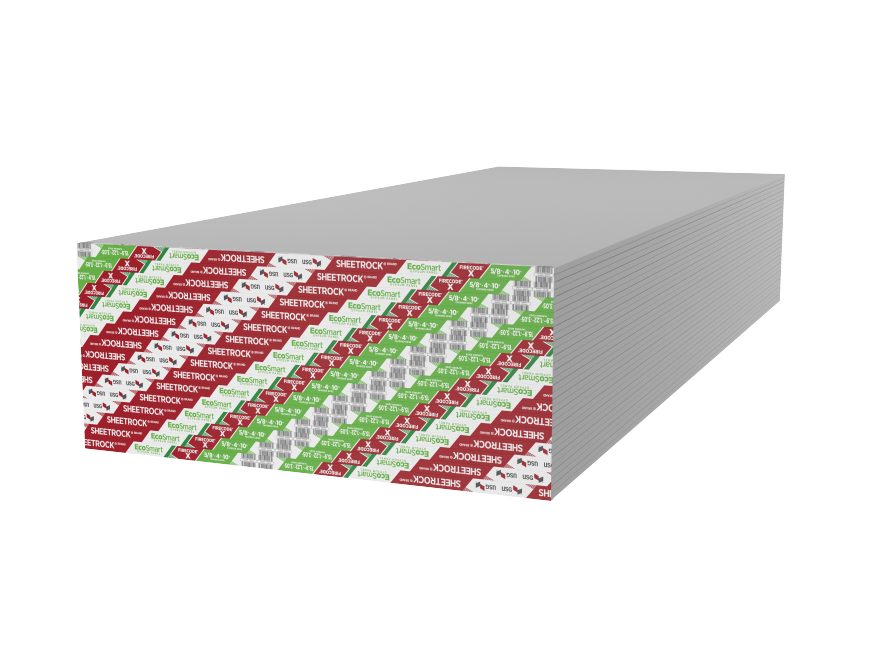

Sheetrock® Brand EcoSmart Panels Firecode® X
Sustainable and ultralightweight 5/8 in. (15.9 mm) enhanced proprietary Type X panels for interior wall and ceiling applications
Overview
Overview
Sheetrock® Brand EcoSmart Panels Firecode® X (UL Type ULIX™) are lightweight 5/8 in. (15.9 mm) enhanced proprietary Type X gypsum panels that have been formulated to achieve all of the same strength and performance characteristics as standard 5/8 in. (15.9 mm) Sheetrock® Brand Firecode® X Panels at a lower environmental impact and reduced weight. The panels feature an innovative noncombustible gypsum core that is encased in 100% recycled face and back papers that form a high strength-to-weight ratio composite design. The face paper is folded around the long edges to reinforce and protect the core, and the ends are cut square and even. The long edges of the panels are tapered, allowing joints to be reinforced and concealed with Sheetrock® Brand joint treatment systems. The panels are UL Classified for fire resistance and can be used in any UL Design in which UltraLight Innovation Type X (ULIX™) panels are listed. On the face along the long edge of each panel, the UL Type Designation is printed for easy identification by building inspectors.
Main Features
- Sustainable and ultralightweight 5/8 in. (15.9 mm) enhanced proprietary Type X panels for interior wall and ceiling applications
- Meet Architecture 2030 Challenge for Products
— Up to 21% less global warming potential (GWP)*
— Up to 22% less weight reduces transportation fuel energy by up to 20% - Living Building Challenge™ Red List Free
- Contain 100% USDA certified biobased content
- Up to 94.6% recycled content (regionally available)
- Achieved GREENGUARD Gold Certification and qualifies as a low VOC emitting material (meets CA 01350)
- USGBC® LEED® v4—may assist in achieving additional credits
- Underwriters Laboratories Inc. (UL) Classification as to fire resistance, surface burning characteristics and noncombustibility
- Comply with ASTM C1396, Standard Specification for Gypsum Board, for 5/8 in. (15.9 mm) and Type X gypsum wallboard
- Offer comparable sound, strength and sag resistance to standard 5/8 in. (15.9 mm) Type X
- Listed by UL in the most widely specified wall, column, floor- and roof-ceiling assemblies and horizontal membranes (refer to published designs for complete details)
Applications
- Administrative Offices
- Bars Restaurants and Dining Areas
- Classrooms
- Convention and Meeting Rooms
- Corridors and Hallways
- Department Stores and Boutiques
- Dormitories
- Executive Areas, Conference Areas and Board Rooms
- Galleries and Exhibit Spaces
- Garages
- Grocery Stores
- Guest Rooms and Suites
- Health and Fitness
- Laboratories, Operating Rooms and Imaging Rooms
- Lobbies and Reception Areas
- Mall Interior Spaces
- Mechanical Rooms
- Media Centers, Music Rooms and Libraries
- Multi-Family Residential and Condos
- Nurseries and Birthing Rooms
- Open Plan Offices
- Patient Rooms
- Single-Family Residential
- Stairways and Elevator Shafts
- Theatres
- Traditional Offices
- Warehouses
Specifications
Submittal Sheet
PDF 430.5 KB
Performance
- Mold & Mildew Resistance No
-
Fire Resistance
- Fire Rating Enhanced Proprietary Type X
-
ASTM E84
- Flame Spread 5
- Smoke Developed 5
- Fire Rating Enhanced Proprietary Type X
-
ASTM Type
ASTM C1396; ASTM C473; ASTM E136; ASTM E84
- Flame Spread 5
- Smoke Developed 5
- Fire Rating Enhanced Proprietary Type X
- UL Type Designations ULIX™
Sustainability
- GREENGUARD Certification Yes
- Bio Based Yes
Physical Data
- Thickness (in.) 5/8
- Edge Tapered Edge
- Panel Size 54 in. x 8-16 ft.
- Nominal Weight 1.8 lb./sq. ft.
Installation
Installation Guide PDF 7.4 MB
Documents & Files
Data Sheets & Specifications
| Data/Submittal Sheet (English) | PDF 430.5 KB |
| Architecturall Specification (English) | DOCX 76.1 KB |
White Papers
| White Paper (English) | PDF 729.3 KB |
| Sell Sheet (English) |
Catalogs & Brochures
| System Catalog (English) | PDF 14.2 MB |
| Brochure (English) | PDF 3.9 MB |
Project Profiles
| Project Profiles (English) | PDF 2.0 MB |
Design Files
| CAD and Revit Files (English) |
Installation & Technical Manuals
| Selector Guide (English) | PDF 10.6 MB |
| Installation Guide (English) | PDF 7.4 MB |
SDS, Certifications & Reports
| SDS (English) | PDF 97.0 KB |
| SDS (Spanish) | PDF 87.9 KB |
Sustainability
| Optimization Credit (English) | PDF 506.5 KB |
| HPD (English) | |
| EPD (English) | |
| Declare Label (English) | PDF 178.8 KB |
