Item: 141135

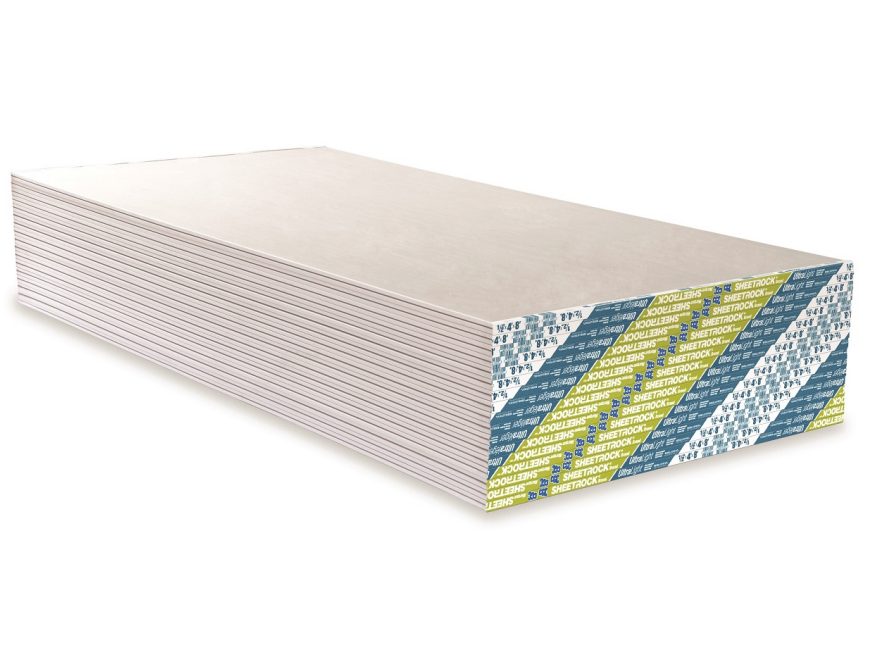

Sheetrock® Brand UltraLight Panels

The industry's first lightweight 12.7 mm (1/2 in.) gypsum panels

Available Product Options

Thickness: 1/2 in.

Width: 54 in.

Build a Submittal

Order a sample

Overview

Sheetrock® Brand UltraLight Panels are the industry's first lightweight 12.7 mm (1/2 in.) gypsum panels. The noncombustible core is encased in 100% recycled face and back papers, resulting in a high strength-to-weight ratio composite design. The natural finish face paper is folded around the long edges to reinforce and protect the core and the ends are cut square and even. The long edges of the panels are tapered, allowing joints to be reinforced and concealed with CGC Sheetrock® or Synko® Brand Interior Finishing Products.

Main Features

  • The industry's first lightweight 12.7 mm (1/2 in.) gypsum panels
  • Superior score and snap for cleaner edges and faster installation
  • Meets or exceeds ASTM C1396, Standard Specification for Gypsum Board, for 12.7 mm (1/2 in.) gypsum wallboard
  • Also available in 1372 mm (54 in.) width
  • Achieved GREENGUARD Gold Certification and qualifies as a low VOC emitting material (meets CA 01350)

Applications

  • Multi-Family Residential and Condos
  • Single-Family Residential

Specifications

Submittal Sheet PDF 323.8 KB

Performance

  • Mould & Mildew Resistance No
  • Fire Resistance
    • Fire Rating Regular
  • ASTM E84
    • Flame Spread 15
    • Smoke Developed 0
    • Fire Rating Regular
  • ASTM Type ASTM C1396; ASTM C473; ASTM E136; ASTM E84
    • Flame Spread 15
    • Smoke Developed 0
    • Fire Rating Regular

Sustainability

  • GREENGUARD Certification Yes

Physical Data

  • Thickness (in.) 1/2
  • Edge Tapered Edge
  • Panel Size 54 in. x 8-12 ft.
  • Nominal Weight 1.25 lb./sq. ft.

Documents & Files

Data/Submittal Sheets & Specifications

Data/Submittal Sheet (English) PDF 323.8 KB

Catalogs & Brochures

Brochure (English)

Installation & Technical Manuals

Installation Guide (English)

SDS, Certifications & Reports

SDS (English) PDF 28.7 KB
SDS (French) PDF 30.2 KB

Sustainability

Product Attribute Report (English) PDF 789.8 KB
