Item: 221710

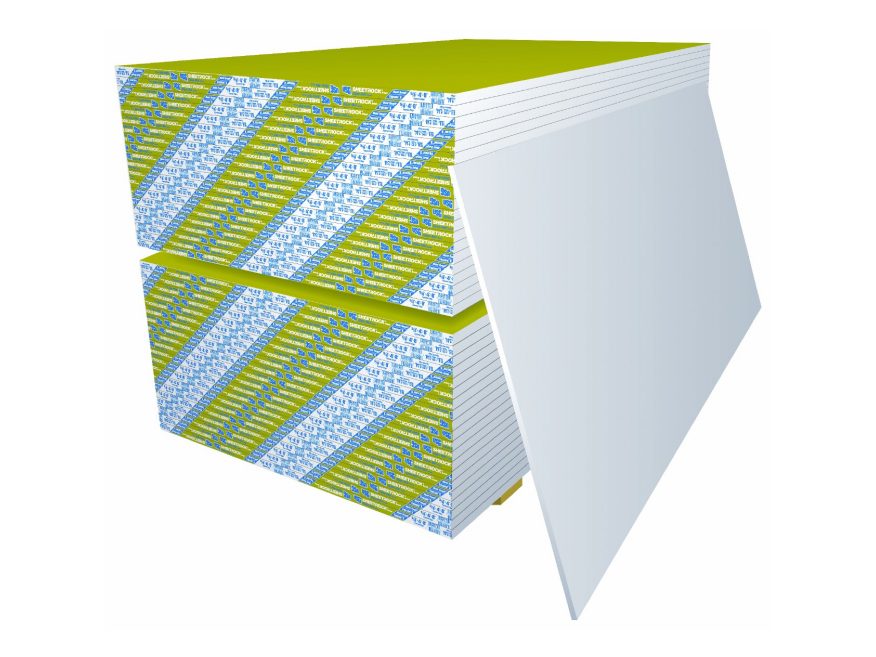

Sheetrock® Brand Glass-Mat Panels Mold Tough® Firecode® X

15.9 mm (5/8 in.) Type X glass-mat panels with moisture and mould resistance for wall and ceiling applications

Available Product Options

Thickness: 5/8 in.

Width: 48 in.

Order a sample

Overview

Overview

Sheetrock® Brand Glass-Mat Panels Tough® Firecode® X (UL Type SGX) are 15.9 mm (5/8 in.) Type X gypsum panels that feature a noncombustible, moisture- and mould-resistant gypsum core that is encased in a green coloured moisture- and mould-resistant fiberglass face and back that sheds water. When tested in accordance with ASTM D3273, Standard Test Method for Resistance to Growth of Mold on the Surface of Interior Coatings in an Environmental Chamber, the panels score a "10" (highest). The fiberglass face is folded around the long edges to protect the core, and the ends are cut square and even. The long edges of the panels are tapered, allowing joints to be reinforced and concealed with Sheetrock® or Synko® Brand joint treatment systems. The panels are UL Classified for fire resistance and can be used in any UL/ULC Design in which Type SGX panels are listed.

Main Features

  • 15.9 mm (5/8 in.) Type X glass-mat panels with moisture and mould resistance for wall and ceiling applications
  • Feature a noncombustible, moisture- and mould-resistant gypsum core encased in a moisture- and mould-resistant fiberglass face and back.
  • Suitable for use in pre dry-in (fast track or pre-rock) and similar applications of panels before the building envelope is fully enclosed
  • Quick score-and-snap, no sawing or special tools required
  • Comply with ASTM C1658, Standard Specification for Glass Mat Gypsum Panels, for 15.9 mm (5/8 in.), Type X and glass-mat water-resistant gypsum panel
  • Score a "10" when tested in accordance with ASTM D3273, Standard Test Method for Resistance to Growth of Mold on the Surface of Interior Coatings in an Environmental Chamber
  • Can be exposed to weather for up to 12 months and are guaranteed three years against manufacturing defects
  • UL/ULC Classification as to fire resistance, surface burning characteristics and noncombustibility
  • Achieved GREENGUARD Gold Certification and qualifies as a low VOC emitting material (meets CA 01350)

Specifications

Submittal Sheet PDF 578.1 KB

Performance

  • Mould & Mildew Resistance Yes
  • Fire Resistance
    • Fire Rating Type X
  • ASTM E84
    • Flame Spread 0
    • Smoke Developed 0
    • Fire Rating Type X
  • ASTM Type ASTM C1658; ASTM C473; ASTM D3273; ASTM E136; ASTM E84
    • Flame Spread 0
    • Smoke Developed 0
    • Fire Rating Type X
  • UL Type Designations SGX (5/8 in. only)

Sustainability

  • GREENGUARD Certification Yes

Physical Data

  • Thickness (in.) 5/8
  • Edge Tapered Edge
  • Panel Size 48 in. x 8-12 ft.
  • Nominal Weight 2.2 lb./sq. ft.

Warranty

  • Warranty

Documents & Files

Data Sheets & Specifications

Data/Submittal Sheet (English) PDF 578.1 KB

Catalogs & Brochures

Brochure (English)

Installation & Technical Manuals

Technical Guide (English) PDF 115.3 KB
Installation Guide (English) PDF 76.1 KB

SDS, Certifications & Reports

SDS (English) PDF 29.6 KB
SDS (French) PDF 32.2 KB

Warranties

Warranties (English) PDF 156.2 KB
