USG Clean Room™ Acoustical Panels BillionToOne in Menlo Park CA, Architect: DES, Architects Photo: © Kyle Jeffers

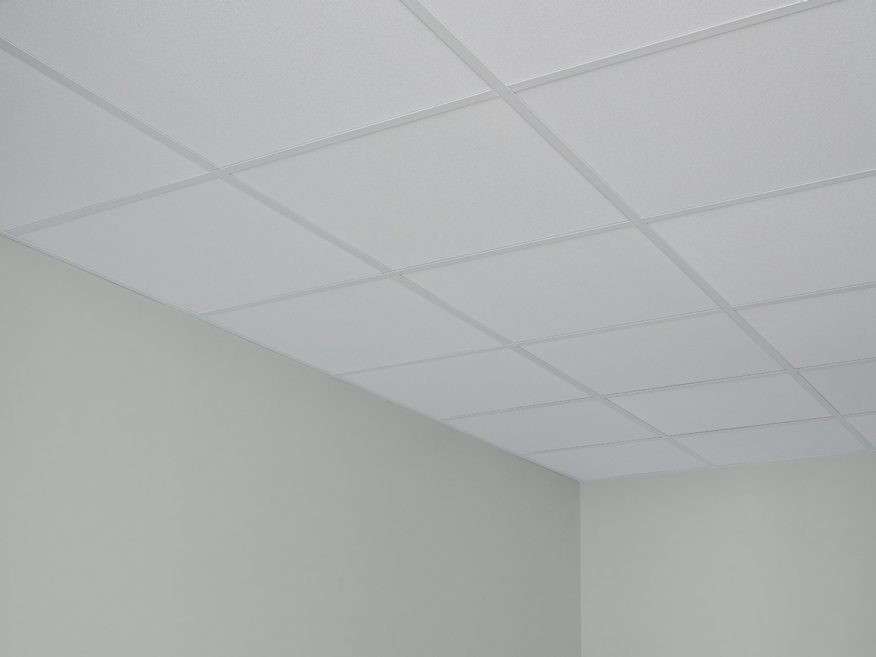

USG Clean Room™ Class 10M–100M Acoustical Panels with ClimaPlus™ Performance, and USG Donn® Brand DXLA™ Acoustical Suspension System

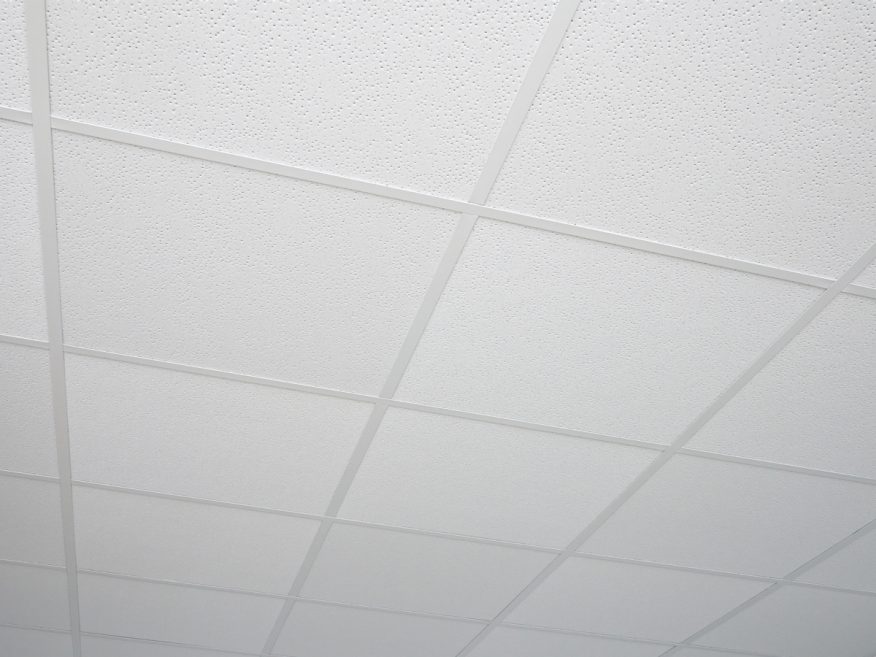

USG Clean Room™ Class 10M–100M Acoustical Panels with ClimaPlus™ Performance

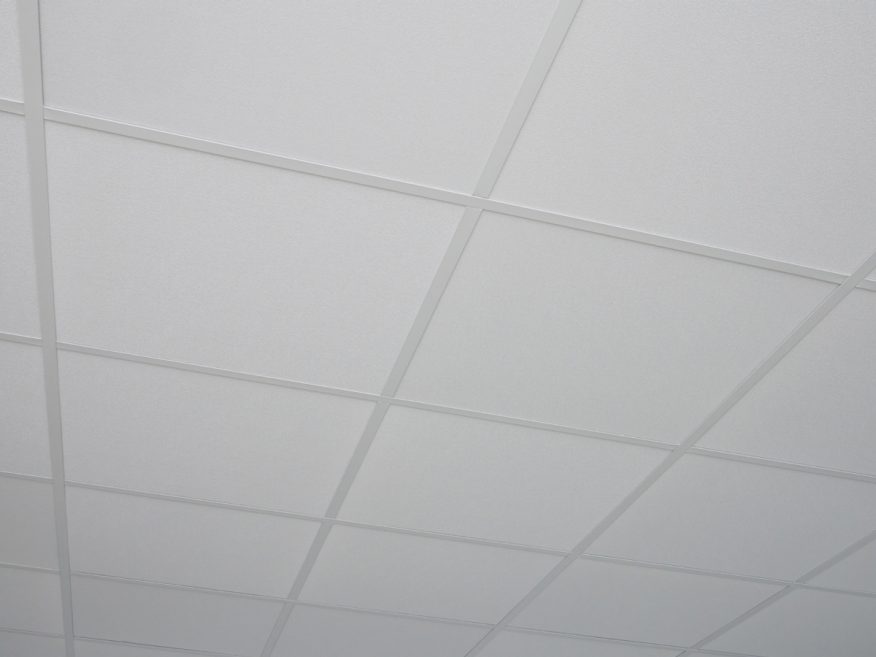

USG Clean Room™ Class 10M–100M Acoustical Panels with ClimaPlus™ Performance, and USG Donn® Brand DXLA™ Acoustical Suspension System

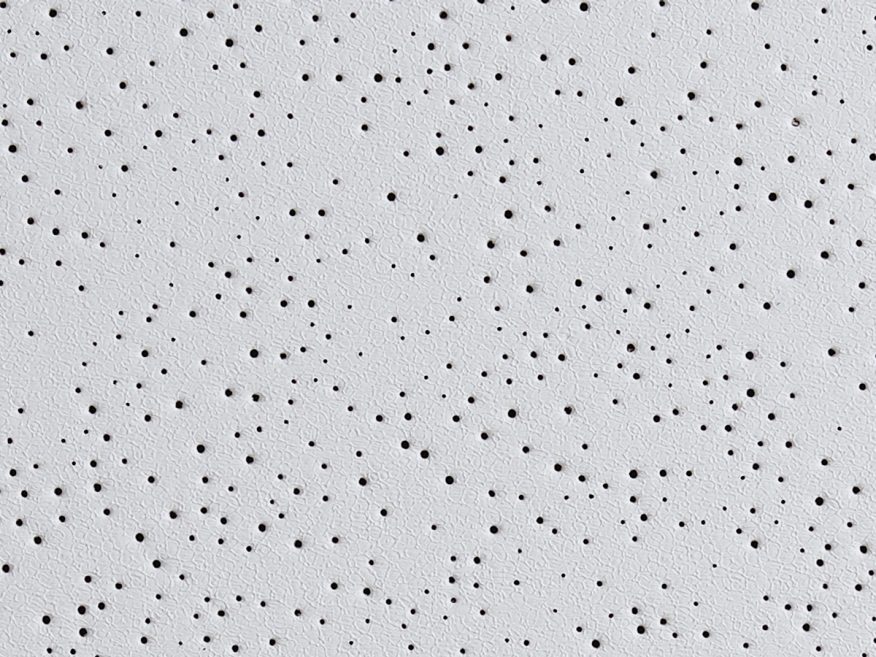

USG Clean Room™ Class 100 Acoustical Panels with ClimaPlus™ Performance, and USG Donn® Brand DXLA™ Acoustical Suspension System

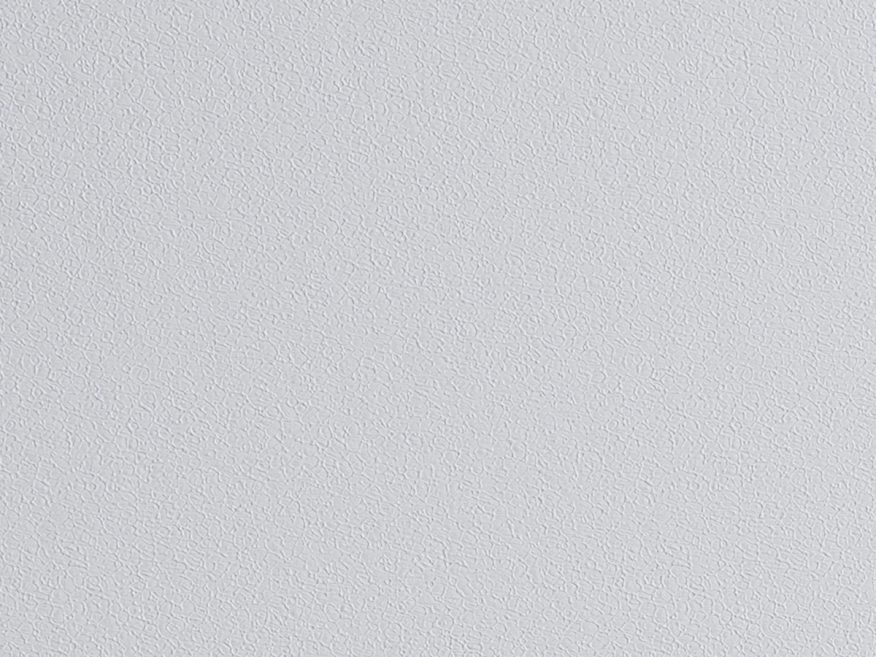

USG Clean Room™ Class 100 Acoustical Panels with ClimaPlus™ Performance

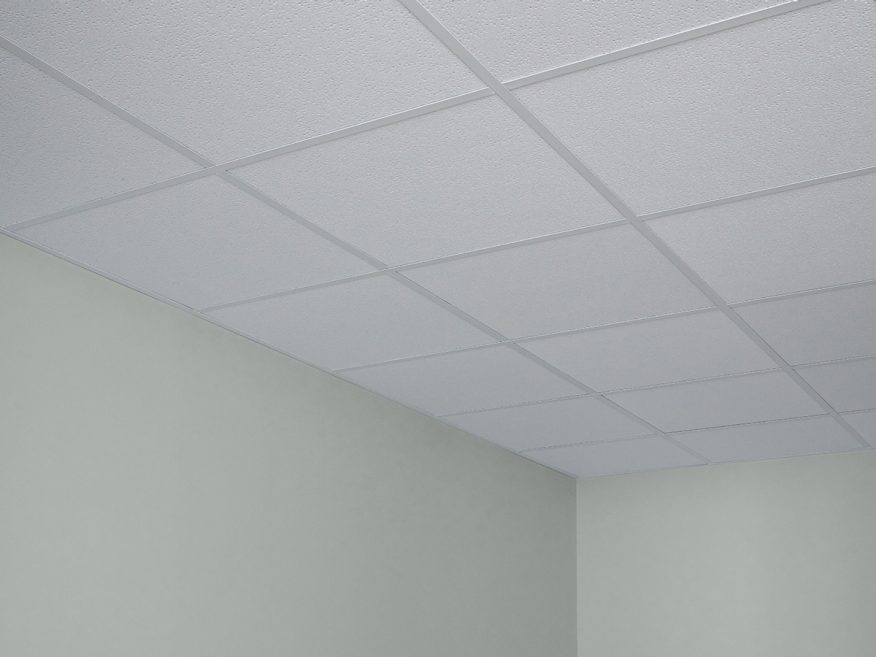

USG Clean Room™ Class 100 Acoustical Panels with ClimaPlus™ Performance, and USG Donn® Brand DXLA™ Acoustical Suspension System
Item: 56090

Clean Room™ Acoustical Panels

Smooth-textured panels with an embossed, vinyl-laminated face with sealed back and edges for use in clean rooms.

Explore Sizes & Options

Item: 56090

Acoustics: 0.55 NRC / 35 CAC

Size: 2 ft. x 4 ft.

Edge: Square Edge

Color: White

Standard Colors

Order a Sample

Overview

Overview

With ClimaPlus™ Performance
Designed for clean-room environments, these Class 100/ISO Class 5 and Class 10M-100M panels are sag-resistant and adhere to federal standards. Clean Room™ Acoustical Ceiling Panels are perfect for 100-rated/ISO Class 5 to 10M-100M- rated clean rooms, computer and control rooms, and sterile rooms. Non-perforated Clean Room panels are ideal for kitchens/food prep areas (Class 100/ISO Class 5 only). The are designed with Firecode® for use in fire-rated assemblies and are available with High Recycled Content (HRC).

*Panels meet USDA/FSIS requirements for food processing areas.

Sound Absorption

0.55 NRC

Sound Attenuation

35 CAC

Light Reflectance

Up To 0.79

Recycled Content

55 %

Main Features

Clean Room™ Acoustical Ceiling Panels are not only designed to meet Federal Standard 209E, "Clean Room and Work Station Requirements Controlled Environments," but their design ensures that they are sag-resistant and easy to clean. They are the perfect choice for Clean Room environments.
  • Clean Room™ Class 100/ISO Class 5 and Class 10M–100M panels have an embossed, vinyl-laminated face with sealed back and edges for use in Class 100/ISO Class 5 or 10M–100M clean rooms
  • USDA Certified Biobased Product
  • Firecode® product designed to meet life-safety codes
  • ClimaPlus™ 30-year lifetime system warranty against visible sag
  • Available with High Recycled Content (HRC)
  • Low-emitting product meets CA Specification 01350, California Department of Health Services Standard Practice for the testing of VOC emissions

Applications

  • Kitchens and Food Prep Areas
  • Laboratories, Operating Rooms and Imaging Rooms
  • Nurseries and Birthing Rooms
  • Patient Rooms
  • Restrooms, Utility Rooms and Loading Docks

Specifications

Data Sheet PDF 1.3 MB

Performance

  • Sound Absorption (NRC)
    NRC stands for Noise Reduction Coefficient. It is a measure of how much sound is absorbed by a given material. It is listed as a decimal and relates to percentage sound absorbed.
    0.55
  • Sound Attenuation (CAC) 35
  • Light Reflectance 0.79
  • Mold & Mildew Resistance No
  • Fire Resistance
    • Fire Rating Firecode®
  • ASTM E1264
    • astm-e1264-class X: Mineral base with plastic or aluminum membrane-faced overlay, or both, C: Perforated, small holes; G: Smooth; I: Embossed,
  • ASTM E84
    • Flame Spread 25 or less
    • Smoke Developed 50 or less
    • Fire Rating Firecode®

Sustainability

  • GREENGUARD Certification Yes
  • Recycled Content 55%
  • Bio Based Yes

Physical Data

  • Thickness (in.) 5/8
  • Color White
  • Edge Square Edge
  • Panel Size 2 ft. x 4 ft.
  • Material Mineral Fiber

Installation

Installation Guide

play

USG Ceilings Portfolio Series: Episode 1 - Installation & Edge Style

play

USG Ceilings Portfolio Series: Episode 2 - Performance Features

play

USG Ceilings Portfolio Series: Episode 3 - USG Panel Types

Ask a question

Our customer support team will get back to you as soon as possible.

Question Guidlines

  • Questions should relate to this product specifically.
  • For help with pricing, availability, or delivery, please call 800.874.4968 (Monday–Friday, 7am–6pm Central)
  • All questions and answers follow USG’s Terms & Conditions.
  • Your question and USG’s answer may be posted to this page in the future, but none of your personal info will be included.

 Thanks for your message. We’ll be in touch!

q & a

  • Which USG Ceiling panel is best to use in a clean room application?

    USG makes three Clean Room® panels for use in these applications. USG Clean Room® Class 100/ISO Class 5, USG Clean Room® 10M-100M and USG Sheetrock® Brand Lay-In Ceiling Panel Clean Room™ are best for a clean room application.

  • Why is LR important?

    When the proper type of lighting fixture is used with a high LR ceiling, there can be savings in both initial construction costs as well as long-term energy costs. The concept is to use the ceiling to reflect light back into the occupied space.

  • What does ClimaPlus™ mean?

    USG’s line of products with ClimaPlus™ Performance have additional resistance to temperature and humidity. This in turn provides additional resistance to sagging and warping of the ceiling panels.

  • What does LR stand for?

    LR stands for light reflectance. It is a measure of the percentage of light which is reflected off of a given panel surface. Typically, the whiter and smoother the ceiling panel, the higher the LR value.

  • What is NRC?

    NRC stands for Noise Reduction Coefficient. It is a measure of how much sound is absorbed by a given material. It is listed as a decimal and relates to percentage sound absorbed.

  • When referring to ceiling panels, what is the meaning of type, form and pattern?

    These categories refer to ASTM Test E 1264.
    Type refers to the base material of the panel.
    Form refers to the manufacturing process of the panel.
    Pattern refers to the type of texture or pattern in the panel.

  • What is the difference between Class A and Firecode® branded materials?

    Class A signifies that a panel attained a flame spread index of 25 or less (based on 100 for untreated red oak) when tested in accordance with the Standard ASTM E 84. The Firecode® brand signifies that the panel has been classified as a protective membrane in a floor-ceiling or roof-ceiling assembly in accordance with the Standard ASTM E 119. All Firecode® protective membranes offered by USG have attained a Class A rating.

  • Does the ceiling tile and grid system alone provide a fire-rated assembly?

    No. The ceiling system achieves a time rating based on the entire assembly which includes roof deck or floor deck assembly.

  • When hold-down clips are required, how much space should I leave between the clips, on the grid?

    The recommendation for hold-down clip spacing is two clips per panel, centered on the grid, between the panels.

  • How many acoustical panel types does USG offer?

    USG offers four major types of acoustical panels as well as Gypsum based panels for special applications. They are: Wet-Felted, Cast, "X" Technology and Fiberglass.

  • How far in advance can I order ceiling panel before installation?

    Storage time of materials at the job site should be as short as possible, and environmental conditions should be as near as possible to those specified for occupancy. Excess humidity during storage can cause expansion of material and possible warp, sag, or poor fit after installation. Chemical changes in the mat and/or coatings can be aggravated by excess humidity and cause discoloration during storage, even in unopened cartons. Cartons should be removed from pallets and stringers to prevent distortion of material. Long-term (6-12 months) storage under uncontrolled environmental conditions should be avoided.

  • Why is CAC important?

    CAC is important when there is a need for privacy between spaces.

  • What is CAC?

    CAC stands for Ceiling Attenuation Class. It is the measure of the blocking of sound through one ceiling plane, into the plenum above, and back through the other ceiling plane to an adjacent space.

  • Why would I use one ceiling panel type over another?

    The different panel substrates provide panels with unique characteristics. The use of the different panels will vary based on specific needs and application.
