Orion™ 75 Acoustical Panels

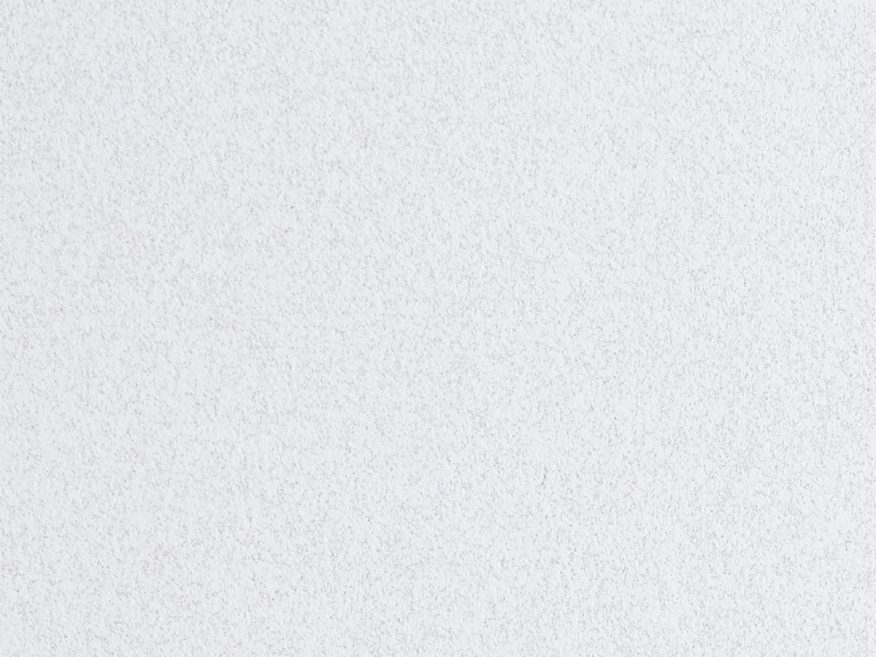

Fine-textured panels with an NRC of 0.75 provides excellent noise reduction, a high light reflective finish and a non-directional monolithic visual.
Explore Sizes & Options
Fineline Bevel
Shadowline Tapered
Square EdgeStandard Colors
Overview
Overview

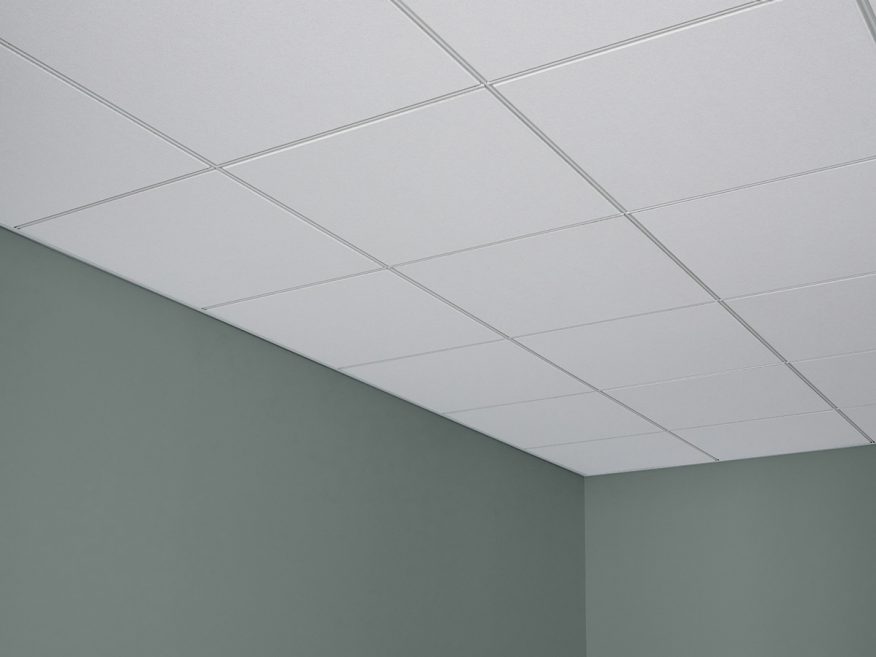

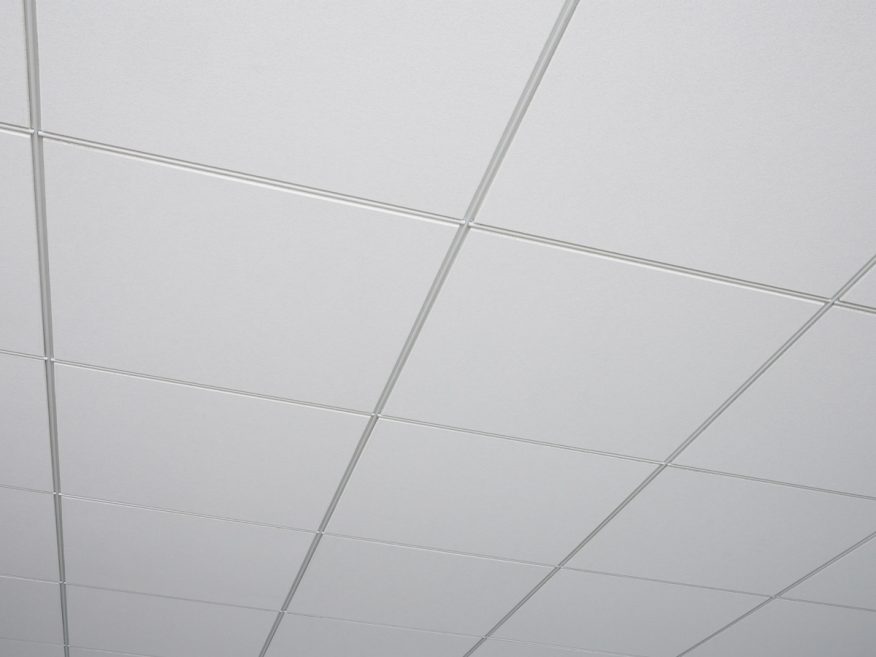

With excellent noise reduction, a high light reflective finish and a non-directional monolithic visual, these products are a great solution to many ceiling needs. Orion™ 75 Acoustical Ceiling Panels are built with a non-directional pattern to ensure a consistent appearance. Specially designed with ClimaPlus™ performance to withstand mold and mildew, these sag resistant, noise reducing panels are optimal for schools, hotels, lobbies, general office and conference areas.
Sound Absorption
0.75 NRC
Sound Attenuation
24 CAC
Light Reflectance
Up To 0.87
Recycled Content
67 %
Main Features
- High light -reflective finish (LR - .87) reduces light fixtures and energy use.
- Washable and scrubbable finish
- Impact and scratch resistant
- Coordinates visually with Halcyon™ Acoustical Panels for open- or closed-plan applications
- Nondirectional, monolithic visual reduces installation time and waste.
- ClimaPlus™ 30-year lifetime system warranty against visible sag, mold, and mildew.
Specifications
Performance
- Sound Absorption (NRC) 0.75
- Sound Attenuation (CAC) 24
- Light Reflectance 0.87
- Mold & Mildew Resistance Yes
-
Fire Resistance
- Fire Rating Class A
-
ASTM E1264
- astm-e1264-class IV: Mineral base with membrane-faced overlay, E: Lightly textured; G: Smooth, Form 1: Nodular; Form 2: Water-Felted
-
ASTM E84
- Flame Spread 25 or less
- Smoke Developed 50 or less
- Fire Rating Class A
Sustainability
- GREENGUARD Certification Yes
- Recycled Content 67%
- VOC Emissions Low-emitting
Physical Data
- Thickness (in.) 5/8
- Color White
- Edge Fineline Bevel
- Panel Size 2 ft. x 4 ft.
- Material Mineral Fiber
Warranty
-
Warranty
USG Ceilings Commercial Application Warranty (English) - SC2102PDF 148 KB
Installation
Installation Guide PDF 822.1 KB
Documents & Files
Data Sheets & Specifications
| Data/Submittal Sheet (English) | PDF 878.3 KB |
| Architecturall Specification (English) | DOCX 108.4 KB |
Catalogs & Brochures
| System Catalog (English) | PDF 46.7 MB |
Installation & Technical Manuals
| Technical Guide (English) | PDF 1.0 MB |
| Installation Guide (English) | PDF 822.1 KB |
SDS, Certifications & Reports
| SDS (English) | PDF 155.7 KB |
Warranties
| Warranties (English) | PDF 147.7 KB |
