Item: 143157

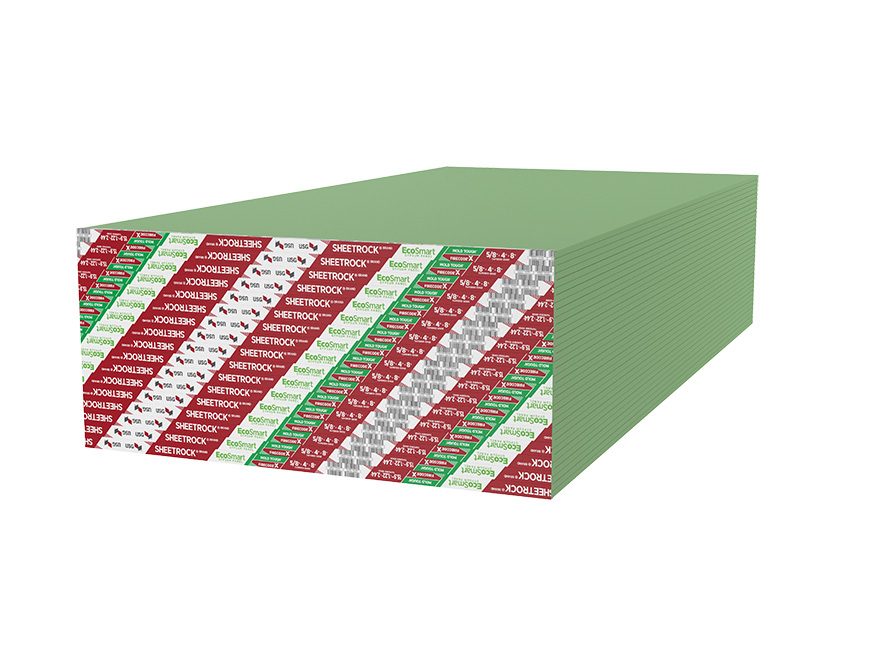

Sheetrock® Brand EcoSmart Panels Mold Tough® Firecode® X
Sustainable and ultralightweight 5/8 in. (15.9 mm) enhanced proprietary Type X panels with moisture and mold resistance for wall and ceiling applications
Overview
Overview
Sheetrock® Brand EcoSmart Panels Mold Tough® Firecode® X (UL Type ULIX™) represent a revolution in wallboard manufacturing, reducing the use of natural resources and impact on the environment. These lightweight 5/8 in. (15.9 mm) enhanced proprietary Type X gypsum panels feature a noncombustible, moisture-resistant gypsum core that is encased in moisture- and mold-resistant, 100% recycled green face and brown back papers. When tested in accordance with ASTM D3273, Standard Test Method for Resistance to Growth of Mold on the Surface of Interior Coatings in an Environmental Chamber, the panels meet or exceed ASTM C1396 specifications. The face paper is folded around the long edges to reinforce and protect the core, and the ends are cut square and even. The long edges of the panels are tapered, allowing joints to be reinforced and concealed with Sheetrock® Brand joint treatment systems. The panels are UL Classified for fire resistance and can be used in any UL Design in which UltraLight Innovation Type X (ULIX™) panels are listed. On the face along the long edge of each panel, the UL Type Designation is printed for easy identification by building inspectors.
Main Features
- The lightest 5/8 in. (15.9 mm) moisture- and mold-resistant Type X gypsum panel available
- Feature a noncombustible, moisture-resistant gypsum core encased in moisture- and mold-resistant, 100% recycled green face and brown back papers
- Meet Architecture 2030 Challenge for Products
— Up to 11% less global warming potential (GWP)*
— Up to 15% less water used in the manufacturing process* - Living Building Challenge™ Red List Free
- Contains 100% USDA certified biobased content
- Achieved GREENGUARD Gold Certification and qualifies as a low VOC emitting material (meets CA 01350)
- Comply with ASTM C1396, Standard Specification for Gypsum Board, for 5/8 in. (15.9 mm), Type X, water-resistant gypsum wallboard and exterior gypsum soffit board
- When tested in accordance with ASTM D3273, Standard Test Method for Resistance to Growth of Mold on the Surface of Interior Coatings in an Environmental Chamber, the panels meet or exceed ASTM C1396 specifications
- Underwriters Laboratories Inc. (UL) Classification as to fire resistance, surface-burning characteristics and noncombustibility
- Listed by UL in the most widely specified wall, column, floor- and roof-ceiling assemblies and horizontal membranes (refer to specific UL Designs for complete details)
Applications
- Administrative Offices
- Bars Restaurants and Dining Areas
- Cafeterias
- Classrooms
- Convention and Meeting Rooms
- Corridors and Hallways
- Department Stores and Boutiques
- Dormitories
- Executive Areas, Conference Areas and Board Rooms
- Exterior Soffits and Indoor Parking Garage
- Galleries and Exhibit Spaces
- Garages
- Grocery Stores
- Guest Rooms and Suites
- Health and Fitness
- Kitchens and Food Prep Areas
- Laboratories, Operating Rooms and Imaging Rooms
- Lobbies and Reception Areas
- Mall Interior Spaces
- Mechanical Rooms
- Media Centers, Music Rooms and Libraries
- Multi-Family Residential and Condos
- Nurseries and Birthing Rooms
- Open Plan Offices
- Patient Rooms
- Restrooms, Utility Rooms and Loading Docks
- Single-Family Residential
- Stairways and Elevator Shafts
- Traditional Offices
- Warehouses
Specifications
Submittal Sheet
PDF 418.8 KB
Performance
- Mold & Mildew Resistance Yes
-
Fire Resistance
- Fire Rating Enhanced Proprietary Type X
-
ASTM E84
- Flame Spread 5
- Smoke Developed 5
- Fire Rating Enhanced Proprietary Type X
-
ASTM Type
ASTM C1396; ASTM C473; ASTM D3273; ASTM E136; ASTM E84
- Flame Spread 5
- Smoke Developed 5
- Fire Rating Enhanced Proprietary Type X
- UL Type Designations ULIX™
Sustainability
- GREENGUARD Certification Yes
- Bio Based Yes
Physical Data
- Thickness (in.) 5/8
- Edge Tapered Edge
- Panel Size 48 in. x 6-16 ft.
- Nominal Weight 1.85 lb./sq. ft.
Installation
Installation Guide PDF 7.4 MB
Documents & Files
Data Sheets & Specifications
| Data/Submittal Sheet (English) | PDF 418.8 KB |
| Architecturall Specification (English) | DOCX 134.5 KB |
White Papers
| White Paper (English) | PDF 729.3 KB |
| Sell Sheet (English) |
Catalogs & Brochures
| System Catalog (English) | PDF 14.2 MB |
| Brochure (English) | PDF 3.9 MB |
Project Profiles
| Project Profiles (English) | PDF 2.0 MB |
Design Files
| CAD and Revit Files (English) |
Installation & Technical Manuals
| Selector Guide (English) | PDF 10.6 MB |
| Installation Guide (English) | PDF 7.4 MB |
SDS, Certifications & Reports
| SDS (English) | PDF 123.6 KB |
| SDS (Spanish) | PDF 125.1 KB |
