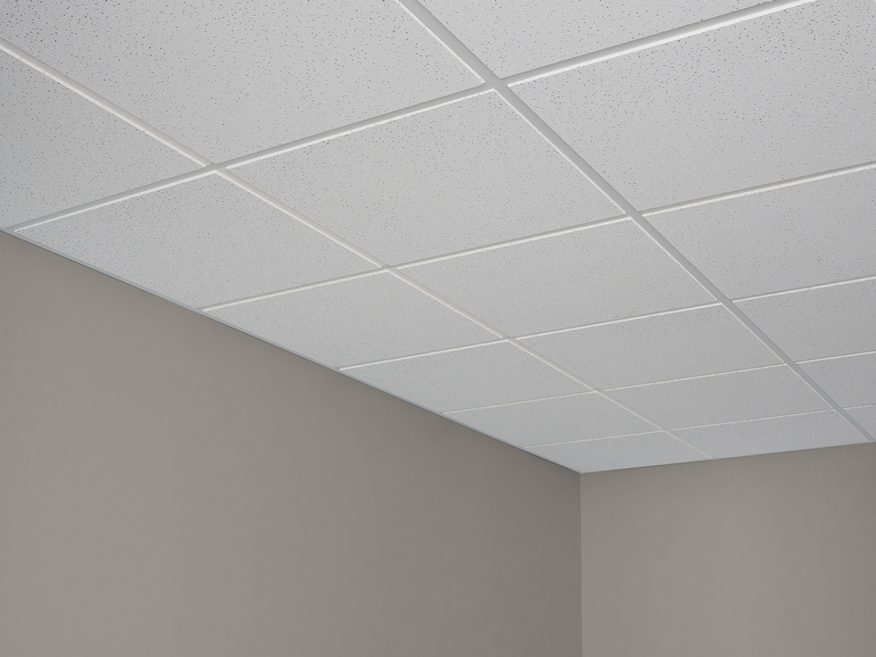

Radar™ Illusion™ Acoustical Ceiling Panels
Radar™ Illusion™ Ceiling Panels resist sagging and install quickly and easily. Mildew and mold resistant with good light reflectance, these panels are an optimal choice for those looking to provide the illusion of a smaller scaled ceiling system.
Key Documents & Design Files
Explore Sizes & Options
Interline Tapered
Shadowline TaperedStandard Colors
Advantage Colors
Overview
Overview
Sound Absorption
0.55 NRC
Sound Attenuation
35 CAC
Light Reflectance
Up To 0.84
Recycled Content
25-26 %
Main Features
Radar™ Illusion™ Ceiling Panels are sag, mold and mildew resistant. These clean, aesthetically pleasing panels are available in a variety of sizes, allowing for a more customizable appearance.- Non-directional pattern offers fast, efficientinstallation

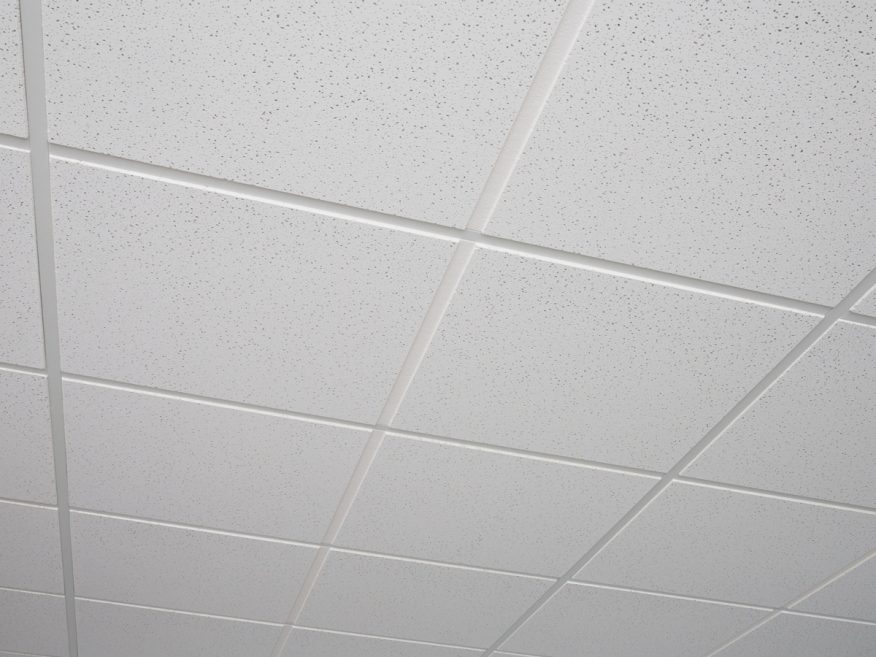

- Face scores create illusion of a smaller-scaledceiling system
- ClimaPlus™ 30-year lifetime system warranty againstvisible sag, mold and mildew
- Noise Reduction Coefficient (NRC): .50 - .55
- Ceiling Attentuation Class (CAC): .35
- Light Reflectance (LR): .84
- Low-emitting product meets CA Specification 01350, California Department of Health Services Standard Practice for the testing of VOC emissions
Applications
- Administrative Offices
- Cafeterias
- Classrooms
- Corridors and Hallways
- Department Stores and Boutiques
- Grocery Stores
- Health and Fitness
- Mechanical Rooms
- Patient Rooms
- Restrooms, Utility Rooms and Loading Docks
- Stairways and Elevator Shafts
- Warehouses
Specifications
Performance
- Sound Absorption (NRC) 0.55
- Sound Attenuation (CAC) 35
- Light Reflectance 0.84
- Mould & Mildew Resistance Yes
-
Fire Resistance
- Fire Rating Class A
-
ASTM E1264

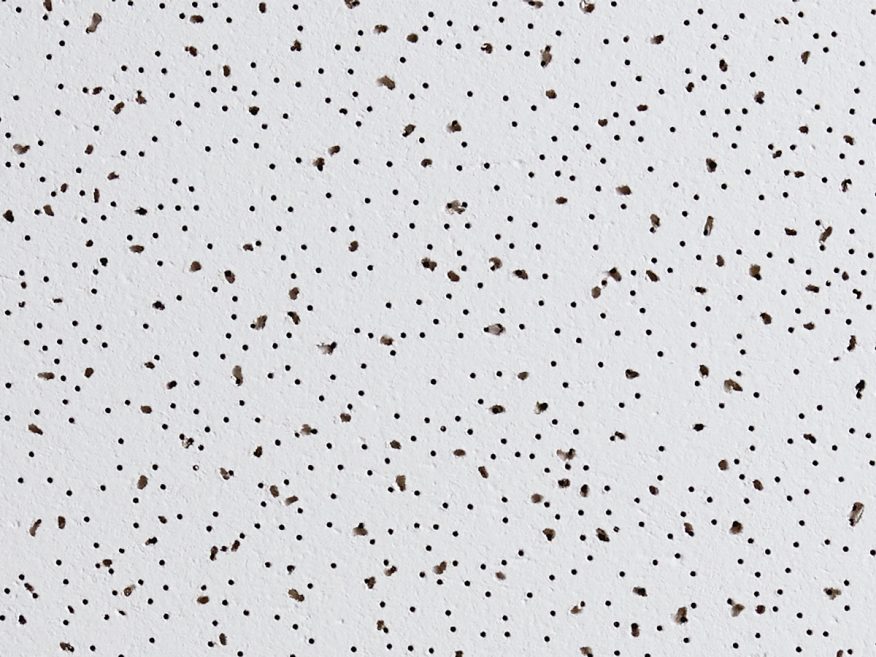

- astm-e1264-class III: Mineral base with painted finish, C: Perforated, small holes; D: Fissured; E: Lightly textured; K: Surface scored, Form 2: Water-Felted
-
ASTM E84
- Flame Spread 25 or less
- Smoke Developed 50 or less
- Fire Rating Class A
Sustainability
- GREENGUARD Certification Yes
- Recycled Content 25-26%
- VOC Emissions Low-emitting
Physical Data
- Thickness (in.) 3/4
- Color Manila 246
- Edge Shadowline Tapered
- Panel Size 2 ft. x 4 ft.
Warranty
-
Warranty
USG Ceilings Commercial Application Warranty (English) - SC2102PDF 148 KB
Installation
Installation Guide PDF 822.1 KB
Documents & Files
Data Sheets & Specifications
| Data/Submittal Sheet (English) | PDF 963.1 KB |
Catalogs & Brochures
| System Catalog (English) | PDF 47.2 MB |
| Brochure (English) | PDF 193.1 KB |
Design Files
| CAD and Revit Files (English) |
Installation & Technical Manuals
| Technical Guide (English) | PDF 1.0 MB |
| Installation Guide (English) | PDF 822.1 KB |
SDS, Certifications & Reports
| SDS (English) | |
| SDS (French) | PDF 188.2 KB |
Warranties
| Warranties (English) | PDF 147.7 KB |
Sustainability
| HPD (English) |
| Greenguard Certificate (English) |
| EPD (English) |
